Jamco Products YB248U500 Stainless Steel Transfer Cart
Jamco Products YB248U500 Stainless Steel Transfer Cart

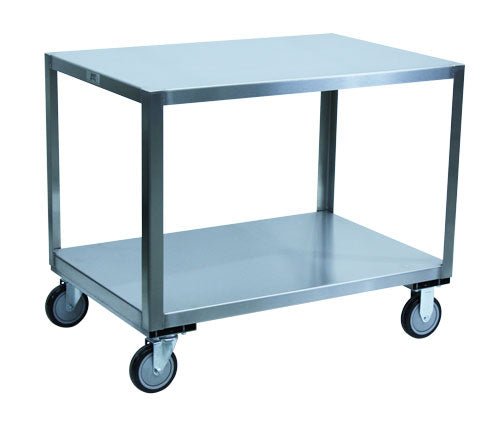

The Jamco Products YB248U500 is an all-welded stainless steel transfer cart (mobile table) with 2 premium polished shelves and lips-down configuration for easy loading and unloading. Built with 16-gauge stainless shelves, 1-1/2" stainless corner angles, and stainless caster mounts with twin caster hole pattern, the YB248U500 rides on bolt-on 5" x 1-1/4" urethane casters with steel rigs (2 rigid, 2 swivel). At 48" long x 24" wide with a 30" top shelf height and 20" clearance between shelves, it provides a large flat transfer surface for hospital and food service transport applications. Optional front leg "L" bumpers and all-swivel caster configuration available.
Sold individually.
Specifications
| Property | Value |
|---|---|
| Model | YB248U500 |
| Dimensions (L x W x H) | 48" x 24" x 30" |
| Capacity | 1,200 lbs (evenly distributed) |
| Number of Shelves | 2 |
| Shelf Material | 16-gauge stainless steel, premium polished |
| Shelf Lips | 1-1/2" lips down (flush top surface for easy loading) |
| Corner Angles | 1-1/2" stainless |
| Top Shelf Height | 30" |
| Clearance Between Shelves | 20" |
| Casters | 5" x 1-1/4" urethane with steel rigs (U500) — 2 rigid, 2 swivel; bolt-on |
| Caster Mounts | Stainless, twin caster hole pattern |
| Options | All-swivel casters (AS); front leg "L" bumpers (LB) |
| Construction | All-welded stainless (except casters) |
| Weight | 80 lbs |
| Application | Hospital, food service, industrial transfer and transport |
Frequently Asked Questions
How does the YB248 differ from the YM236 transfer cart?
The YB248 is longer (48" vs. 36") and uses smaller 5" casters vs. 6" on the YM236, with a lower 1,200 lb capacity vs. 1,800 lb. The YM236 is the heavier-duty option for larger loads. Both feature lips-down flush shelves and twin caster hole pattern mounts. Choose the YB248 for longer transfer surfaces with lighter loads, and the YM236 for heavier-duty applications.
What are the front leg "L" bumpers (LB option)?
The optional front leg "L" bumpers attach to the front legs of the cart to protect walls, doorframes, and equipment from impact during maneuvering — particularly useful in hospital corridors and tight spaces where the cart is frequently pushed through doorways.
Why are lips-down shelves used on transfer carts?
Lips-down creates a completely flush top surface, allowing items to be slid on and off from any direction without catching on a retention lip — ideal for transferring trays, sheet pans, equipment, or supplies between workstations or loading docks.
Can stainless caster rigs be specified?
The standard U500 casters use steel rigs. For full stainless compliance in sterile or corrosive environments, contact us to specify stainless rigs. The twin caster hole pattern on the mounts accommodates multiple caster configurations without modification.
