Jamco Products TL236U503GP Mobile Rack
Jamco Products TL236U503GP Mobile Rack

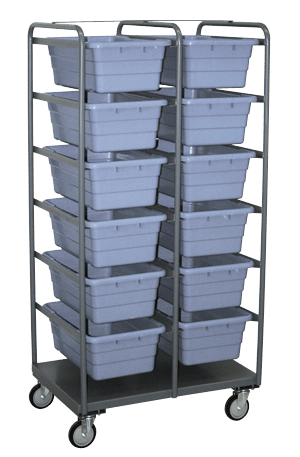

The Jamco Products TL236U503GP is an all-welded mobile tote truck rack with 12 gray cross-stack tubs, designed for general-purpose storage and transport of parts, supplies, and materials in warehouse, manufacturing, and distribution environments. Built with a 12-gauge flush bottom pan, 12-gauge caster mounts, and 1" tubular frame with 1-1/4" x 1/8" thick angle support rails, the TL236U503GP rides on bolt-on 5" x 1-1/4" urethane all-swivel casters for omnidirectional maneuvering. Includes 12 gray totes (16"W x 25-1/8"D x 8-1/2"H each) with 10" clearance between tote holders at 72" overall height. 100 lb per tote capacity, 1,200 lb total.
Sold individually. 12 gray totes included.
Specifications
| Property | Value |
|---|---|
| Model | TL236U503GP |
| Dimensions (W x D x H) | 36" x 26" x 72" |
| Capacity | 1,200 lbs total | 100 lbs per tote |
| Number of Totes | 12 (included) |
| Tote Dimensions | 16"W x 25-1/8"D x 8-1/2"H each, gray |
| Tote Style | Cross-stack |
| Clearance Between Tote Holders | 10" |
| Frame | 1" tubular with 1-1/4" x 1/8" angle support rails |
| Bottom Pan | 12-gauge steel, flush |
| Caster Mounts | 12-gauge steel |
| Casters | 5" x 1-1/4" urethane, all-swivel (U503); bolt-on |
| Overall Height | 72" |
| Construction | All-welded steel (except casters) |
| Finish | Gray powder-coat (GP) |
| Weight | 190 lbs |
| Application | Warehouse, manufacturing, distribution parts and supply transport |
Frequently Asked Questions
What are cross-stack totes?
Cross-stack totes are designed so that when stacked, alternating totes rotate 90° to interlock and stabilize the stack — preventing the stack from tipping or sliding. This allows totes to be safely stacked when not in use on the rack, saving floor space in warehouse and storage environments.
What is the per-tote weight limit?
100 lbs per tote, with a 1,200 lb total rack capacity. Exceeding the per-tote limit can cause tote deformation or failure even if the total rack capacity is not reached — distribute loads evenly across all 12 totes for best results.
Why are all-swivel casters used on the TL236?
All-swivel casters allow the fully loaded tote truck to be pushed or pulled in any direction without turning the rack — essential for maneuvering in tight warehouse aisles, through doorways, and around corners where a rigid-caster rack would be difficult to steer.
How does the TL236 tote truck differ from the RB336 sloped shelf bin truck?
The TL236 uses deep cross-stack totes (8-1/2" high) for bulk storage of parts and supplies that need to be contained. The RB336 uses shallow sloped bins (4" high) for quick-access picking of small parts visible from the aisle. Choose the TL236 for bulk storage and transport, and the RB336 for active picking operations.
