Jamco Products WL248GP Steel Shelving Unit
Jamco Products WL248GP Steel Shelving Unit

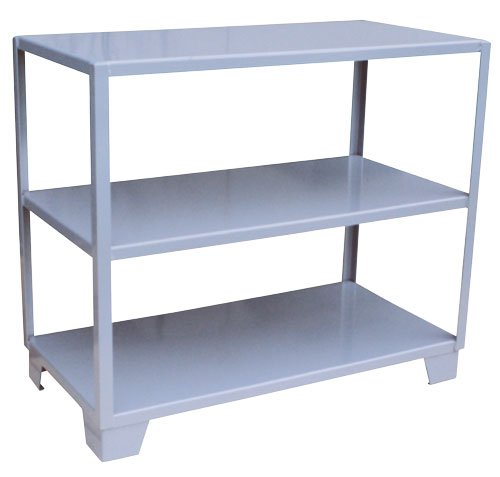

The Jamco Products WL248GP is a heavy-duty, all-welded one-piece steel shelving unit with 3 flush shelves and a 3,000 lb evenly distributed capacity. Built with 12-gauge steel shelves, 3/16" thick angle corners, and 12-gauge feet, the WL248GP features 1-1/2" lips-down flush shelves with 17" clearance between shelves at 45" overall height. The all-welded one-piece construction eliminates assembly and provides maximum rigidity for demanding industrial storage applications. Gray powder-coat finish.
Sold individually.
Specifications
| Property | Value |
|---|---|
| Model | WL248GP |
| Dimensions (W x D x H) | 48" x 24" x 45" |
| Capacity | 3,000 lbs (evenly distributed) |
| Number of Shelves | 3 |
| Shelf Material | 12-gauge steel, flush (lips down) |
| Corner Construction | 3/16" thick angle corners |
| Feet | 12-gauge steel |
| Clearance Between Shelves | 17" |
| Overall Height | 45" |
| Construction | All-welded one-piece steel |
| Finish | Gray powder-coat (GP) |
| Weight | 166 lbs |
| Application | Heavy-duty industrial storage, warehouse, manufacturing |
Frequently Asked Questions
What is the advantage of all-welded one-piece construction?
All-welded one-piece shelving units arrive fully assembled with no bolts, clips, or posts to install — ready to use immediately. The welded construction also provides greater rigidity and load stability than bolt-together shelving, which can rack or loosen over time under heavy loads.
What is the 3,000 lb capacity based on?
3,000 lbs evenly distributed across all shelves. For maximum load stability, distribute weight evenly across the shelf surface and across all three shelves rather than concentrating the full load on a single shelf or area.
Why are the shelf lips down (flush) on the WL248GP?
Flush lips allow items to be slid on and off the shelves from the front without catching on a retention lip — useful for loading large, flat, or heavy items that would be difficult to lift over a raised lip. It also provides a cleaner, flat shelf surface for storing bins, boxes, or equipment.
How does the WL248GP differ from the WS124GP steel work stand?
The WL248GP is a 3-shelf stationary shelving unit (3,000 lb, 48" wide, 45" tall) designed for high-capacity storage. The WS124GP is a 2-shelf work stand (2,000 lb, 24" wide, 30" tall) designed as a low-profile industrial workstation platform. Choose the WL248GP for storage applications and the WS124GP for workstation support.
