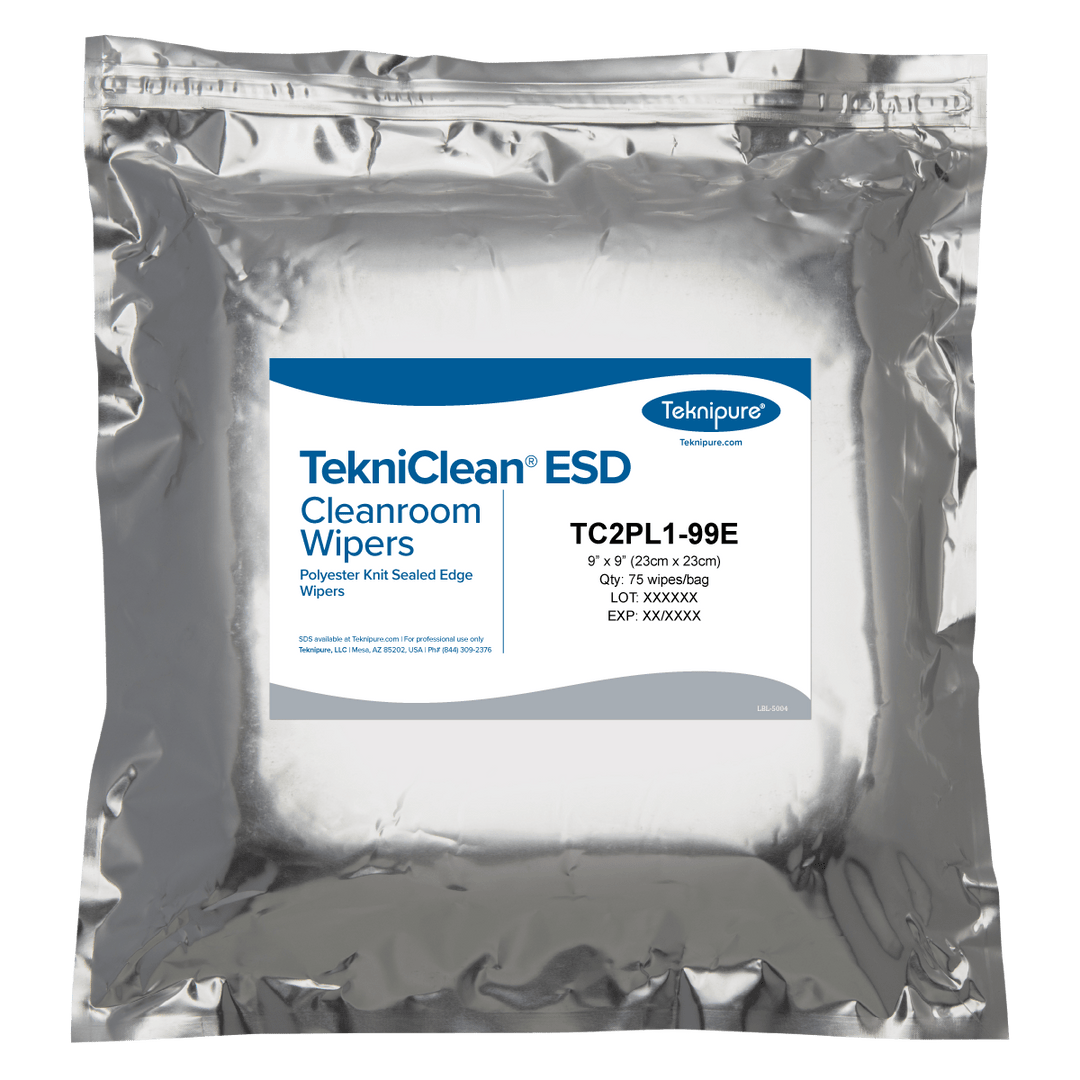

Teknipure TC2PL1-99E TekniClean® ESD polyester knit carbon fiber cleanroom wipers, 9"x9"
ESD Carbon Fiber Polyester Knit Cleanroom Wiper, 9 in x 9 in, Laser-Sealed Edge | Teknipure TC2PL1-99E, 100 Wipes/Bag, 10 Bags/Case (1,000 Wipes/Case)
The Teknipure TC2PL1-99E TekniClean® is a dry ESD polyester knit cleanroom wiper with conductive carbon fiber filaments integrated into the knit construction, providing electrostatic discharge (ESD) protection for sensitive manufacturing environments. The laser-sealed edge minimizes fiber shedding and particle generation, while the polyester/carbon fiber blend delivers excellent chemical compatibility, durability, and low-lint performance. Packaged in ESD static shield resealable bags to preserve ESD properties during storage. Suitable for ISO Class 3–8 cleanrooms in semiconductor, microelectronics, pharmaceutical, and medical device manufacturing. Shelf life is 5 years from date of manufacture.
Sold in cases of 10 bags, 100 wipes/bag (1,000 wipes/case).
Specifications
| Part Number | TC2PL1-99E |
| Product Line | TekniClean® ESD |
| Size | 9 in x 9 in |
| Material | Polyester knit with conductive carbon fiber filaments |
| Edge Type | Laser-sealed edge |
| Format | Dry (non-saturated) |
| Packaging | ESD static shield resealable bag |
| Wipes per Bag | 100 (2 inner bags of 50) |
| Bags per Case | 10 |
| Total Wipes per Case | 1,000 |
| ISO Cleanroom Rating | ISO Class 3–8 (Class 1–100,000) |
| ESD Suitable | Yes — carbon fiber construction, static shield packaging |
| Shelf Life | 5 years from date of manufacture |
| Manufacturer | Teknipure |
Frequently Asked Questions
How do carbon fiber filaments provide ESD protection in a cleanroom wiper?
Conductive carbon fiber filaments woven into the polyester knit structure create a path for electrostatic charge to dissipate safely rather than build up on the wiper surface. This prevents the wiper itself from generating or transferring static discharge to sensitive electronic components, wafers, or assemblies during wiping. The carbon fiber content is balanced to provide ESD protection without compromising the low-lint and absorbency characteristics of the polyester knit base material.
How does the TC2PL1-99E differ from standard TekniClean® polyester knit wipers?
The TC2PL1-99E adds conductive carbon fiber filaments to the standard TekniClean® polyester knit construction, making it ESD-safe for use in electrostatic-sensitive areas. It also uses a laser-sealed edge rather than an ultrasonic sealed edge, and is packaged in an ESD static shield resealable bag rather than standard packaging. For non-ESD environments, the standard TekniClean® polyester knit wipers (TC2PU series) are the equivalent option.
Why is the ESD static shield bag important for storage?
The static shield resealable bag protects the wipers from electrostatic discharge during storage and transport, ensuring the carbon fiber ESD properties are preserved until use. The resealable design also maintains cleanliness between uses and prevents contamination of unused wipers after a bag is opened.
Is the TC2PL1-99E available in other sizes?
Yes — the TekniClean® ESD carbon fiber wiper series is also available in 12"x12" (TC2PL1-12E) and 18"x18" (TC2PL1-18E) for applications requiring larger surface coverage per wipe.
