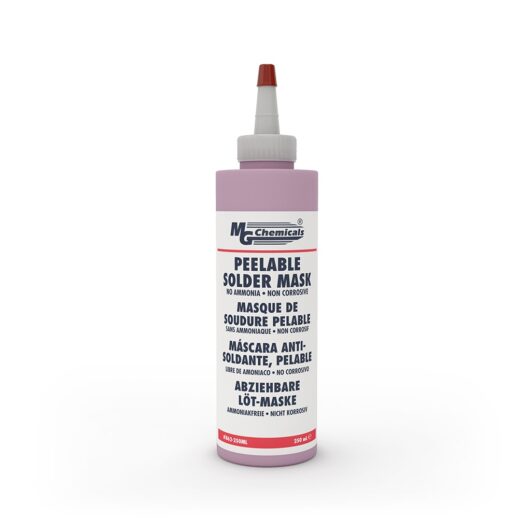

MG Chemicals 862-250ML, Peelable Solder Mask, 250ml Tube, Case of 5

MG Chemicals SKU: 862-250ML
MG Chemicals 862-250ML, Peelable Solder Mask, 250ml Tube, Case of 5
MG Chemicals 862-250ML, Peelable Solder Mask, 250ml Tube, Case of 5

MG Chemicals 862-250ML, Peelable Solder Mask, 250ml Tube, Case of 5

MG Chemicals SKU: 862-250ML
Regular price $103.33
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

MG Chemicals 862-250ML, Peelable Solder Mask, 250ml Tube, Case of 5

This PCB peelable solder mask is a synthetic latex product for the temporary masking of circuit areas and contacts against solder, rosin and cleaning fluids. This PCB mask provides effective protection for contacts, gold fingers and printed circuit card edges, and can easily be peeled off once the wave soldering process is complete, and after any subsequently applied conformal coating is sufficiently dry.

Our peelable solder mask can be applied by hand or by template screening, but not by silk screening. It can also be applied using robotic or pneumatic systems.

  • Withstands wave soldering
  • Non-Corrosive—Safe for copper, gold, silver, and solder joints
  • Solvent Solubility —Largely insoluble once cured (flux and cleaning solvent resistant)
  • Water Soluble—Can be thinned with deionized (D.I.) water to adjust viscosity
  • Immersion Resistant—insoluble once cured
  • Room Temperature Cures or Quick Heat Curing
  • Cure Monitoring Color Change—Changes from opaque pink to translucent red once cured
  • Ammonia-free—does not discolor copper traces

Technical Data Sheet

Safety Data Sheet

Part # Net Vol. Net Wt. Packaging
862-250ML 250 mL 250 g Tube
