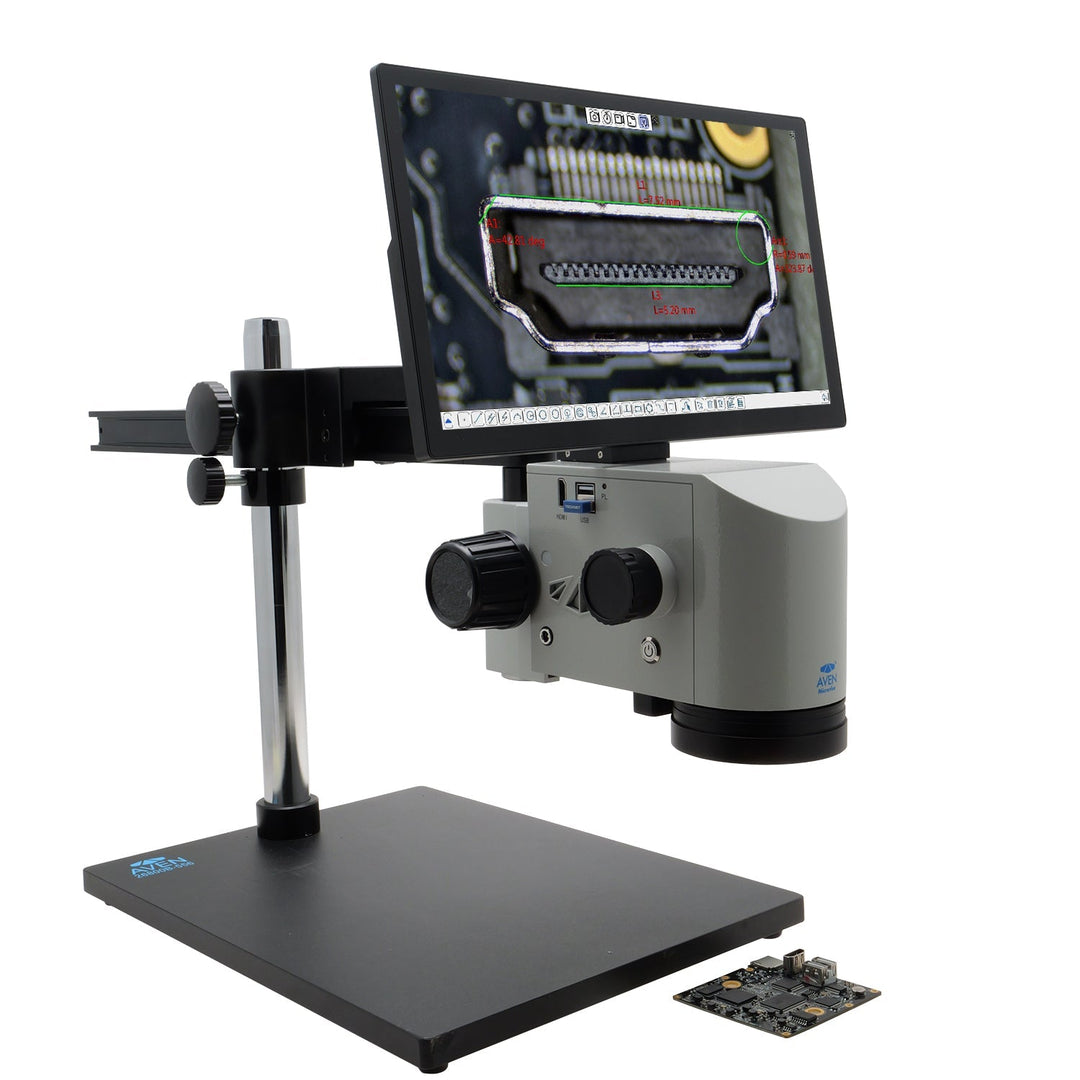

Aven Tools 26700-141-556 MicroVue Digital Microscope (20x–134x) with Ultra Glide Boom Stand
Aven Tools 26700-141-556 MicroVue Digital Microscope (20x–134x) with Ultra Glide Boom Stand
The Aven Tools 26700-141-556 MicroVue 2.0 combines standalone digital inspection with the smooth positioning of an Ultra Glide boom stand. View accessible component and surface details on the integrated 13.3-inch HD monitor, adjust illumination with the magnetic LED ring light, and measure or capture findings without a computer. The standard displayed magnification is 20.7x–133.4x on the built-in monitor without optional lenses.
Best Uses / Applications
- Electronics assembly inspection: Examine visible solder joints, component placement, connectors and PCB surface features.
- Larger workpiece navigation: Reposition the microscope across an assembly with the Ultra Glide arm, subject to workpiece clearance.
- Repair and rework verification: Capture before-and-after images of accessible features for job records.
- Production quality control: Review small parts and visible surface defects on a shared screen.
- Laboratory inspection: Use calibrated on-screen measurement and annotations to document sample features.
- Training and collaborative review: Share live images on the built-in monitor or through HDMI to an external display.
Key Features
- Built-in 13.3-inch HD monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x displayed magnification without optional lenses.
- 1/2.8-inch Sony CMOS sensor; Full HD live imaging at 1920 x 1080 and 60 fps.
- Quick-swap magnetic LED ring light with selectable quadrants for directional illumination.
- Ultra Glide boom stand with heavy metal base and safety collar.
- Coarse and fine focus controls.
- Built-in measurement, reticle, coordinates and text annotations.
- USB and MicroSD image/video storage support and HDMI output.
Microscope Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-556 |
| Platform | MicroVue 2.0 / 26700-141 |
| Configuration | Digital microscope with Ultra Glide boom stand |
| Display | Built-in 13.3-inch HD monitor |
| Displayed magnification | 20.7x–133.4x on the built-in monitor without optional lenses |
| Sensor / Pixel size | 1/2.8-inch Sony CMOS / 3.75 x 3.75 micrometers |
| Live image | 1920 x 1080 at 60 fps |
| Still images / Video | 2-million-pixel stills / 1080p recording |
| Lighting | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine controls |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurement tools | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Annotations | Coordinates, reticle and text |
| Image controls | Horizontal/vertical mirror, monochrome, freeze and contrast |
| Power | DC 12 V with supplied adapter |
Ultra Glide Boom Stand Specifications
| Specification | Details |
|---|---|
| Base dimensions | 15 x 10.5 inches |
| Base weight | 35 lb, base only |
| Vertical post length | 13.5 inches |
| Vertical post diameter | 37.2 mm |
| Extension post length | 225 mm |
| Horizontal arm length | 23 inches |
| Safety feature | Safety collar |
Mechanical post and arm dimensions are not optical working distance or guaranteed usable reach. Numerical measurement accuracy is not specified in the supplied material.
Included Equipment
- MicroVue 2.0 digital microscope with integrated Full HD camera and 13.3-inch display.
- Magnetic LED ring light.
- Ultra Glide boom stand with heavy metal base.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual.
This configuration includes the Ultra Glide boom stand. An additional track stand is not promised despite generic track-stand entries in the manufacturer's contents panel.
Configuration and Optional Accessory Comparison
| Equipment | Purpose | Included with 26700-141-556? |
|---|---|---|
| Ultra Glide boom stand | Reposition the microscope over the inspection area | Yes |
| Standard magnetic LED ring light | Visible-light inspection with quadrant control | Yes |
| X/Y/R gliding stage | X/Y sample movement and 360° rotation | No |
| 360 Viewer | 35° angled inspection; engaged mode applies a 0.5x reduction | No |
| 365 nm UV ring light | Inspection of suitable fluorescent coatings, markings and materials | No |
| 0.5x lens | Increase working distance and field of view | No |
| 2.0x lens | Extend magnification | No |
Frequently Asked Questions
What distinguishes the 26700-141-556?
It combines the MicroVue 2.0 digital microscope with the Ultra Glide boom stand. Unlike the 556XYR configuration, it does not include the X/Y/R gliding stage.
Does it include a monitor and camera?
Yes. The microscope integrates a 13.3-inch HD display and Full HD camera for standalone viewing.
Is a computer required?
No. Built-in tools support inspection, measurement and image/video capture without a computer.
Is the camera Full HD or 4K?
This system provides Full HD live imaging at 1920 x 1080 and 60 fps, not 4K.
What magnification does it provide?
The manufacturer specifies 20.7x–133.4x on the integrated monitor without optional lenses. Optional accessories change the viewing configuration.
Can I save images and video?
Yes. Save 2-million-pixel still images and 1080p video using USB storage or MicroSD. A USB flash drive is included.
How does quadrant lighting help?
Selecting individual LED quadrants changes illumination direction to help adjust contrast and reveal different surface details.
Can I measure components on screen?
Yes. Built-in tools cover length, distance, circle and area measurements plus annotations. Follow the manufacturer's calibration procedure using the supplied scale.
Are the X/Y/R stage and 360 Viewer included?
No. Both are optional for this configuration. The stage moves the sample; the viewer changes the viewing direction through an angled mirror.
Is the optional UV ring light a curing system?
The supplied information describes the 365 nm UV ring light for fluorescent-material inspection, not curing. It is not included.
