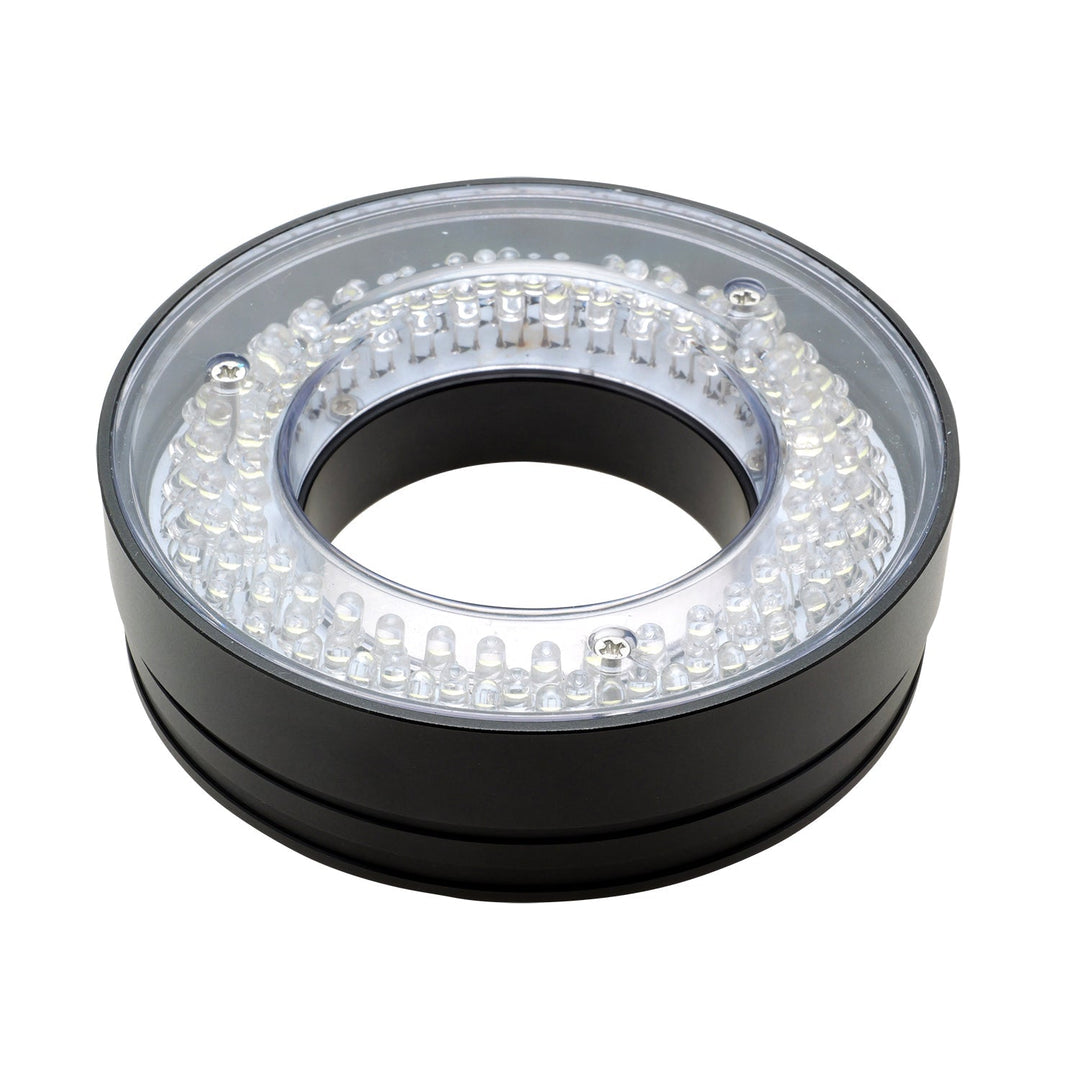

Aven Tools 26700-141-RLLED MicroVue 2.0 Replacement LED Ring Light
Aven Tools 26700-141-RLLED MicroVue 2.0 Replacement LED Ring Light
The Aven Tools 26700-141-RLLED is a replacement magnetic LED ring light for the MicroVue 2.0 digital microscope, item 26700-141. Its 620-lumen output provides bright, even illumination for detailed inspection, helping reduce shadows and improve visibility across the work area. The compact housing measures 90 mm in diameter and 27 mm high.
When your compatible inspection station needs replacement lighting, the magnetic mount allows tool-free attachment. The ring light draws power directly from the microscope, avoiding a separate external power supply and additional external cables at the bench.
Best Uses / Applications
- Replacement microscope illumination: Replace the standard LED ring light on a compatible MicroVue 2.0 microscope.
- PCB and electronics inspection: Illuminate visible component placement, solder joints and connector details.
- Small-part quality control: Improve visibility of surface features and assembly details under magnification.
- Repair and laboratory work: Provide even visible illumination for close-up examination of suitable workpieces.
- Workstation maintenance: Keep a model-specific replacement available for a compatible inspection setup.
Key Features
- 620-lumen LED light output for bright, even inspection illumination.
- Magnetic mount for tool-free attachment to the compatible microscope.
- Powered directly by MicroVue 2.0; no separate external supply required.
- 12 V operating voltage and 6 W power rating.
- Low-profile housing: 90 mm diameter x 27 mm height.
- Manufacturer-listed product weight: 0.24 lb (0.12 kg).
- Designed for MicroVue 2.0 digital microscope item 26700-141.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / SKU | 26700-141-RLLED |
| Product | Replacement LED ring light |
| Light output | 620 lumens |
| Operating voltage | 12 V |
| Power rating | 6 W |
| Housing diameter | 90 mm |
| Height | 27 mm |
| Product weight | 0.24 lb (0.12 kg), as listed by the manufacturer |
| Attachment | Magnetic mount |
| Power source | Powered directly by the MicroVue 2.0 microscope |
| Manufacturer-listed compatibility | MicroVue 2.0 digital microscope, item 26700-141 |
Standard LED vs. UV Ring Light
| Model | Illumination | Selection Guidance |
|---|---|---|
| 26700-141-RLLED | Standard visible LED; 620 lumens | General close-up inspection of surface details and assemblies. |
| 26700-141-RLUV | 365–370 nm ultraviolet LED | Inspection of suitable fluorescent coatings, materials and markings; a separate accessory. |
Compatibility and Ordering Guidance
Match replacement part 26700-141-RLLED to the MicroVue 2.0 microscope item 26700-141 and confirm your existing configuration before ordering. The 90 mm figure describes housing diameter, not an independently specified mounting-bore diameter. Do not assume universal compatibility with other microscope models. This listing is for the ring light only, not a microscope, camera or stand.
Frequently Asked Questions
Which microscope is this ring light designed for?
Aven identifies compatibility with the MicroVue 2.0 digital microscope, item 26700-141.
How bright is the light?
The supplied manufacturer specifications list 620 lumens of LED output.
Does it need a separate power supply?
No. The light draws power directly from the compatible microscope. Its listed operating voltage is 12 V and its power rating is 6 W.
How does it attach?
It uses a magnetic mount for tool-free attachment to the compatible MicroVue 2.0 microscope.
Is this the UV ring light?
No. This is the standard LED replacement light, 26700-141-RLLED. The separate 26700-141-RLUV model provides 365–370 nm ultraviolet illumination.
What are its dimensions?
The housing measures 90 mm in diameter and 27 mm high. Those dimensions do not establish compatibility with a generic microscope mount.
Does it include a microscope or camera?
No. This listing is for the replacement LED ring light only.
Will it eliminate every shadow?
The ring illumination helps reduce shadows and improve visibility. Results depend on workpiece shape, surface reflectivity and the inspection configuration.
Related MicroVue Accessories and Resources
For fluorescence inspection, compare the 26700-141-RLUV UV ring light. For replacement positioning hardware, see the 26700-141-STND track stand. Explore the Aven Tools collection and PCB Rework & Precision Tools resource hub for related inspection-workstation equipment and applications.
