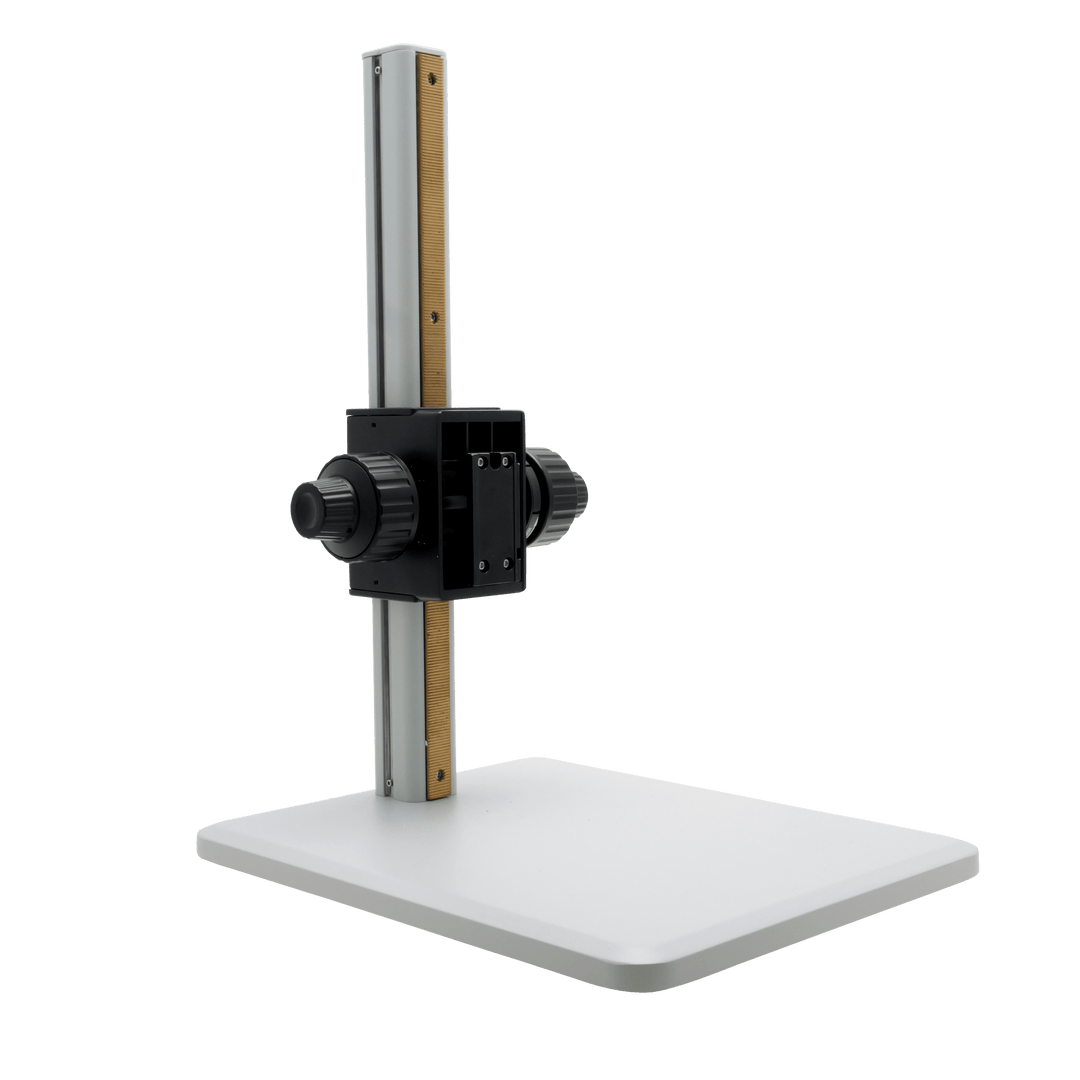

Aven Tools 26700-141-STND Track Stand for MicroVue 2.0
Aven Tools 26700-141-STND Track Stand for MicroVue 2.0
The Aven Tools 26700-141-STND is a replacement track stand engineered for the MicroVue 2.0 digital microscope, item 26700-141. A 16-inch vertical track post supports smooth height adjustment, while separate coarse and fine focus knobs help bring the inspection subject into view and refine image sharpness. The 10.25 x 12.25-inch base provides a stable working surface for sample placement.
At an inspection bench, use coarse adjustment to establish the viewing position, then make small focus corrections with the fine control. The stand's solid construction helps minimize vibration and unwanted movement during detailed examination. This is a stand-only replacement, not a complete digital microscope system.
Best Uses / Applications
- MicroVue 2.0 stand replacement: Maintain the positioning hardware for microscope item 26700-141.
- Electronics inspection: Support a compatible microscope while viewing PCB components, connectors and visible solder joints.
- Production quality control: Adjust microscope height and focus for examining parts of different sizes.
- Laboratory and workshop inspection: Provide a stable benchtop platform for detailed sample examination.
- Training workstations: Support a compatible MicroVue 2.0 microscope during demonstrations and hands-on inspection.
Key Features
- Designed specifically for the Aven MicroVue 2.0 digital microscope, item 26700-141.
- 16-inch vertical track post for raising and lowering the microscope.
- Dedicated coarse and fine focus adjustment knobs.
- 10.25 x 12.25-inch base for workpiece placement.
- Solid construction helps reduce vibration and movement during inspection.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / SKU | 26700-141-STND |
| Product | Replacement track stand |
| Compatible microscope | MicroVue 2.0 digital microscope, item 26700-141 |
| Vertical track post | 16 inches |
| Focus adjustment | Coarse and fine adjustment knobs |
| Base dimensions | 10.25 x 12.25 inches |
| Positioning | Vertical raising and lowering of the microscope |
The 16-inch specification describes post height, not optical working distance or guaranteed usable travel. Optical working distance depends on the microscope configuration. Load capacity, mounting dimensions and focus-travel distance are not specified in the supplied manufacturer material.
Stand Selection Comparison
| Stand / Positioning Option | Selection Guidance |
|---|---|
| 26700-141-STND track stand | Model-specific replacement for MicroVue 2.0 item 26700-141, with vertical positioning and coarse/fine focus over a benchtop base. |
| Boom stand | Consider when horizontal microscope positioning is required; verify the stand, mount and any required adapter for the exact configuration. |
| Articulating arm stand | Consider for flexible positioning around a work area; confirm compatible mounting hardware separately. |
| X/Y/R stage | Moves the sample rather than replacing the microscope-support stand; a separate positioning accessory. |
Compatibility and Ordering Guidance
Match part number 26700-141-STND to your MicroVue 2.0 microscope and existing mounting arrangement before ordering. The supplied manufacturer information identifies microscope item 26700-141; it does not establish universal fit for every MicroVue generation or bundle. Camera, display and lighting specifications belong to the microscope system, not this replacement stand.
Frequently Asked Questions
Which microscope is this stand designed for?
Aven identifies the stand for the MicroVue 2.0 digital microscope, item 26700-141.
Is the vertical post 16 or 18 inches?
The supplied manufacturer details and features both identify a 16-inch track post.
Does a 16-inch post mean 16 inches of working distance?
No. Post height is a mechanical dimension. Optical working distance is the distance between the optics and subject at focus and depends on the microscope configuration.
Does the stand have coarse and fine focus?
Yes. Coarse adjustment helps bring the subject into view, and the fine knob provides small focus corrections.
What are the base dimensions?
The supplied manufacturer description lists a 10.25 x 12.25-inch base.
Does this include a microscope, camera or light?
No. This listing is for the replacement track stand, not a complete microscope, camera or illumination system.
Can it replace a boom stand in any MicroVue bundle?
Do not assume interchangeability across all bundles. Verify the microscope, mounting arrangement and required hardware before changing stand configurations.
