Aven Tools 26700-141-534XYR MicroVue Digital Microscope (21x–133x) with Double Arm Boom Stand and x/Y/R Gliding Stage
Aven Tools 26700-141-534XYR MicroVue Digital Microscope (21x–133x) with Double Arm Boom Stand and x/Y/R Gliding Stage

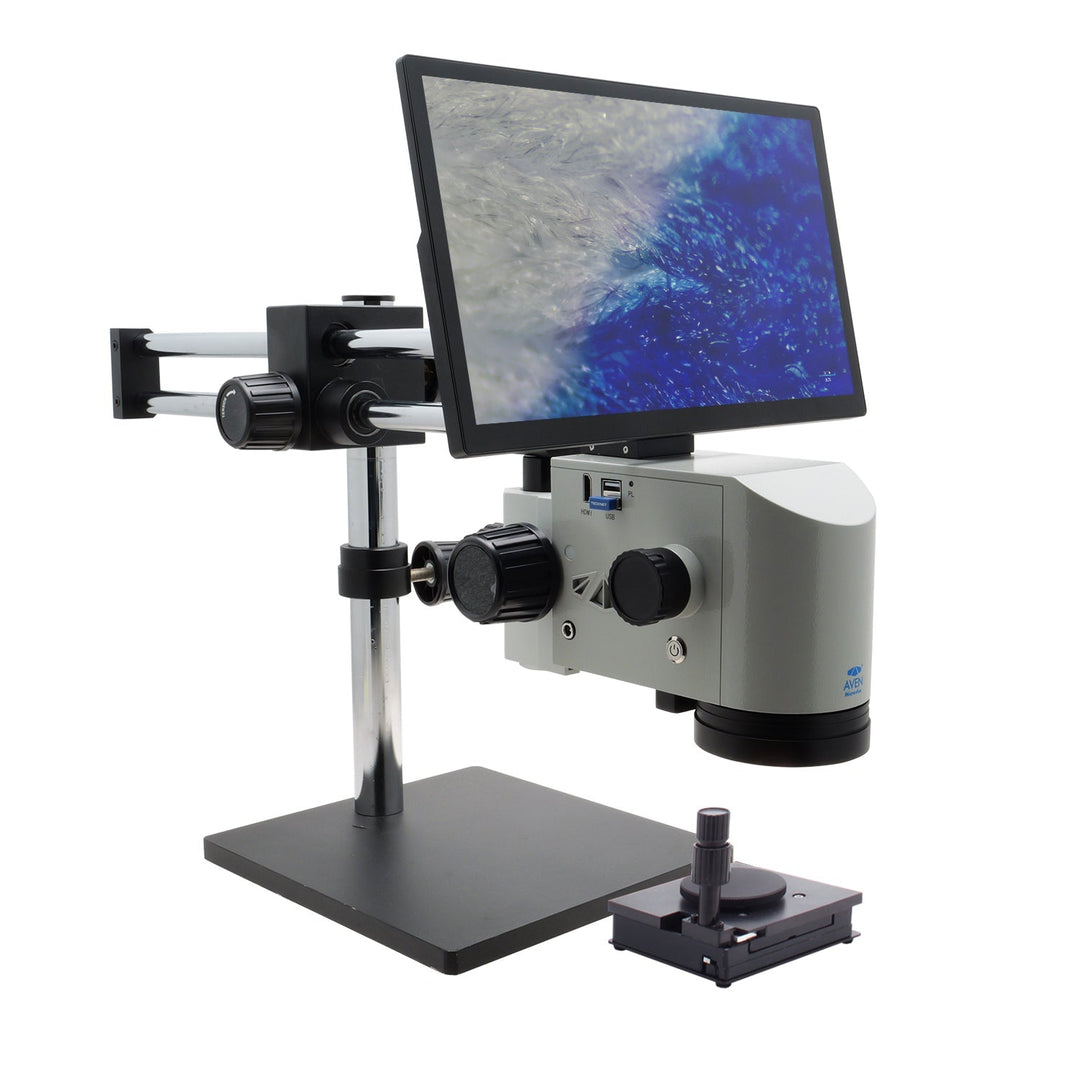

The Aven Tools 26700-141-534XYR MicroVue 2.0 combines standalone digital inspection with a double-arm boom stand and compact X/Y/R gliding stage. Position the microscope over the workpiece using the boom, then navigate the sample using X/Y movement and rotation. The built-in 13.3-inch HD monitor, Full HD camera, magnetic LED ring light and measurement tools support inspection and documentation without a computer.
Best Uses / Applications
- PCB and electronics inspection: Examine visible solder joints, component placement, connectors and board surface features.
- Repeated sample navigation: Move across small assemblies with the X/Y/R stage instead of repeatedly picking up the workpiece.
- Benchtop quality control: Combine boom positioning with stage movement to bring successive inspection areas into view.
- Repair documentation: Capture visible before-and-after details as still images or video.
- Laboratory feature measurement: Use calibrated length, distance, circle and area tools with on-screen annotations.
- Training and collaborative review: Inspect on the integrated display or share the live image through HDMI.
Key Features
- 13.3-inch built-in HD monitor, with 31% more screen area than the original MicroVue.
- 20.7x–133.4x displayed magnification on the built-in monitor without optional lenses.
- 1/2.8-inch Sony CMOS sensor; 1920 x 1080 live imaging at 60 fps.
- Magnetic LED ring light with selectable quadrants for directional lighting control.
- Double-arm boom stand with ball-bearing slide and heavy metal base.
- Included compact X/Y/R stage with 70 mm X travel, 30 mm Y travel and 360° rotation.
- Coarse and fine focus; built-in measurement and annotation functions.
- HDMI output, USB connections and MicroSD storage support.
Microscope Specifications
| Specification | Details |
|---|---|
| System SKU | 26700-141-534XYR |
| Platform | Aven MicroVue 2.0 / 26700-141 |
| Configuration | Double-arm boom stand and compact X/Y/R gliding stage |
| Display | 13.3-inch built-in HD monitor |
| Displayed magnification | 20.7x–133.4x without optional lenses, on the built-in monitor |
| Sensor / Pixel size | 1/2.8-inch Sony CMOS / 3.75 x 3.75 micrometers |
| Live image | 1920 x 1080 at 60 fps |
| Capture | 2-million-pixel still images; 1080p video |
| Illumination | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine controls |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurements | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Annotations | Coordinates, reticle and text |
| Image controls | Horizontal/vertical mirror, monochrome, freeze and contrast |
| Power | DC 12 V with supplied adapter |
Positioning Hardware Specifications
| Component | Specification | Details |
|---|---|---|
| Double-arm boom stand | Base dimensions | 285 x 260 x 18 mm |
| Double-arm boom stand | Vertical post length | 380 mm / 15 inches |
| Double-arm boom stand | Horizontal arm length | 388 mm |
| Double-arm boom stand | Movement | Ball-bearing slide |
| X/Y/R stage | Base dimensions | 135 x 120 x 93 mm |
| X/Y/R stage | Rotating stage diameter | 73 mm |
| X/Y/R stage | X / Y / Rotation | 70 mm / 30 mm / 360° |
| X/Y/R stage | Rotating component / Base material | Aluminum alloy / Plastic |
| X/Y/R stage | Weight | 1.76 lb, stage only |
Post length is a mechanical stand dimension, not optical working distance. Conflicting stand-weight figures and generic track-stand references in the supplied material are not used as bundle specifications.
Included Equipment
- MicroVue 2.0 digital microscope with integrated camera and 13.3-inch display.
- Magnetic LED ring light.
- Double-arm boom stand with metal base.
- Compact X/Y/R gliding stage.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual.
The manufacturer's contents panel mixes track-stand parts and an “Ultra Glide” name with the double-arm configuration. This listing identifies the double-arm boom stand and X/Y/R stage explicitly specified for SKU 26700-141-534XYR; an additional track stand is not promised.
Configuration and Accessory Comparison
| Equipment | Purpose | Included? |
|---|---|---|
| Double-arm boom stand | Position the microscope over and across the inspection area | Yes |
| X/Y/R stage | Move and rotate the sample beneath the microscope | Yes |
| Standard magnetic LED ring light | Visible-light specimen illumination with quadrant control | Yes |
| 365 nm UV ring light | Inspection of suitable fluorescent coatings, markings and materials | No |
| 0.5x lens | Increase working distance and field of view | No |
| 2.0x lens | Extend magnification | No |
| 360 Viewer | 35° angled viewing; engaged mode applies a 0.5x reduction | No |
Frequently Asked Questions
What makes the 26700-141-534XYR configuration different?
It pairs the MicroVue 2.0 with both a double-arm boom stand and compact X/Y/R gliding stage, combining microscope positioning with controlled sample movement.
How far does the stage move?
The supplied stage specifications list 70 mm X travel, 30 mm Y travel and 360° rotation. The rotating stage diameter is 73 mm.
Is the 360 Viewer included?
No. The X/Y/R stage rotates the workpiece; it is not the optional angled-view attachment. The 360 Viewer is sold separately.
Is a computer required?
No. The integrated display and built-in tools support standalone inspection, measurement and image/video capture.
Is the camera Full HD or 4K?
This configuration provides Full HD live imaging at 1920 x 1080 and 60 fps, not 4K.
Can I save photos and video?
Yes. The microscope supports 2-million-pixel stills and 1080p video, with USB storage and a MicroSD card port. A USB flash drive is included.
How does quadrant lighting help?
Selecting LED quadrants changes illumination direction to help reveal different surface details and adjust contrast.
What magnification is available?
The standard displayed range is 20.7x–133.4x on the built-in monitor without optional lenses. Optional lenses and the angled viewer change the viewing configuration.
Can I measure components?
Yes. Built-in tools provide length, distance, circle and area measurements plus annotations. Follow the manufacturer's calibration procedure using the supplied scale. Numerical accuracy is not specified here.
Is the UV light included or intended for curing?
No UV light is included. The optional 365 nm ring light is described for fluorescent-material inspection, not as a curing system.
Related MicroVue Accessories
- 26700-141-3DA MicroVue 360 Viewer attachment
- 26700-141-RLLED replacement LED ring light
- 26700-141-RLUV optional UV ring light
- 26700-141-STND alternative replacement track stand
Related Resources
Explore Aven Tools, compare our Inspection Microscopes, and visit the Optical Inspection & Magnification resource hub.
