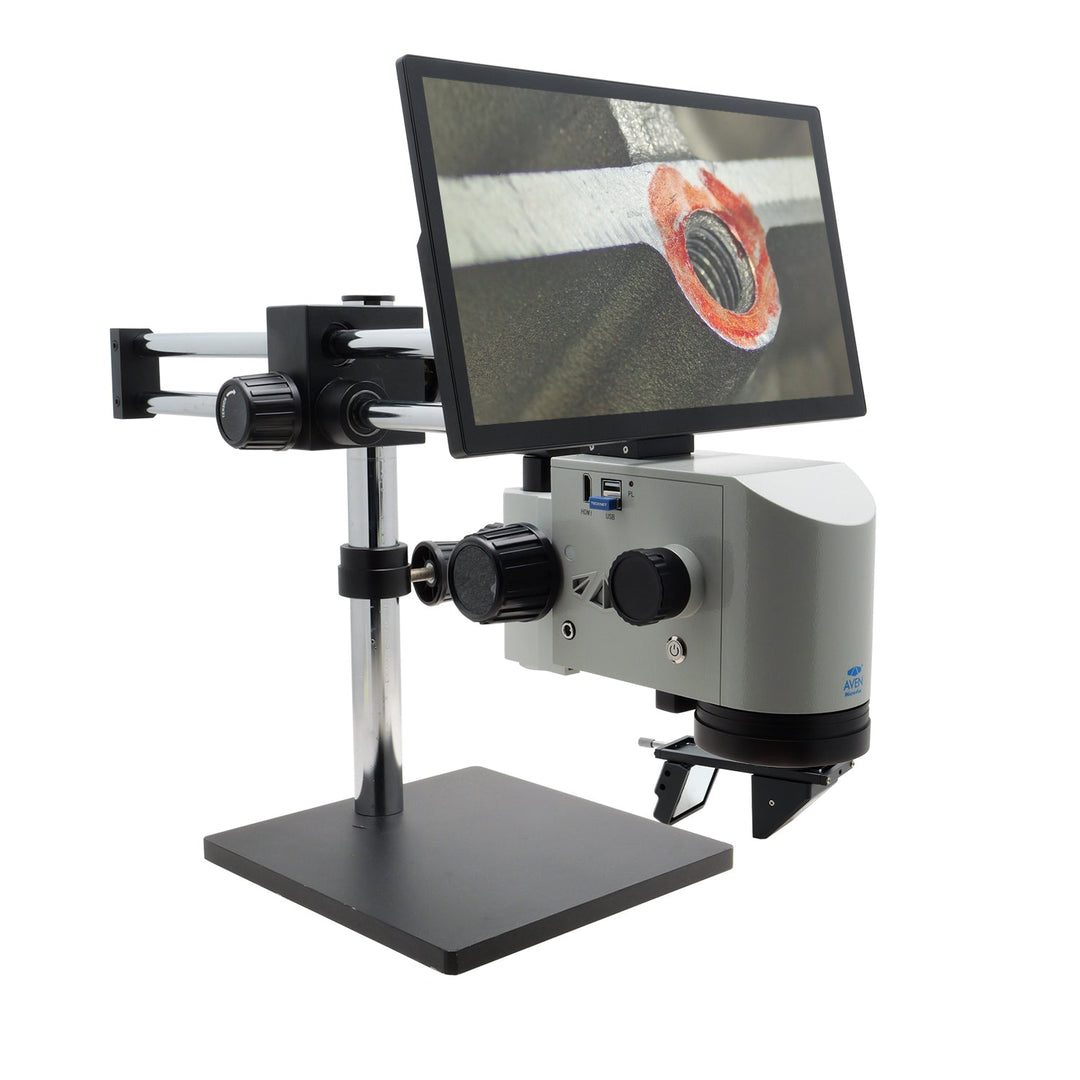

The Aven Tools 26700-141-5343D MicroVue 2.0 combines screen-based inspection with a double-arm boom stand and included 360 Viewer. Position the microscope over the workpiece, then use the viewer's rotating 35° mirror to examine accessible component sides from different directions. An integrated 13.3-inch HD display, Full HD camera, magnetic LED ring light and built-in measurement tools support standalone inspection and documentation without a computer.
Best Uses / Applications
- PCB and electronics inspection: Examine visible solder joints, component placement and accessible side profiles.
- Connector and multi-layer assembly review: Change the viewing direction to inspect visible features around components, subject to clearance and geometry.
- Larger or awkward workpieces: Reposition the microscope using the double-arm boom rather than relying only on sample movement.
- Production quality control: Capture images and video documenting visible defects and inspection findings.
- Laboratory and precision-part inspection: Use calibrated measurement and annotation tools for feature documentation.
- Training and collaborative review: Share the image on the integrated screen or an HDMI-connected display.
Key Features
- Built-in 13.3-inch HD monitor with 31% more screen area than the original MicroVue.
- Standard displayed magnification of 20.7x–133.4x on the built-in monitor without optional lenses and with the angled viewer disengaged.
- 1/2.8-inch Sony CMOS sensor; 1920 x 1080 live imaging at 60 fps.
- Included 360 Viewer with a 35° mirror and full 360° rotation.
- Magnetic LED ring light with selectable quadrants for directional illumination.
- Double-arm boom stand with ball-bearing slide and metal base.
- Coarse and fine focus controls; built-in measurement and annotation tools.
- HDMI output, USB connections and MicroSD storage support.
Microscope Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-5343D |
| Platform | MicroVue 2.0 / 26700-141 |
| Configuration | Double-arm boom stand and 360 Viewer |
| Display | Built-in 13.3-inch HD monitor |
| Standard displayed magnification | 20.7x–133.4x on the integrated monitor, without optional lenses and with angled viewing disengaged |
| Sensor / Pixel size | 1/2.8-inch Sony CMOS / 3.75 x 3.75 micrometers |
| Live image | 1920 x 1080 at 60 fps |
| Still images / Video | 2-million-pixel stills / 1080p recording |
| Illumination | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine adjustment |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurement tools | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Annotations | Coordinates, reticle and text |
| Image controls | Horizontal/vertical mirror, monochrome, freeze and contrast |
| Power | DC 12 V with supplied adapter |
Stand and Viewer Specifications
| Component | Specification | Details |
|---|---|---|
| Double-arm boom stand | Base dimensions | 285 x 260 x 18 mm |
| Double-arm boom stand | Vertical post length | 380 mm / 15 inches |
| Double-arm boom stand | Vertical post diameter | 37.2 mm |
| Double-arm boom stand | Horizontal arm length | 388 mm |
| Double-arm boom stand | Slide | Ball-bearing positioning |
| 360 Viewer | Viewing angle / Rotation | 35° / 360° |
| 360 Viewer | Engaged position | Angled viewing, reduced magnification and increased field of view |
| 360 Viewer | Disengaged position | Standard overhead viewing without the viewer's magnification or field-of-view change |
| 360 Viewer | Dimensions | 5.5 x 2 x 1.5 inches |
| 360 Viewer | Weight | 0.55 lb, viewer only |
Stand dimensions describe mechanical hardware, not optical working distance. Conflicting stand-weight figures are omitted. Numerical measurement accuracy is not specified in the supplied material.
Using the 360 Viewer
The included viewer changes inspection direction through a 35° angled mirror and rotates around the viewing axis. Engaging it reduces magnification and increases field of view, so the standard 20.7x–133.4x range should not be assumed unchanged. Disengage it for standard overhead viewing. This attachment does not provide separate left/right stereo images, reveal fully hidden features or replace the sample-positioning function of an X/Y/R stage.
Included Equipment
- MicroVue 2.0 digital microscope with integrated Full HD camera and 13.3-inch monitor.
- Magnetic LED ring light.
- Double-arm boom stand with metal base.
- MicroVue 2.0 360 Viewer attachment.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual.
This configuration includes the double-arm boom stand and 360 Viewer. An additional track stand is not promised despite generic track-stand entries in the manufacturer's contents panel.
Configuration and Optional Accessory Comparison
| Equipment | Purpose | Included? |
|---|---|---|
| Double-arm boom stand | Position the microscope over and across the inspection area | Yes |
| 360 Viewer | Change the viewing direction for accessible angled details | Yes |
| Magnetic LED ring light | Visible-light inspection with quadrant selection | Yes |
| X/Y/R stage | Move and rotate the sample | No |
| 365 nm UV ring light | Inspect suitable fluorescent coatings, markings and materials | No |
| 0.5x lens | Increase working distance and field of view | No |
| 2.0x lens | Extend magnification | No |
Frequently Asked Questions
What distinguishes the 26700-141-5343D bundle?
It includes the MicroVue 2.0 digital microscope, double-arm boom stand and 360 Viewer for combined microscope positioning and angled inspection.
Is the 360 Viewer included or sold separately?
One viewer is included in this bundle. The separate accessory listing is useful for replacement or other compatible MicroVue configurations.
Does the viewer change magnification?
Yes. Engaging angled viewing reduces magnification and increases field of view. Disengaging it restores standard overhead viewing without that change.
Does the viewer provide true stereo vision?
No. It provides angled views through the digital camera, not separate left/right optical images.
Is the X/Y/R gliding stage included?
No. It is optional. The viewer changes viewing direction; the stage moves and rotates the sample.
Is a computer required?
No. The built-in monitor and software support standalone inspection, measurement and capture.
Is the camera Full HD or 4K?
The supplied specifications identify Full HD live imaging at 1920 x 1080 and 60 fps, not 4K.
Can I save images and video?
Yes. Save 2-million-pixel stills and 1080p video using USB storage or MicroSD. A USB flash drive is included.
Can I measure parts on screen?
Yes. Calibrate according to the manufacturer's procedure using the supplied scale and the actual viewing configuration before using the length, distance, circle or area tools.
Is the UV ring light included?
No. The standard LED ring light is included. The optional 365 nm UV light is described for fluorescent-material inspection, not curing.
Related MicroVue Accessories
- 26700-141-3DA 360 Viewer, for replacement or other configurations; one is included here
- 26700-141-RLLED replacement LED ring light
- 26700-141-RLUV optional UV ring light
- 26700-141-STND replacement track stand for alternative configurations
Related Resources
Explore Aven Tools, compare our Inspection Microscopes, and visit the Optical Inspection & Magnification resource hub.
