Aven Tools 26700-141-533 MicroVue 2.0 Digital Microscope (21x–133x) with LED Backlight
Aven Tools 26700-141-533 MicroVue 2.0 Digital Microscope (21x–133x) with LED Backlight

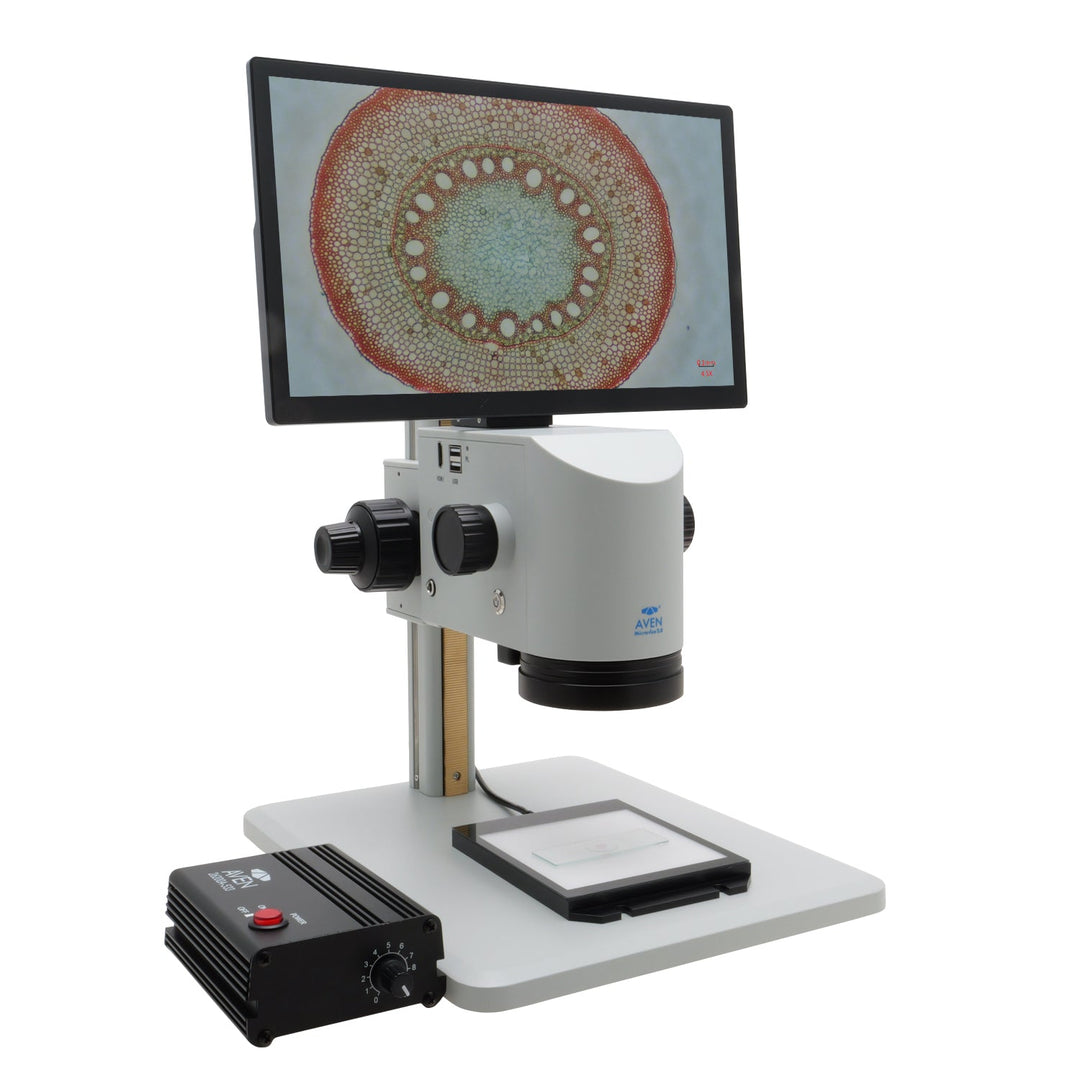

The Aven MicroVue 2.0 is a digital microscope for close-up inspection, supplied in this configuration with an LED backlight panel for transmitted-light viewing. Its built-in 13.3-inch HD monitor supports direct viewing at the bench, while the backlight helps reveal details in thin or translucent samples that may be difficult to see with top-down illumination alone.
Key features and specifications
- Manufacturer / SKU: Aven Tools 26700-141-533
- Advertised magnification: 21x–133x
- Display: Built-in 13.3-inch HD monitor
- Included illumination: 4 x 4-inch LED backlight panel for transmitted-light viewing
- Top illumination: Easy-swap LED ring light with sector control
- Viewing options: HDMI output for an external monitor
- Inspection functions: Built-in measurement capability; image and video saving to USB storage or MicroSD card
- Stand and focus: 18-inch track post with fine and coarse focus knobs
- Stand compatibility: Aven boom or articulating-arm stands can be used with the optional MicroVue Arbor accessory
Best uses
Use the included backlight when inspecting thin, translucent, or open-structure samples. Suitable examples from this configuration include filter media, mesh and screens, thin films and membranes, textiles and fibers, and checking translucent materials for visible defects.
What’s included
- MicroVue 2.0 digital microscope (26700-141 platform)
- 18-inch track post stand
- 4 x 4-inch LED backlight panel
Frequently asked questions
What is the magnification range?
The listed range for this configuration is 21x–133x.
When should I use the LED backlight?
Use transmitted light for thin or translucent samples, such as films, membranes, filters, mesh, and fibers, when viewing through the material is useful.
Can I view the image on another screen?
The listing specifies HDMI output for connection to an external monitor. The microscope also has a built-in 13.3-inch HD monitor.
Can the system save images or video?
The listing specifies saving images and video to a USB storage device or MicroSD card.
Can I use a different stand?
The listing notes compatibility with Aven boom and articulating-arm stands when used with the optional MicroVue Arbor accessory.
