Jamco Products BS22YP Flammable Liquid Storage Cabinet, 22 gallon
Jamco Products BS22YP Flammable Liquid Storage Cabinet, 22 gallon

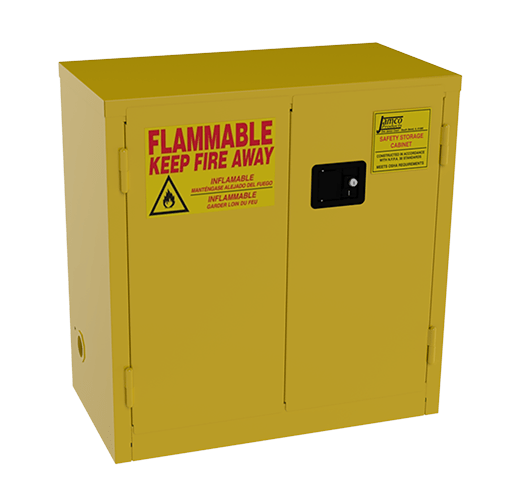

The Jamco Products BS22YP is a 22-gallon, FM Approved flammable liquid storage cabinet with self-closing doors in a compact half-height format. Built from all-welded double-wall 18-gauge steel with a 1-1/2" insulating air space, the BS22YP features 14-gauge double-wall doors with a concealed self-closing mechanism — doors automatically shut, index, and latch when the fusible link melts at 165°F. At 35" tall, it fits under standard countertops while providing the passive fire protection of a self-close cabinet. Includes 3-point locking system, 2" leakproof sill, twin 2" flame arrester vents, and 1 adjustable galvanized steel shelf. Meets OSHA, NFPA Code 30, and UFC 79 standards.
Sold individually.
Specifications
| Property | Value |
|---|---|
| Model | BS22YP |
| Capacity | 22 gallons |
| Dimensions (W x D x H) | 34" x 18" x 35" |
| Number of Doors | 2 (self-close, fusible link at 165°F) |
| Door Construction | Double-wall: 14-gauge outside, 18-gauge inside |
| Body Construction | All-welded double-wall 18-gauge steel, 1-1/2" air space |
| Locking System | 3-point locking, flush-mounted handle, 2 keys included |
| Self-Close Mechanism | Concealed; activates automatically at 165°F |
| Shelves | 1 adjustable galvanized steel shelf (adjusts on 3" centers) |
| Leakproof Sill | 2" |
| Vents | Twin 2" flame arrester vents |
| Hinges | 4" heavy-duty welded hinges with brass pins |
| Finish | Powder-coated yellow (YP) |
| Weight | 187 lbs |
| Leveling Feet | Adjustable, with grounding connector |
| Chemical Storage Max | Class I & II: 60 gal | Class III: 120 gal |
| Compliance | FM Approved; OSHA; NFPA Code 30; UFC 79 |
| Optional Accessory | GS134 additional adjustable galvanized shelf |
Frequently Asked Questions
How does the BS22YP differ from the BS44YP?
The BS22YP is a compact half-height cabinet (22 gal, 35" tall, 1 shelf) that fits under standard countertops, while the BS44YP is a full-height freestanding cabinet (44 gal, 65" tall, 3 shelves). Both feature the same FM Approved self-close fusible link mechanism and OSHA/NFPA Code 30/UFC 79 compliance. Choose the BS22YP for under-counter installation or space-constrained areas.
What is the advantage of self-close over manual close for a smaller cabinet?
In a compact under-counter or lab environment, a self-close cabinet provides passive fire protection without relying on personnel to close the doors during an emergency. The fusible link automatically seals the cabinet at 165°F, containing flammable vapors and liquids even if the area is evacuated.
What chemicals can be stored in the BS22YP?
The BS22YP is rated for Class I and Class II flammable liquids up to 60 gallons total per storage area, and Class III combustible liquids up to 120 gallons. Common examples include acetone, IPA, MEK, and other flammable solvents.
Can an additional shelf be added?
Yes — the optional GS134 additional adjustable galvanized shelf can be added to increase storage capacity within the cabinet.
