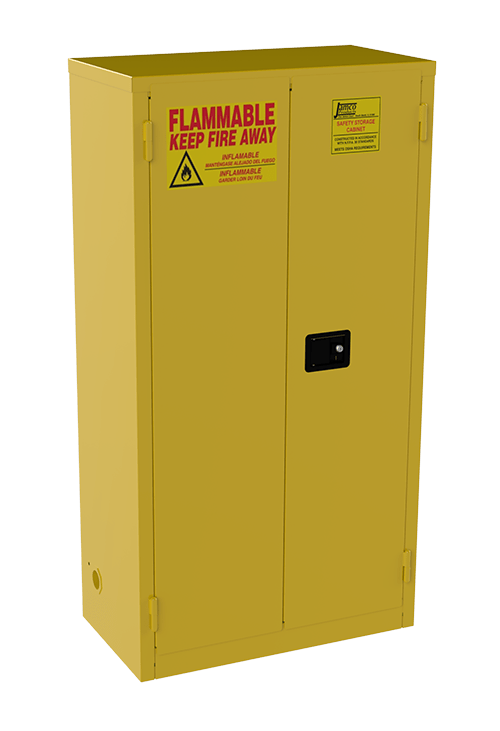

Jamco Products BM44YP Flammable Liquid Storage Cabinet, 44 gallon
Jamco Products BM44YP Flammable Liquid Storage Cabinet, 44 gallon
The Jamco Products BM44YP is a 44-gallon, FM Approved flammable liquid storage cabinet with manual close doors. Built from all-welded double-wall 18-gauge steel construction with a 1-1/2" insulating air space, the BM44YP features 14-gauge double-wall doors with a 3-point locking system, 2" leakproof sill, twin 2" flame arrester vents, and 3 adjustable galvanized steel shelves. Narrower than the BM45YP at 34" wide, making it suitable for tighter spaces while maintaining full 44-gallon capacity. Meets OSHA and NFPA Code 30 standards. Powder-coated yellow finish with safety signage. 56% more steel in the door than competitors.
Sold individually.
Specifications
| Property | Value |
|---|---|
| Model | BM44YP |
| Capacity | 44 gallons |
| Dimensions (W x D x H) | 34" x 18" x 65" |
| Number of Doors | 2 (manual close, open to 180°) |
| Door Construction | Double-wall: 14-gauge outside, 18-gauge inside |
| Body Construction | All-welded double-wall 18-gauge steel, 1-1/2" air space |
| Locking System | 3-point locking, flush-mounted handle, 2 keys included |
| Shelves | 3 adjustable galvanized steel shelves (adjust on 3" centers) |
| Leakproof Sill | 2" |
| Vents | Twin 2" flame arrester vents |
| Hinges | 4" heavy-duty welded hinges with brass pins |
| Finish | Powder-coated yellow (YP) |
| Weight | 304 lbs |
| Leveling Feet | Adjustable, with grounding connector |
| Chemical Storage Max | Class I & II: 60 gal | Class III: 120 gal |
| Compliance | FM Approved; OSHA; NFPA Code 30 |
| Optional Accessory | GS134 additional adjustable galvanized shelf |
Frequently Asked Questions
How does the BM44YP differ from the BM45YP?
The BM44YP is 34" wide with 3 adjustable shelves and weighs 304 lbs. The BM45YP is 43" wide with 2 shelves and weighs 345 lbs. Both are 44–45 gallon capacity and share the same FM Approved double-wall construction. Choose the BM44YP for tighter spaces where a narrower footprint is needed, or when more shelf positions are preferred.
What does FM Approved mean for a flammable storage cabinet?
FM Approval (Factory Mutual) is an independent third-party certification verifying the cabinet meets rigorous fire protection performance standards. FM Approved cabinets are tested and certified to contain flammable liquid fires and are recognized by OSHA and fire marshals as meeting safety requirements.
What chemicals can be stored in the BM44YP?
The BM44YP is rated for Class I and Class II flammable liquids up to 60 gallons total, and Class III combustible liquids up to 120 gallons. Common examples include acetone, IPA, MEK, toluene, and other flammable solvents used in industrial and laboratory settings.
Does the cabinet include a grounding connector?
Yes — the BM44YP includes adjustable leveling feet and a grounding connector to dissipate static electricity, reducing ignition risk when dispensing flammable liquids.
