ACL Staticide DMP2460LB Light Blue 24" x 60" Dualmat Kit
ACL Staticide DMP2460LB Light Blue 24" x 60" Dualmat Kit
Cover a longer electronics workbench with the 24" x 60" light blue ACL Staticide Dualmat and the listed grounding and mat-care accessories. MTE Solutions assembles this combination; it is not an ACL factory-packaged kit. The mat has a dissipative top and conductive bottom for use in a properly designed ESD-control work area.

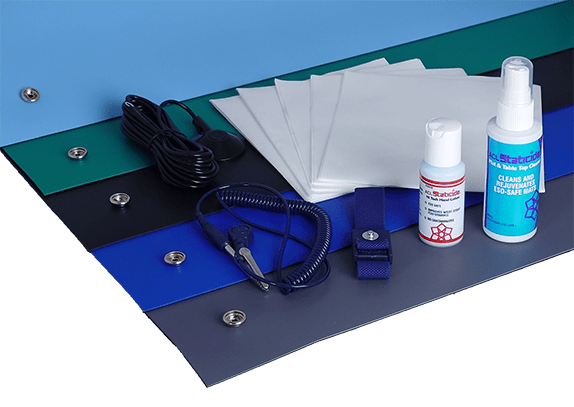

Included in This MTE-Assembled Bundle
- DMP2460LB: light blue 24" x 60" x 0.080" ACL Dualmat
- 8090: ground cord
- 6001S: mat cleaner
- 7001S: hand lotion
- 8150: wrist strap and cord combo
- LF50S: wipe sample
Best Uses / Applications
Choose this format for electronics assembly, component handling, rework or inspection benches that need five feet of mat length. Use the cord and wrist strap as part of a separately installed and tested grounding system; follow your facility's instructions for routine mat cleaning.
ACL Dualmat Mat Specifications
| Mat part number | DMP2460LB |
|---|---|
| Dimensions and color | 24" x 60" x 0.080"; light blue |
| Material | Two-layer cross-linked rubber, static-dissipative top and conductive bottom |
| Finish and attachment points | Embossed; two 10 mm female snaps on the pre-cut mat |
| Manufacturer-stated resistance | Top: 10^6–10^8 ohms; bottom: less than 5 × 10^5 ohms |
These are ACL mat properties, not certification of the MTE combination or the completed workstation. Install and verify the workstation under your ESD-control program rather than assuming ANSI/ESD S20.20 conformity from the product alone.
Size Comparison
| Mat format | When to consider it |
|---|---|
| 24" x 36" | Shorter bench coverage |
| 24" x 48" | Intermediate bench coverage |
| This 24" x 60" bundle | Five feet of mat length with the accessories listed above |
Frequently Asked Questions
Is this kit packaged by ACL?
No. MTE Solutions assembles the listed combination.
Does the bundle include a wrist strap?
Yes. It includes the listed 8150 wrist strap and cord combo.
What are the mat dimensions?
24" x 60" x 0.080" in light blue.
How does the mat connect to ground?
ACL specifies two 10 mm female snaps on the pre-cut mat, and this bundle includes an 8090 ground cord. Follow your grounding procedures.
Does purchase certify an ANSI/ESD S20.20 workstation?
No. The installed workstation and ESD program require their own verification.
