Thermaltronics TMT-5000S-2 Soldering System with SHP-T, 220–240V
Thermaltronics TMT-5000S-2 Soldering System with SHP-T, 220–240V
Listed lead time: 3–4 weeks. Contact MTE Solutions to confirm current availability before ordering.

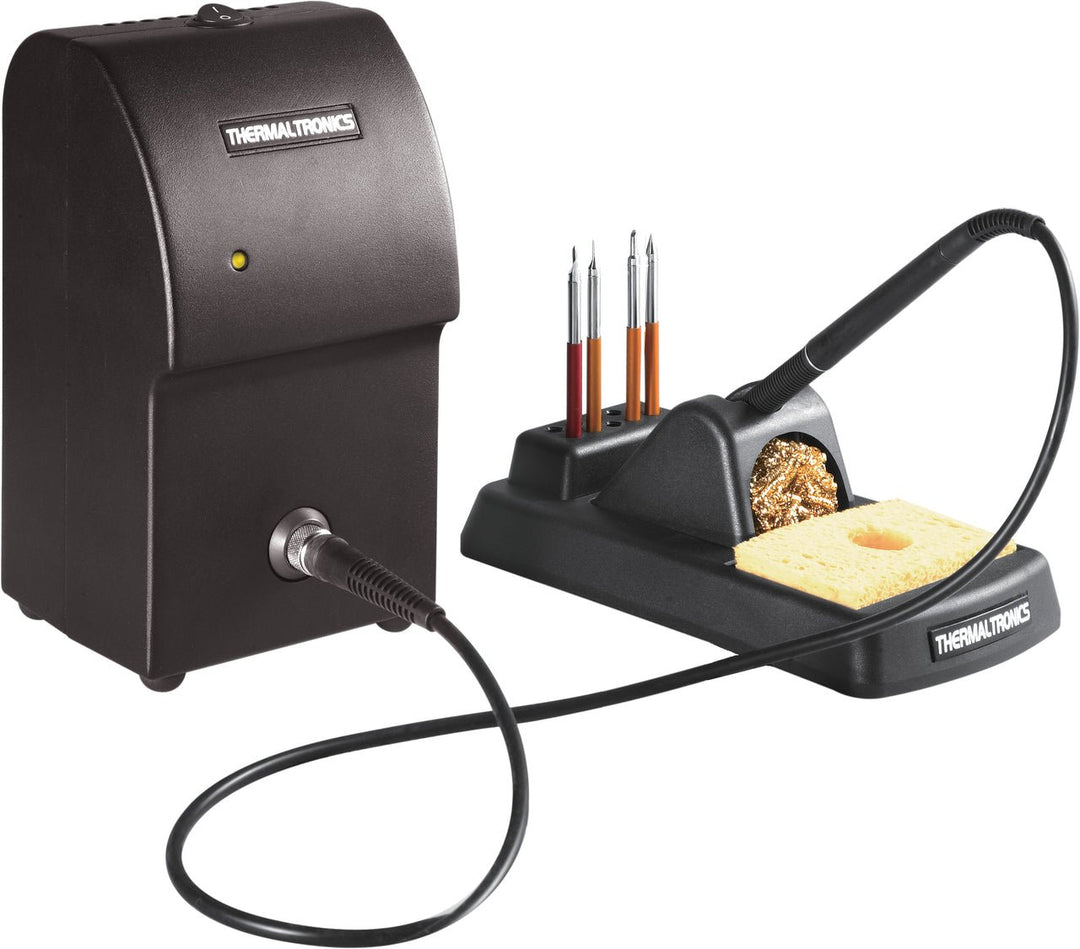

The Thermaltronics TMT-5000S-2 is the 220–240VAC configuration of the TMT-5000S soldering platform, supplied with an SHP-T soldering handpiece and SHH-2 sleep workstand. It uses Thermaltronics T Series tip cartridges. Curie Heat Technology operates at 13.56MHz and automatically adjusts power output to respond to each solder joint's thermal demand, with a maximum output of 30W RF.
This is not the 100–110V model or a universal-input station. Power cord is not included in this listing. Confirm the installation voltage, suitable cord and required tip cartridge before ordering.
Best Uses / Applications
- Electronics assembly benches with a verified 220–240VAC supply.
- PCB prototyping and through-hole soldering with a suitable T Series cartridge.
- Service and repair departments standardizing on SHP-T handpieces.
- Compact workstations requiring a soldering system with a sleep workstand.
- Bench processes requiring cartridge geometries matched to different joints.
Key Features
- Curie Heat Technology automatically regulates power in response to joint demand.
- 13.56MHz operating frequency and maximum 30W RF output.
- SHP-T soldering handpiece and SHH-2 sleep workstand.
- Thermaltronics T Series cartridge compatibility.
- Idle temperature stability of ±1.1°C / ±2°F.
- 220–240VAC, 50/60Hz input for the -2 configuration.
Technical Specifications
| Manufacturer | Thermaltronics |
|---|---|
| System model | TMT-5000S-2 |
| Power-supply configuration | TMT-5000PS-2 |
| Input voltage | 220–240VAC |
| Input frequency | 50/60Hz |
| Maximum output power | 30W RF |
| Output frequency | 13.56MHz |
| Heating technology | Curie Heat Technology |
| Handpiece / tip family | SHP-T / T Series |
| Tip-to-ground potential | 2mV, true RMS, 50–500Hz |
| Tip-to-ground resistance | Less than 2Ω DC |
| Idle temperature stability | ±1.1°C / ±2°F |
| Ambient operating temperature | 10–40°C / 50–104°F |
| Maximum enclosure temperature | 50°C / 122°F; not soldering-tip temperature |
| Fuse, -2 power supply | 250V, 0.5A |
| Dimensions, W × H × D | 112 × 205 × 117mm |
| Listed unit weight | 2.58kg; not shipping weight |
Package Contents
| Reference | Item |
|---|---|
| TMT-5000PS | Power supply; -2 voltage configuration for this system |
| SHH-2 | Sleep workstand |
| SHP-T | Soldering handpiece |
| RMP-1 | Tip removal pad |
| SG-1-BK | Black handpiece grip |
| SG-1-GR | Green handpiece grip |
| CC-1 | Connection cable |
| BC-1 | Brass curls |
| SPG-1 | Sulphide-free sponge |
The manufacturer's packing list does not identify an included tip-cartridge part number. Confirm tip contents and choose the appropriate T Series geometry and temperature grade. The power cord is excluded according to this listing.
TMT-5000S-2 vs. TMT-5000S-1
| Consideration | TMT-5000S-2 | TMT-5000S-1 |
|---|---|---|
| Input voltage | 220–240VAC | 100–110VAC |
| Power-supply reference | TMT-5000PS-2 | TMT-5000PS-1 |
| Fuse specification | 250V, 0.5A | 125V, 1A |
| Platform tip family | T Series | T Series |
Choose the version for the installation supply and check the equipment label before connection. The -1 and -2 versions are not interchangeable universal-voltage units. Rated RF output alone does not establish suitability for every joint.
Setup and Maintenance
Verify supply voltage, power-cord suitability and cartridge compatibility before installation. Select T Series geometry and temperature grade for the alloy, joint and component. Follow the manufacturer's sleep-workstand, cartridge-change and shutdown instructions. Use suitable fume control, keep the working surface clean and tinned, and avoid impact, excessive pressure and abrasive damage to plated tips. Automatic regulation does not replace safe-handling training or process verification.
Frequently Asked Questions
What voltage does TMT-5000S-2 require?
The -2 configuration requires 220–240VAC. Check the equipment label and installation supply before use.
Can I connect it directly to a 100–110V supply?
It is not specified for that input. Thermaltronics lists the separate TMT-5000S-1 configuration for 100–110VAC.
Which handpiece and tips does it use?
The supplied handpiece is SHP-T and uses Thermaltronics T Series cartridges. Choose the geometry and temperature grade for your process.
Is a power cord included?
No. This listing specifies that the power cord is not included. Confirm a suitable cord before ordering.
Is a tip cartridge supplied?
The manufacturer does not name an included cartridge part number in the shared packing list. Confirm current tip contents when ordering.
What workstand comes with the system?
The vendor packing list specifies the SHH-2 sleep workstand.
What do the 30W and 50°C specifications mean?
30W RF is the maximum output power at 13.56MHz. The 50°C figure is maximum enclosure temperature, not soldering-tip temperature.
What is the expected lead time?
This listing carries a 3–4 week lead-time notice. Contact MTE Solutions to confirm current availability and delivery expectations.
