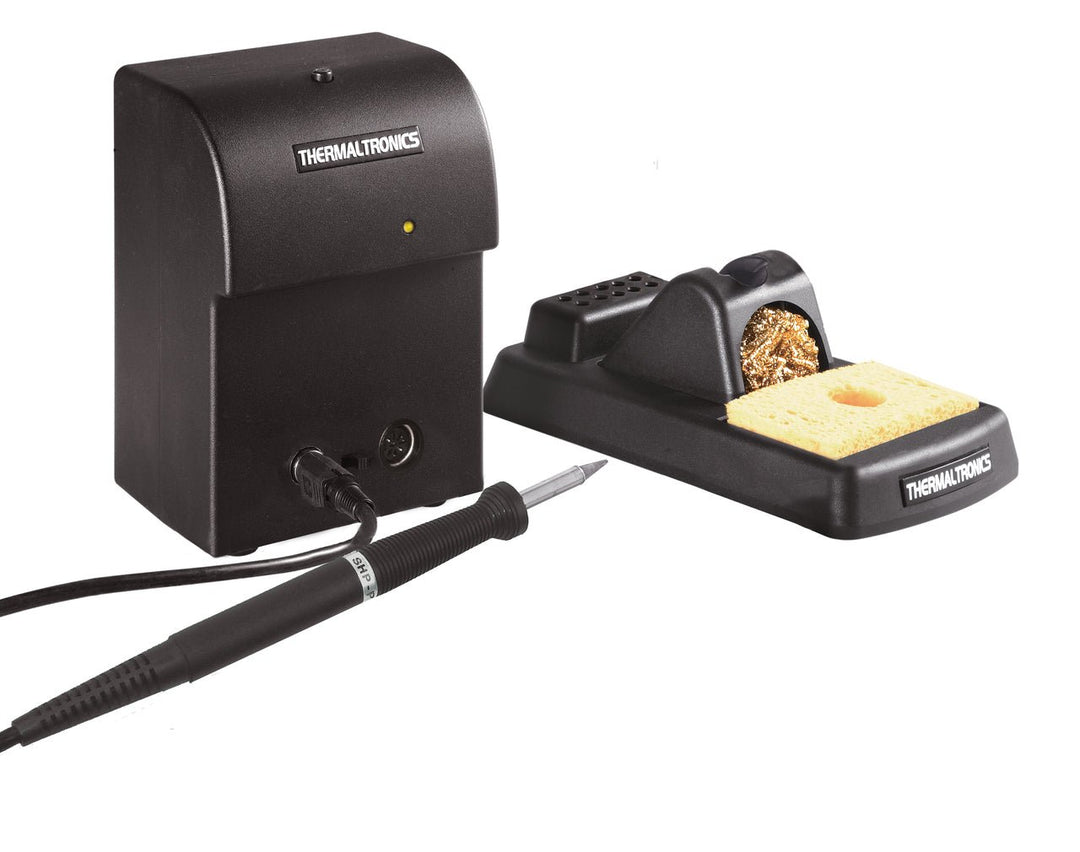

Thermaltronics TMT-2000S-P Soldering System With SHP-P Handpiece, 100-240 VAC
Thermaltronics TMT-2000S-P Soldering System With SHP-P Handpiece, 100-240 VAC
Listed lead time: 3–4 weeks. Contact MTE Solutions to confirm current availability before ordering.
The Thermaltronics TMT-2000S-P is a compact soldering system supplied with the SHP-P handpiece for P Series tips. Its Curie Heat Technology operates at 470 kHz and responds to the thermal demands of the solder joint by adjusting power. With a maximum 50W RF output and 100–240 VAC input, it offers a compact setup for electronics assembly and repair benches.
Best Uses / Applications
- PCB assembly and electronics repair with an appropriately selected P Series tip.
- Production benches handling varied joint sizes and thermal loads.
- R&D and prototyping where tip geometry must suit component access.
- Bench installations requiring a compact power supply and wide input-voltage range.
Key Features
- Curie Heat Technology responds to changing thermal demand at the joint.
- 470 kHz operating frequency with maximum 50W RF output.
- SHP-P handpiece supplied for the P Series tip configuration.
- Compact power supply measuring 110 × 155 × 92 mm.
- System platform supports K, P and S Series configurations with the appropriate compatible handpiece; do not assume every series fits the supplied SHP-P handle.
Technical Specifications
| Brand / model | Thermaltronics TMT-2000S-P |
|---|---|
| Included handpiece | SHP-P, for P Series tips |
| Input voltage | 100–240 VAC |
| Input frequency | 50/60 Hz |
| Input power specification | 55W |
| Maximum output power | 50W RF |
| Output frequency | 470 kHz |
| Tip-to-ground potential | 2 mV, true RMS, 50–500 Hz |
| Tip-to-ground resistance | Less than 2 Ω DC |
| Idle temperature stability | ±1.1°C / ±2°F |
| Maximum enclosure temperature | 50°C / 122°F |
| Fuse specification | 250V, 1A |
| Dimensions, W × H × D | 110 × 155 × 92 mm |
| Weight | 1.3 kg |
Packing List
| Part | Description |
|---|---|
| TMT-2000PS | Power supply |
| SHH-4 | Soldering handpiece holder |
| SHP-P | Soldering handpiece for P Series tips |
| RMP-1 | Tip removal pad |
| CC-1 | Connection cable |
| BC-1 | Brass curls |
| SPG-1 | Sulphide-free sponge |
The listed packing contents do not identify an included tip. Confirm tip inclusion and select the appropriate P Series geometry before ordering.
Configuration and Buying Comparison
| Buying consideration | TMT-2000S-P | What to verify when comparing |
|---|---|---|
| Handpiece and tips | SHP-P for P Series tips | Match the exact handpiece to its tip family; other TMT-2000S configurations differ |
| Heating approach | Curie Heat Technology | Temperature selection method and tip options for the process |
| Power figures | 55W input specification; 50W maximum RF output | Do not compare input consumption directly with another station's heater or output rating |
| Supply voltage | 100–240 VAC, 50/60 Hz | Required local cord, plug and installation conditions |
| Workstation space | 110 × 155 × 92 mm power supply | Allow additional space for the handpiece holder and safe work area |
Use and Maintenance Guidance
Match tip geometry and temperature characteristics to the solder alloy and joint. Keep the working tip clean and tinned, avoid excessive pressure and return the handpiece to its holder between joints. Use appropriate fume control and follow the manufacturer's operating and servicing instructions.
Frequently Asked Questions
What does the -P configuration include?
This listing pairs the TMT-2000S power supply with the SHP-P handpiece for P Series tips. The packing list also includes a holder, removal pad, connection cable, brass curls and sulphide-free sponge.
Can the supplied SHP-P handpiece use every K, P and S Series tip?
Do not assume interchangeability. The system platform supports different configurations, but the supplied SHP-P handpiece is specified for P Series tips. Confirm the appropriate handpiece before changing tip families.
Is a soldering tip included?
The listed packing contents do not identify an included tip. Contact MTE Solutions to confirm and choose the correct P Series tip for the application.
What supply voltage does it accept?
The input specification is 100–240 VAC at 50/60 Hz. Confirm the required cord and plug configuration for the installation.
How much power does the system provide?
Maximum output is 50W RF at 470 kHz. The input specification is 55W; these are different ratings and should not be treated as interchangeable.
What is Curie Heat Technology?
It is Thermaltronics' heating approach that responds to the thermal demands of the solder joint by adjusting power. Select the compatible tip configuration to suit the soldering process.
Is this suitable for every PCB or lead-free process?
Suitability depends on the solder alloy, joint thermal load, component access and selected tip. Check these factors rather than choosing solely by the maximum power rating.
What is the current lead time?
The listing carries a 3–4 week lead-time notice. Contact MTE Solutions for current availability and delivery timing before placing a time-sensitive order.
