PVA FCS300-R-SYR-H Handheld Coating System

PVA FCS300-R-SYR-H Handheld Coating System

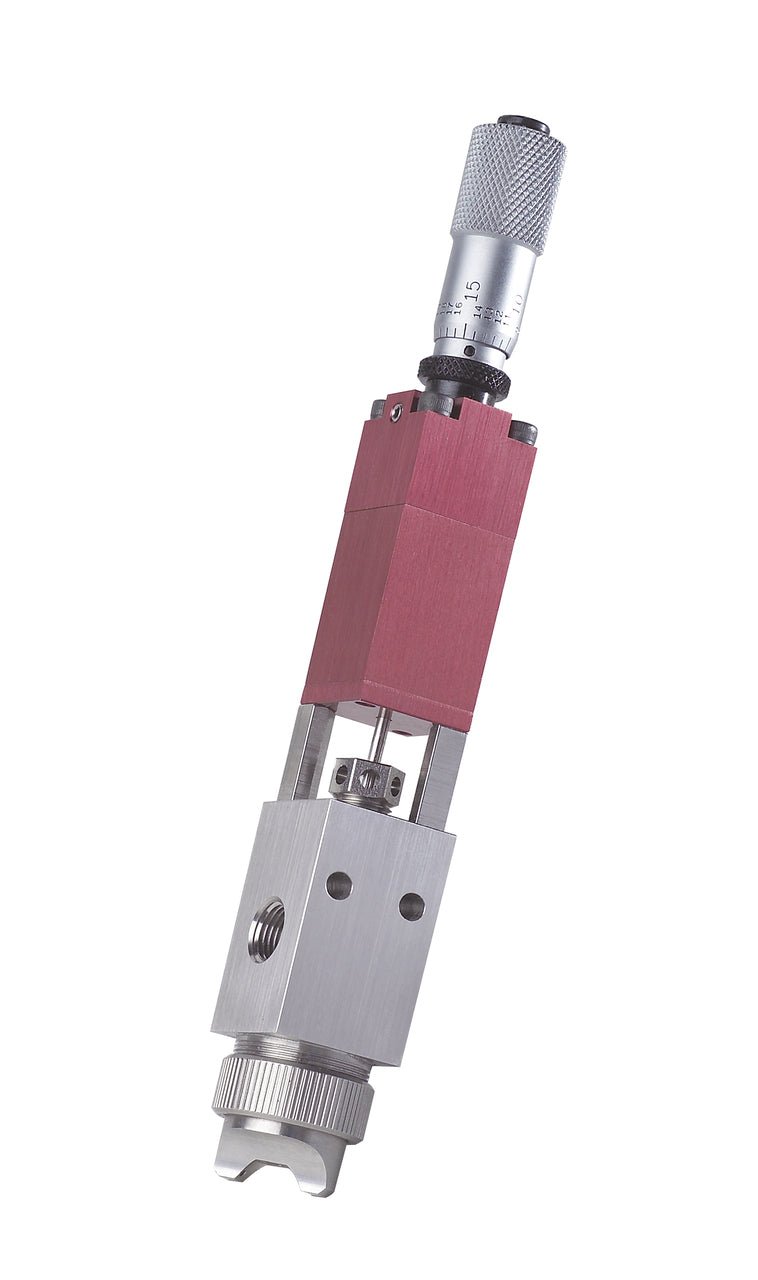

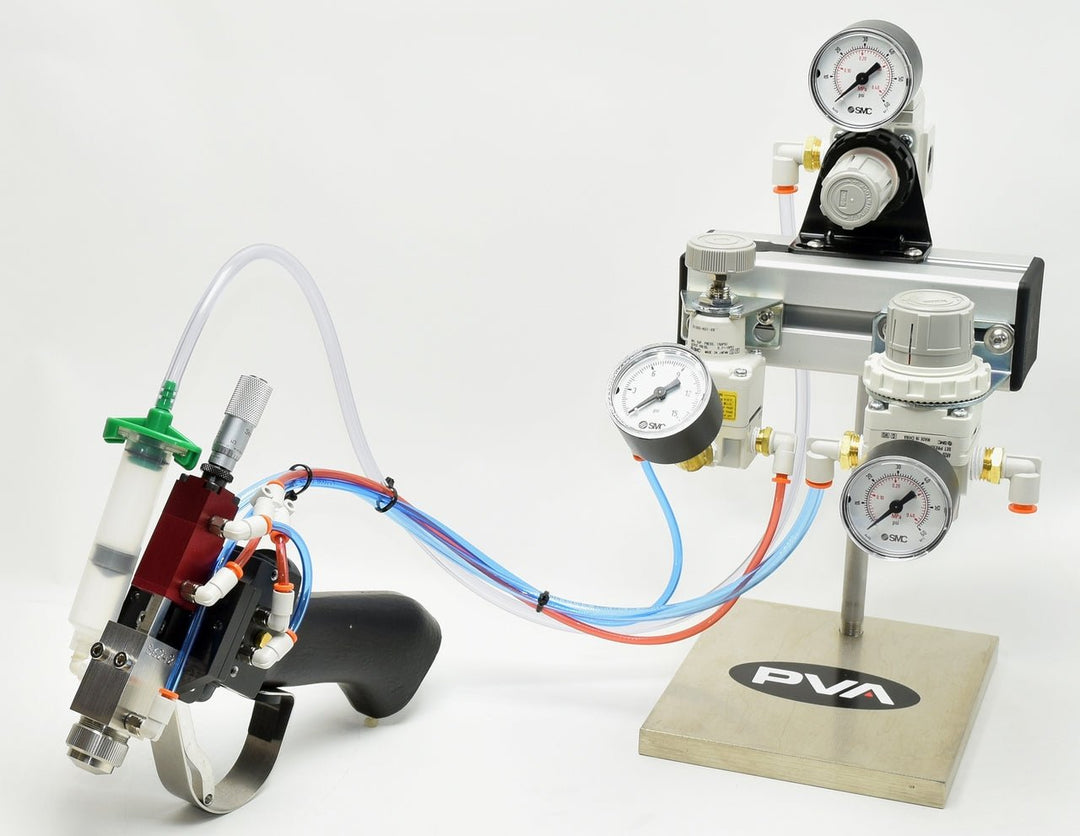

This complete manual spray system is typically used for handheld conformal coating applications. It utilizes the FCS300-R spray valve mounted to a pneumatic trigger handle for simple activation and accurate control of the atomized fluid.

Supplied with a 30cc polyethylene syringe mounted directly to the valve, this configuration can be used to hold small volumes of a coating for low production runs. Coating chemistries can be quickly and easily changed over, with minimal cleanup time.

Complete systems are supplied with all necessary fluid and air fittings and tubing to operate out of the box.

System Specifications

Dispense Valve
FCS300-R
Spray Pattern Diameter
6.35 mm - 50.8 mm
(0.25 in - 2 in)
Fluid Reservoir
30 cc syringe
Fluid Viscosity Range
1 cps - 20,000 cps (self-leveling fluid)
Wetted Components
Stainless Steel, Teflon, Kalrez, Polypropylene
Air
80 psi
(5.5 bar)
Optional Additions
PV106-S valve stand with purge cup
FX800 fume extraction system

The FCS300-R-SYR-H has many additional integrated features including:

• Low volume, low pressure atomized spray valve for manual conformal coating of PCBs
• 0 – 15 psi precision atomizing air regulator
• Hand trigger activation
