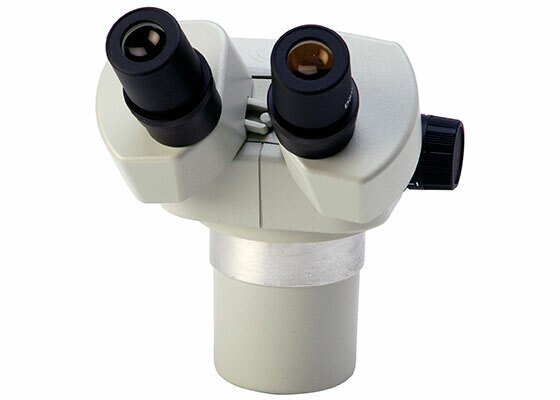

SPZ-50 Stereo Zoom Microscope [6.7x - 50x]
Provides crisp clear 3D images, long working distance and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces.
SPZ binocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for high throughput inspection stations and engineering and science labs. High precision optics ensures excellent contrast and high definition 3D images from edge to edge. Magnification range from 2.25x to 200x with optional auxiliary lenses and eyepieces. A wide variety of stands and illumination is available to provide you with a microscope system to meet your individual requirements. NOTE: 0.5x Auxiliary Lens cannot be used on this SPZ series body with stand P, PF, T and TL
Wide Magnification Range
Aven’s SPZ-50 Stereo Zoom Microscope has a magnification range of 6.7x to 50x, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces.
Zoom Adjustment
Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.
High Eye Point
10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.
Features
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") -the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
Specs
SPZ-50 Stereo Zoom Microscope | |
---|---|
Body Type | Binocular, 360° rotatable, 45° inclined eyepiece tube |
Eyepieces | Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range |
Auxiliary lens | 0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope |
Working Distance | 108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens |
Zoom Ratio | 7.46:1 |
Diopter Adjustment | On both eye tubes: +5.6D-.72D |
Interpupillary Distance | Adjustable from 52 to 75mm |
Optical System | Greenough |
Package Contents | 1 ea. SPZ Binocular Stereo Zoom Microscope Body 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual |
Weight | 5lb |
