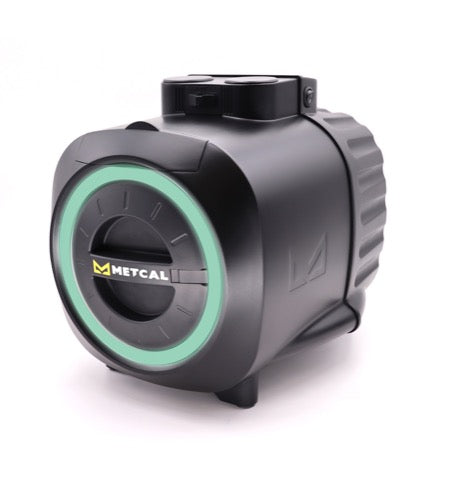

Metcal BVX-250, Fume Extractor Unit, HEPA 13/Gas Filter and Pre-filter
Metcal BVX-250 — 2-Station Portable Fume Extractor, HEPA 13/Gas Filter
*2 Week Lead Time
The Metcal BVX-250 is a compact, high-performance portable fume extractor designed for two-station use. Featuring 99.97% efficiency HEPA 13 filtration, twice the suction power of previous BVX models, and a quick 30-second filter change system, the BVX-250 delivers quiet, effective fume, smoke, dust, and vapor removal at the benchtop. Compatible with previous BVX and Omniflex arms and hoses (sold separately). Communicates directly with Metcal CV and GT Series soldering systems.
Key Specifications
| Specification | Detail |
|---|---|
| Max. Airflow (free blowing) | 297 m³/h (175 cfm) |
| Flow Rate | 2 × 75 m³/h (45 cfm per station) |
| Static Pressure | 1,743 Pa (7" WC) |
| Noise Level | <55 dBA (medium setting) |
| Voltage | 100–240 VAC, 1 phase |
| Frequency | 50/60 Hz |
| Power | 150 W |
| Dimensions (W × D × H) | 268 × 400 × 320 mm (10.5" × 16" × 13") |
| Weight | 12 lbs / 5.5 kg |
| Safety Compliance | UL, CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV |
| SKU | BVX-250 |
Features
- 99.97% efficiency HEPA 13 / Gas main filter
- Easy 30-second filter changes
- 2× the suction power of previous BVX models
- Three power levels with LED status ring indicator
- 360° rotating/removable air diverter
- Quiet operation (<55 dBA)
- Remote switch included
- Small footprint — fits under or on the benchtop
- Compatible with previous BVX & Omniflex arms and hoses
- Communicates with Metcal CV & GT Series soldering systems
- Optional deep bed gas filter available (FG-BVX250, sold separately)
- New circular & rectangular nozzles with nozzle filters available

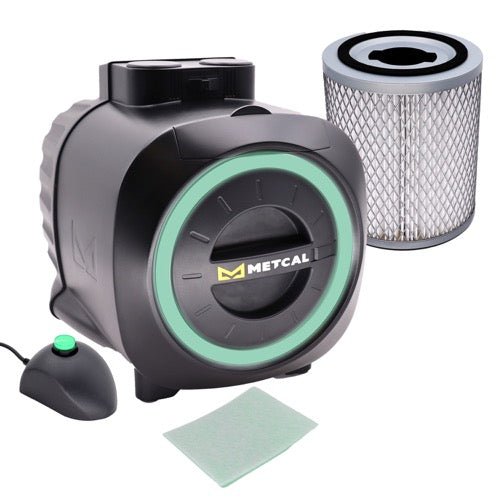

What’s Included
- BVX-250 Fume Extraction Unit
- HEPA 13 / Gas Main Filter
- Pre-Filter
- Remote Switch
Frequently Asked Questions
How many soldering stations can the BVX-250 support?
The BVX-250 supports two simultaneous stations, with a flow rate of 75 m³/h (45 cfm) per port.
Is the BVX-250 compatible with my existing BVX arms and hoses?
Yes — the BVX-250 is backward-compatible with previous BVX and Omniflex arms and hoses. Arms and hoses are sold separately.

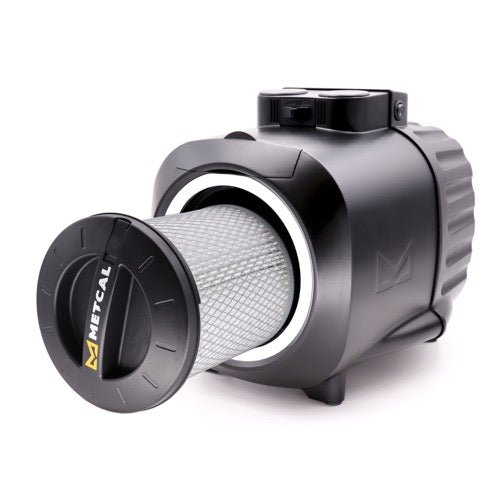

How long does a filter change take?
Filter changes take approximately 30 seconds with no tools required. The LED status ring indicates green (active), blue (idle), or amber/red (filter change needed or incorrect installation).
Does the BVX-250 work with Metcal soldering systems?
Yes — the BVX-250 communicates directly with Metcal CV and GT Series soldering systems for integrated operation.
What is the lead time for the BVX-250?
The BVX-250 has an approximate 2-week lead time. Contact MTE Solutions for current availability and pricing on volume orders.
