JBC Tools B·IRON 210 DUAL, BISS-5A Battery-Powered Soldering System

JBC Tools SKU: BISS-5A
Price
Regular price $1,225.00
Regular price Sale price $1,225.00
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

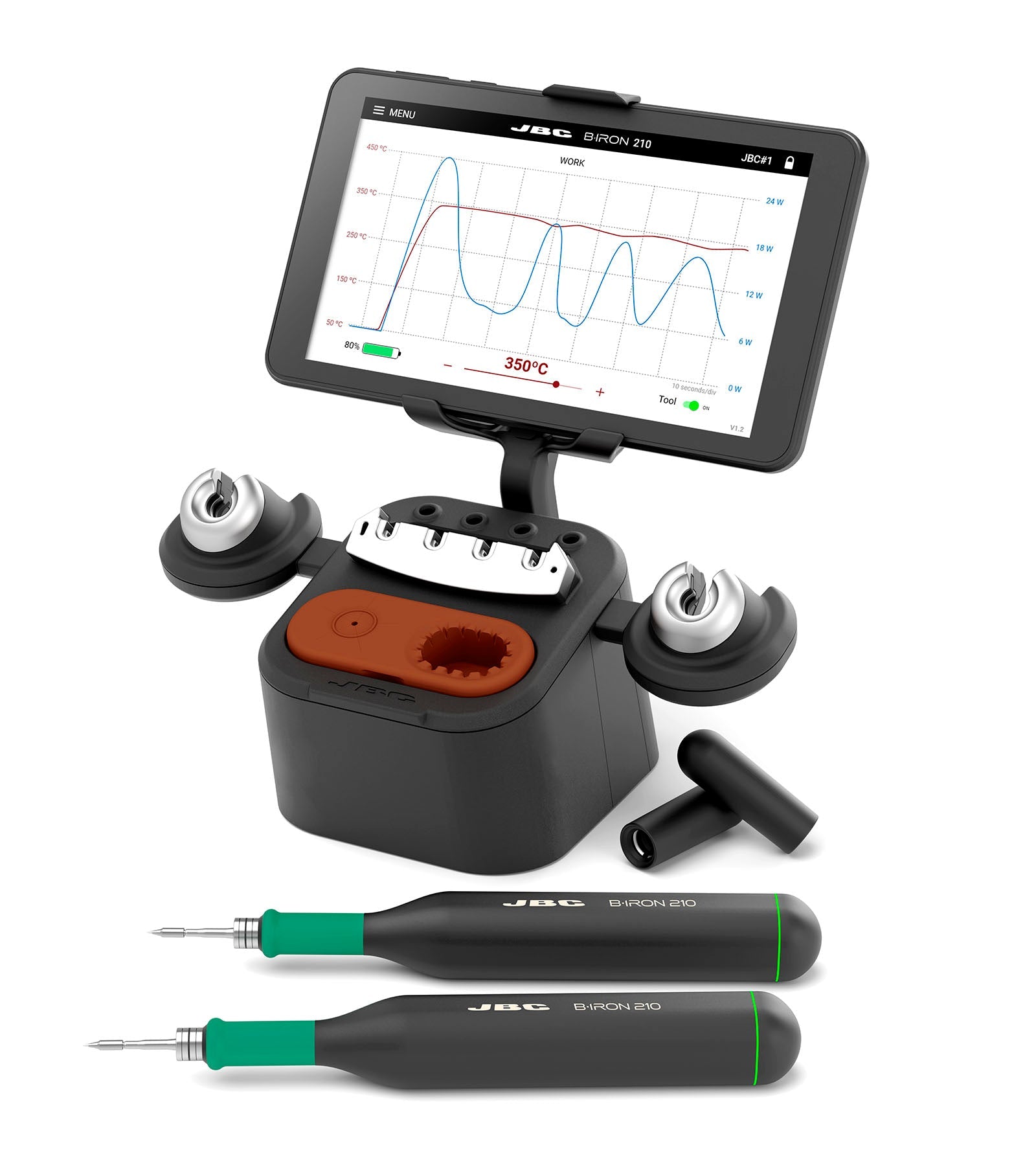

JBC Tools B·IRON 210 DUAL, Battery-Powered Soldering System

BIRON 210 performs up to 500 SMD soldering joints per charge and is specially designed for soldering SMDs.

This station converts into a dual-tool station by adding an extra Tool Holder and Tool. Both tools can be controlled in real time.

Included:

• B210 Precision Handle (x2) fully compatible with C210 Cartridge Range. It also has a power safe mode that can be activated by putting on the cap.

• Charging Base charges the tool automatically when placed in the Tool Holder and allows adjusting the angle to suit the operator´s needs.

It also features Quick Cartridge Exchanger, which enables a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.

• PDS Portable Display 7" with B·IRON App to configure and control the system. Alternatively, use your own device.  You can download the APP from:



Check out more information about features of B·IRON.


1 Instruction Manual
1 BPS Charging Base for B115/B210 B·IRON Handles
2 B210 Precision Handle for B·IRON
2 C210001 Conical Cartridge Ø 0.3
1 DPS Portable Display 7" for B·IRON


CHARGING BASE
Input voltage: 100 V - 240 V 50/60 Hz
Power: 40 W
Tool output: 12 V / 1000 mA
USB output: 5 V / 1000 mA
TOOL
Output peak power: 24 W
Battery: Li-Ion 7.4V / 750 mAh
Charge time: 60 minutes
Selectable temperature: 100 to 450ºC / 210 to 840ºF
Idle temp. stability (still air): ±1.5 °C / ±3 °F
Temperature accuracy: ± 3% (Using reference cartridge)
Connections: Bluetooth Low Energy (BLE)
Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
Tool Weight: 75 g / 0.165 lb
WEIGHT AND DIMENSIONS
Package
265 x 223 x 160 mm / 2.82 kg.
10.43 x 8.78 x 6.30 in / 6.22 lb.
