JBC Tools B·IRON 210, BIS-5A Battery-Powered Soldering System
JBC Tools B·IRON 210 BIS-5A Battery-Powered Soldering System — Up to 500 SMD Joints Per Charge

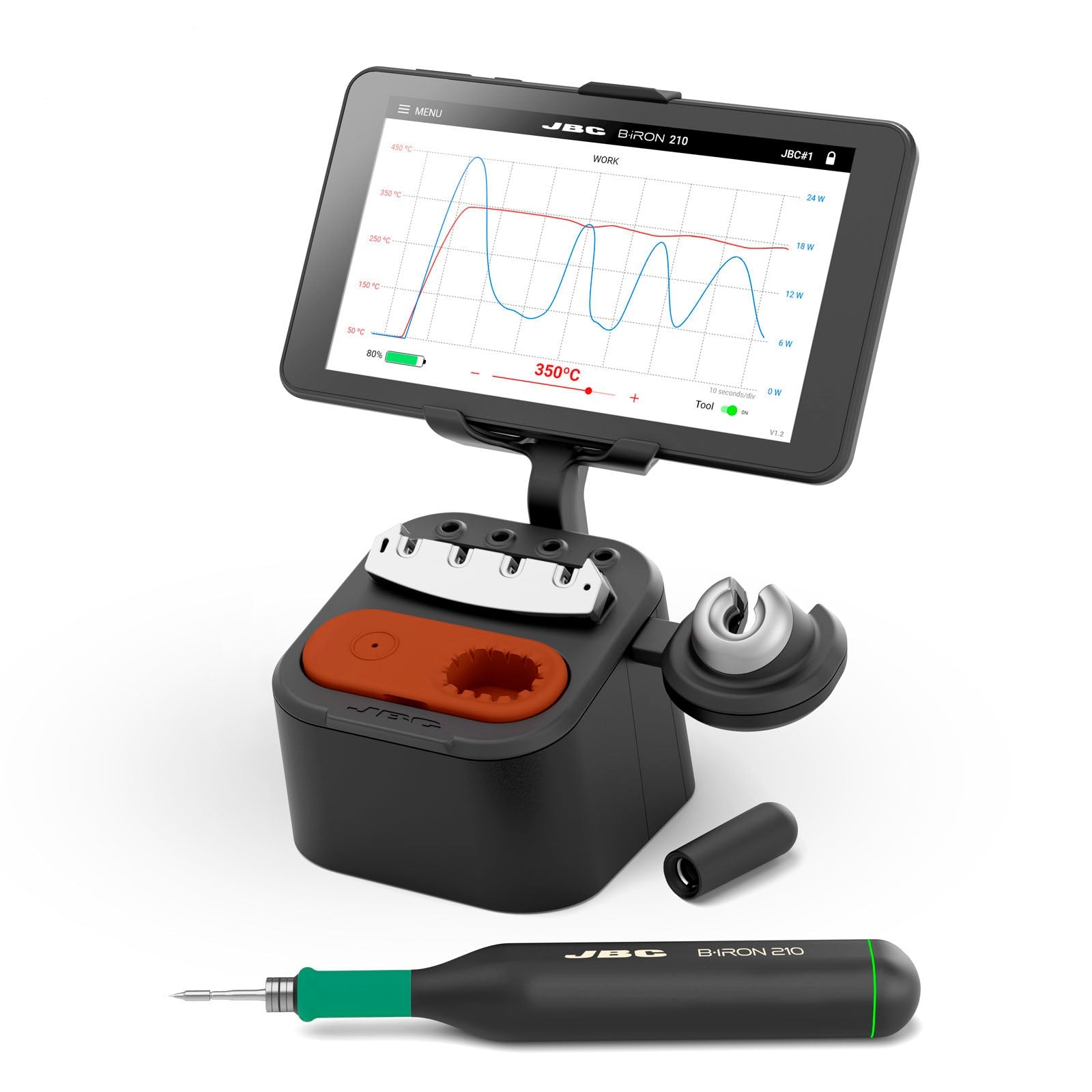

The JBC Tools B·IRON 210 (BIS-5A) is a professional cordless battery-powered soldering system engineered for SMD soldering in production, field service, and any application where a tethered iron is impractical. The B210 precision handle is fully compatible with the JBC C210 cartridge range — the same cartridges used in JBC’s corded stations — delivering up to 500 SMD soldering joints per charge with 24W peak output power and ±1.5°C idle temperature stability. The system charges automatically when placed in the BPS charging base and is controlled via the included DPS Portable 7" display or the free B·IRON app (iOS/Android via Bluetooth). Temperature is selectable from 100–450°C (210–840°F). Tool weight is just 75g.
Sold individually. Includes: B210 Precision Handle, BPS Charging Base, DPS Portable 7" Display, C210001 Conical Cartridge Ø 0.3, Instruction Manual.
Specifications
| SKU / Part Number | BIS-5A |
|---|---|
| Brand | JBC Tools |
| System | B·IRON 210 |
| Handle | B210 Precision Handle (C210 cartridge compatible) |
| Output Peak Power | 24 W |
| Battery | Li-Ion 7.4V / 750 mAh |
| Charge Time | 60 minutes |
| Joints Per Charge | Up to 500 SMD joints |
| Temperature Range | 100–450°C / 210–840°F |
| Idle Temp. Stability | ±1.5°C / ±3°F (still air) |
| Temperature Accuracy | ±3% (using reference cartridge) |
| Connectivity | Bluetooth Low Energy (BLE) |
| Tool Weight | 75 g / 0.165 lb |
| Charging Base Input | 100–240V, 50/60 Hz, 40W |
| Charging Base Tool Output | 12V / 1,000 mA |
| Charging Base USB Output | 5V / 1,000 mA |
| Ambient Operating Temp | 10–50°C / 50–122°F |
| System Weight | 1.751 kg (3.86 lb) |
| Dimensions | 265 x 223 x 160 mm |
| Included | B210 Precision Handle, BPS Charging Base, DPS Portable 7" Display, C210001 Conical Cartridge Ø 0.3, Instruction Manual |
JBC Tools B·IRON Product Information Page
Frequently Asked Questions
How many solder joints can the B·IRON 210 complete on a single charge?
JBC rates the B·IRON 210 at up to 500 SMD soldering joints per charge. Actual joint count will vary based on solder joint size, thermal mass of the components and pads, tip temperature setting, and dwell time per joint. For high-volume SMD rework or production use, the BPS charging base automatically recharges the handle when placed in the holder between uses, minimizing downtime.
Is the B·IRON 210 compatible with standard JBC C210 cartridges?
Yes. The B210 precision handle is fully compatible with the entire JBC C210 cartridge range — the same cartridges used in JBC’s corded T210 and T245 stations. This means you can use the same tip profiles across your corded and cordless JBC tools, simplifying tip inventory. The system ships with a C210001 conical cartridge (Ø 0.3mm) for fine SMD work.
What is the difference between the B·IRON 210 (BIS-5A) and the B·IRON 210 DUAL (BISS-5A)?
The BIS-5A (this product) is the single-handle system — one B210 handle, one BPS charging base, and one DPS display. The BISS-5A DUAL includes two B210 handles and a dual charging base, allowing one handle to charge while the other is in use — effectively providing continuous cordless operation for high-volume production environments. If uninterrupted cordless soldering is required, the DUAL system is the better choice.
Can I control the B·IRON 210 from my phone or tablet?
Yes. The B·IRON 210 connects via Bluetooth Low Energy (BLE) to the free JBC B·IRON app, available for Android (Google Play and direct APK download) and iOS (App Store). The app allows you to configure temperature settings, monitor battery status, and control the system from your device. The included DPS Portable 7" display provides the same control functionality without a separate device.
