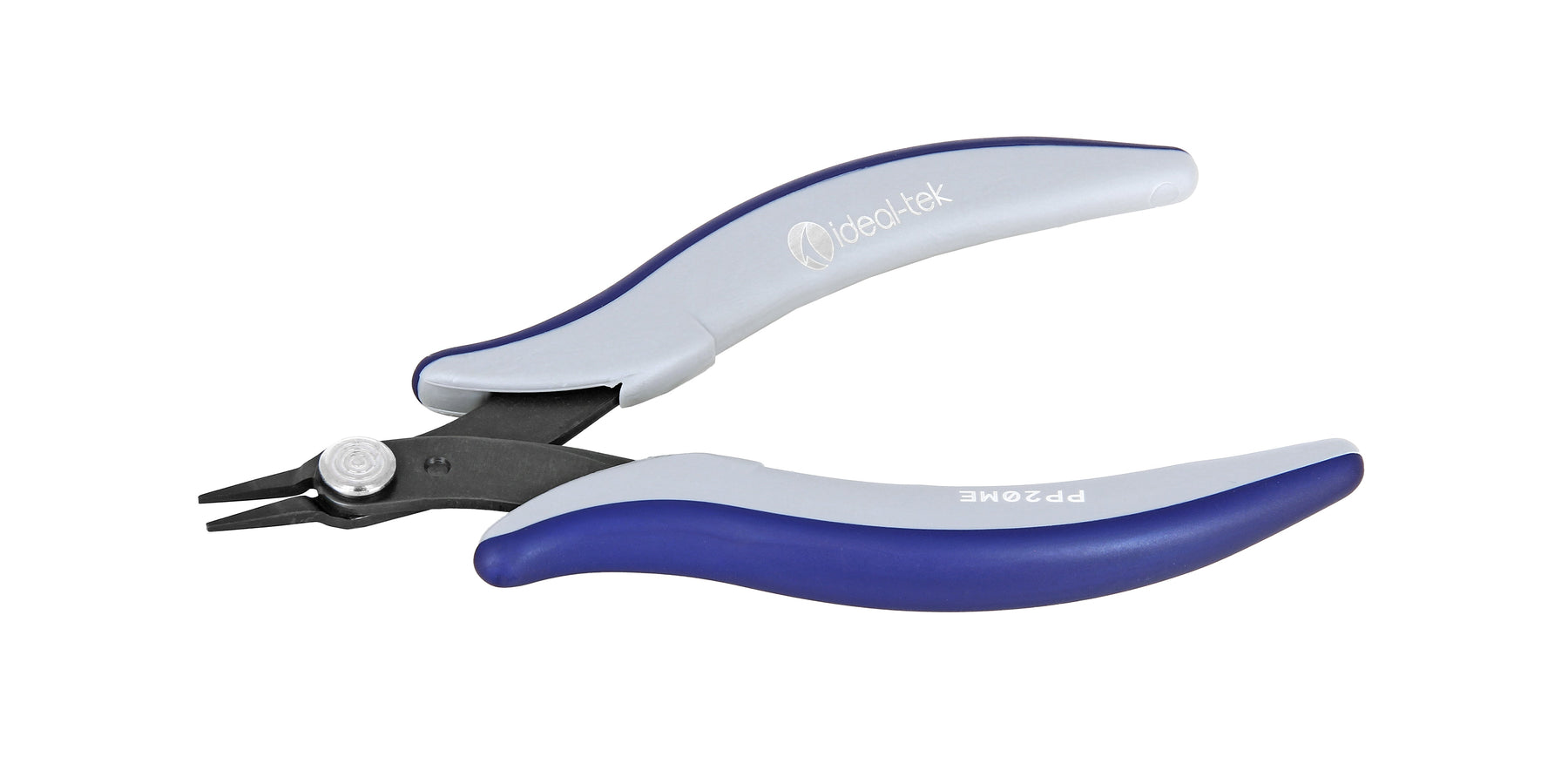

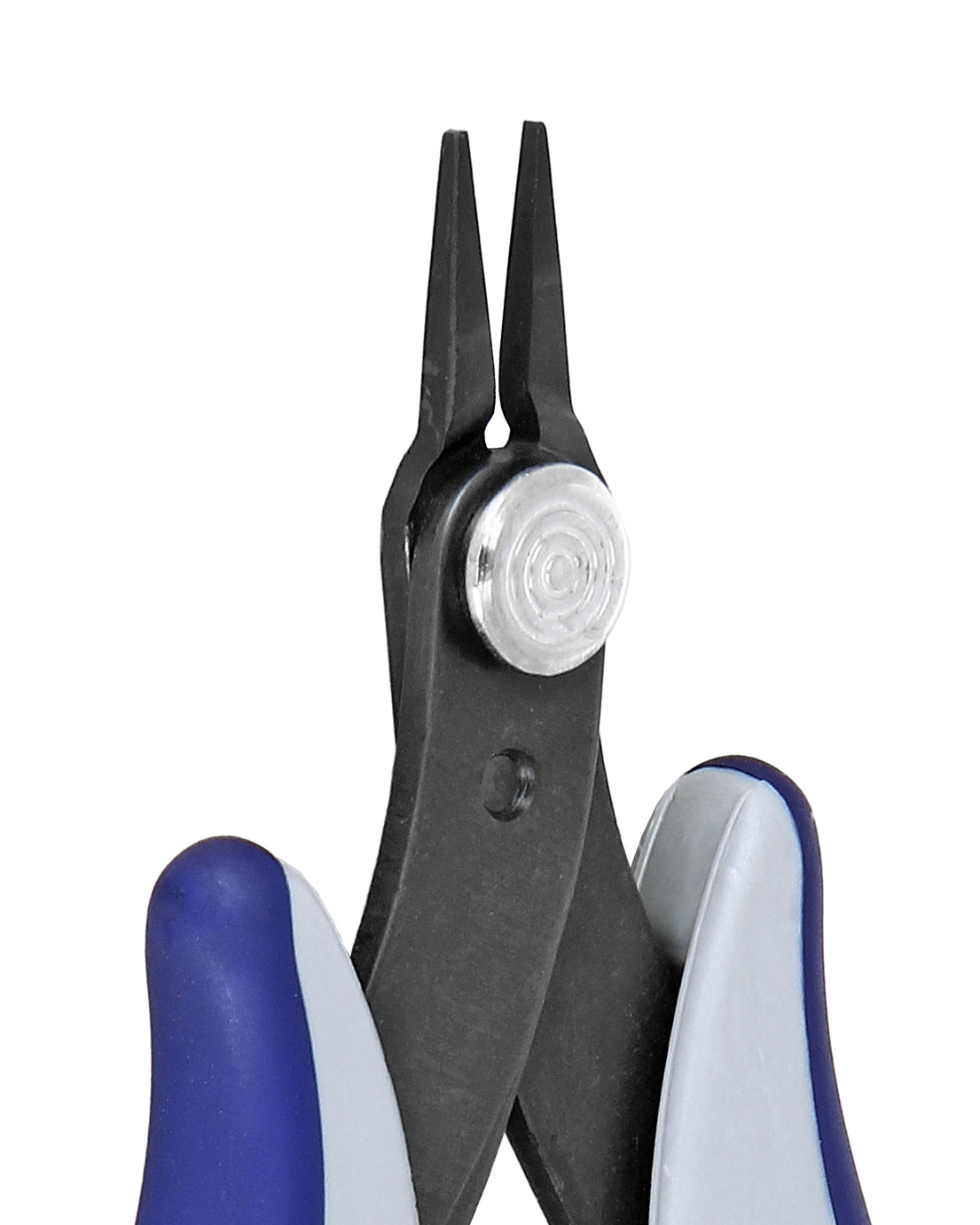

The PP20ME is a micro Needle-nose pliers. Its micro size (2mm thick) and the short smooth jaws makes this tool specially designed for delicate electronics applications. The pliers are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
| Category | TEK-ME Carbon Steel Hand tools |
| ESD safe | yes |
| Body material | C70 |
| Body coating/ finishing | Phosphated |
| Product OAL (mm - in) | 135.00 - 5.315 |
| Product width (mm - in) | 70.00 - 2.756 |
| Product height (mm - in) | 13.00 - 0.512 |
| Head shape | Needle Nose |
| Head width (mm - in) - C | 10.00 - 0.394 |
| Size/type | Micro |
| Jaw (smooth/serrated) | Smooth |

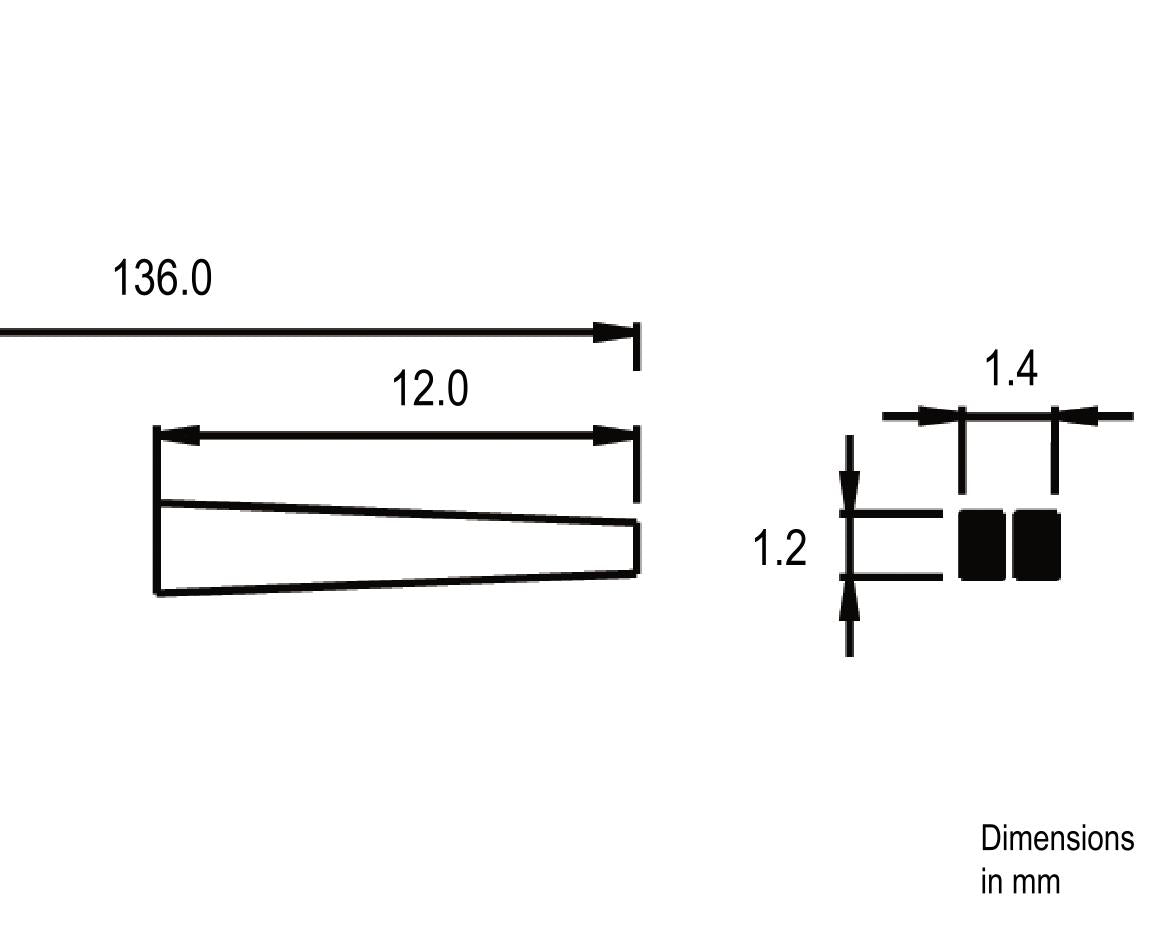

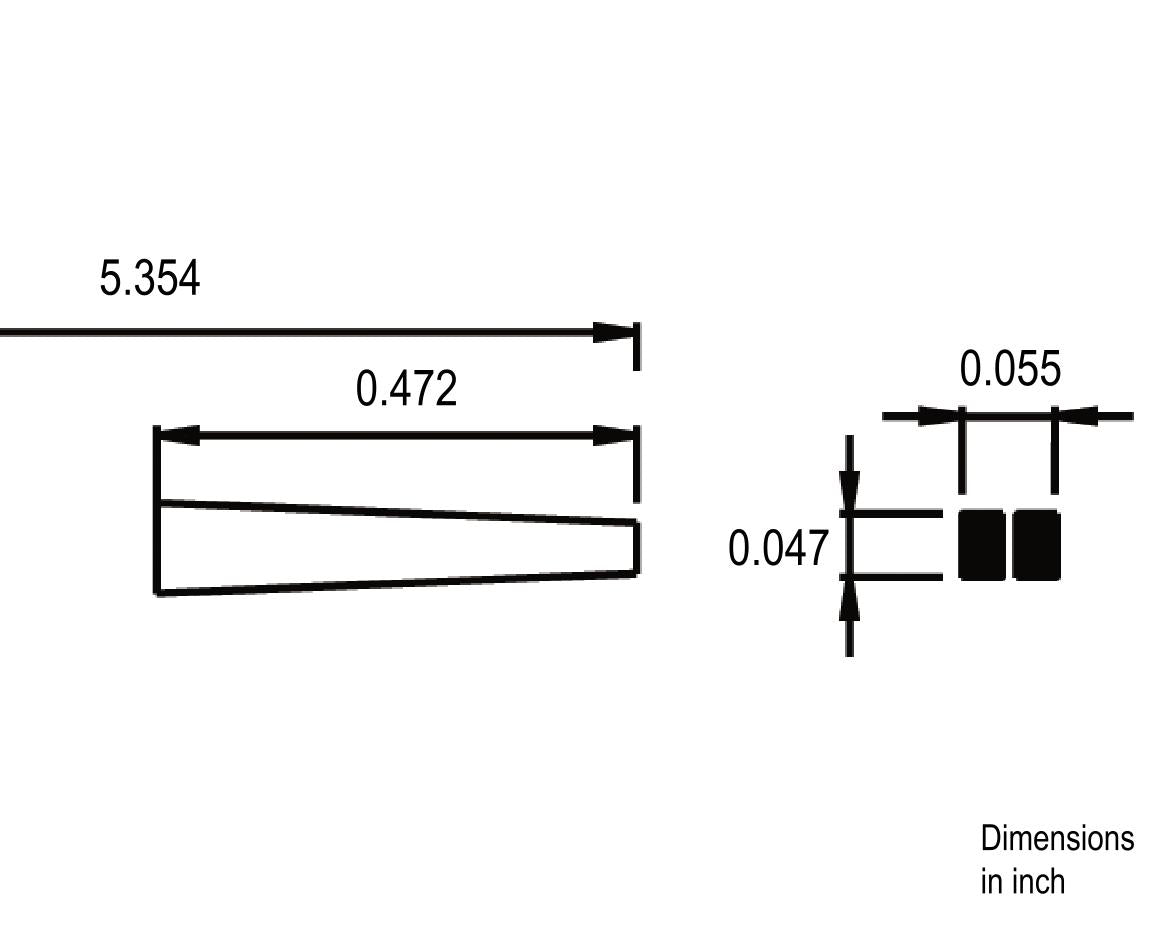

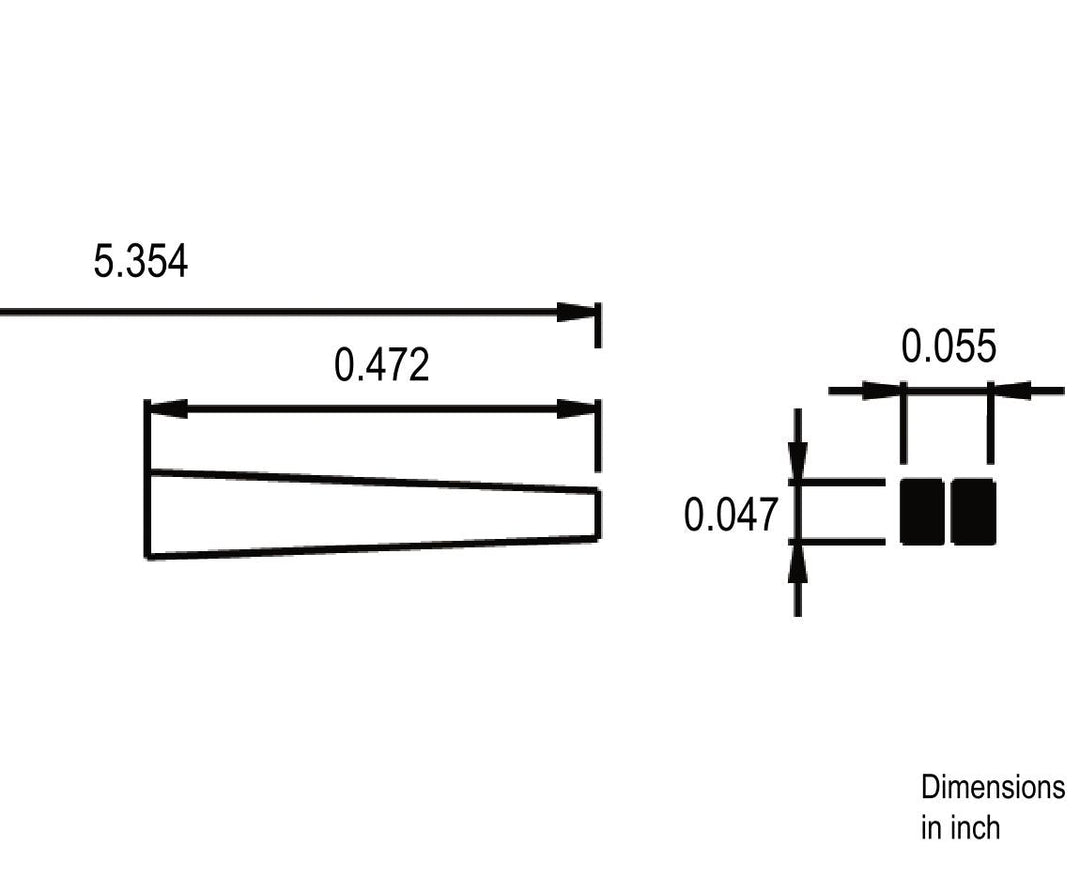

| OAL (mm - in) - A | 136.00 - 5.354 |
| Head/Jaw length - B (mm - in) | 12.00 - 0.472 |
| Head thickness (mm - in) - D | 4.00 - 0.157 |
| Tip width - E (mm - in) | 1.40 - 0.055 |
| Tip thickness - F (mm - in) | 1.20 - 0.047 |
| Net weight (g-lb) | 55.0 - 0.121 |
| RoHS compliant | yes |
