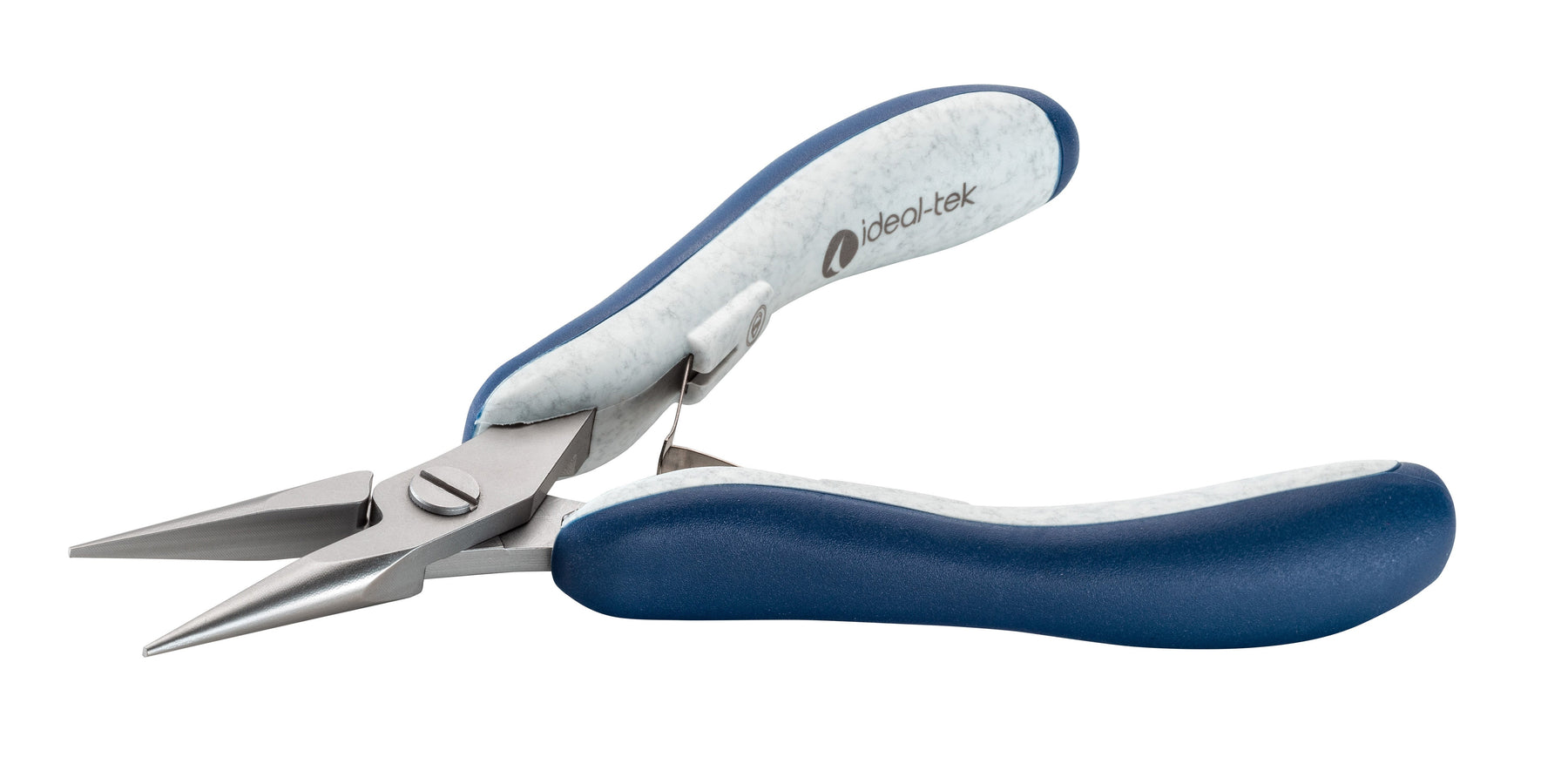

Ideal-tek ES6023S.CR.BG.ITU Ergo-tek Slim HP pliers 6023S, Long Snipe Nose smooth, OAL 135mm, 5.31in

Ideal-tek SKU: ES6023S.CR.BG.ITU
Size
Price
Regular price $59.60
Regular price Sale price $59.60
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

Ideal-tek ES6023S.CR.BG.ITU Ergo-tek Slim HP pliers 6023S, Long Snipe Nose smooth, OAL 135mm, 5.31in

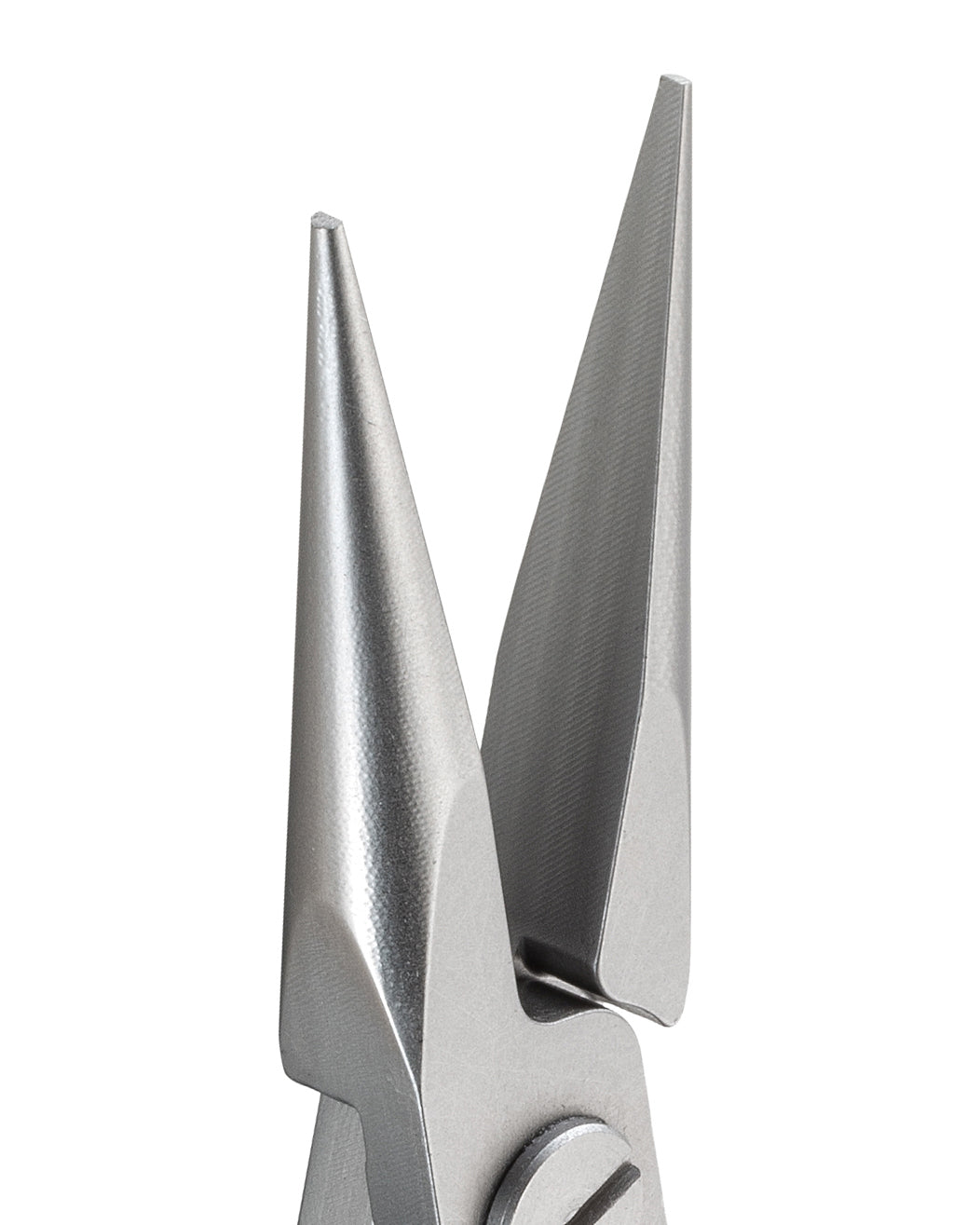

The 6023S is a high precision plier belonging to the long snipe nose plier family. The long jaw length improves the ease of the hold while the thicker tip makes the hold safer. The smooth surface on the jaw prevents scratches while holding. The 6023S is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaws are hardened to 45HRC hardness.

Category High Precision Pliers
Reverse action no
ESD safe yes
Body material 100Cr6
Grip handle material Ergo-tek Slim - TPE + PP
Body coating/ finishing Sandblasted

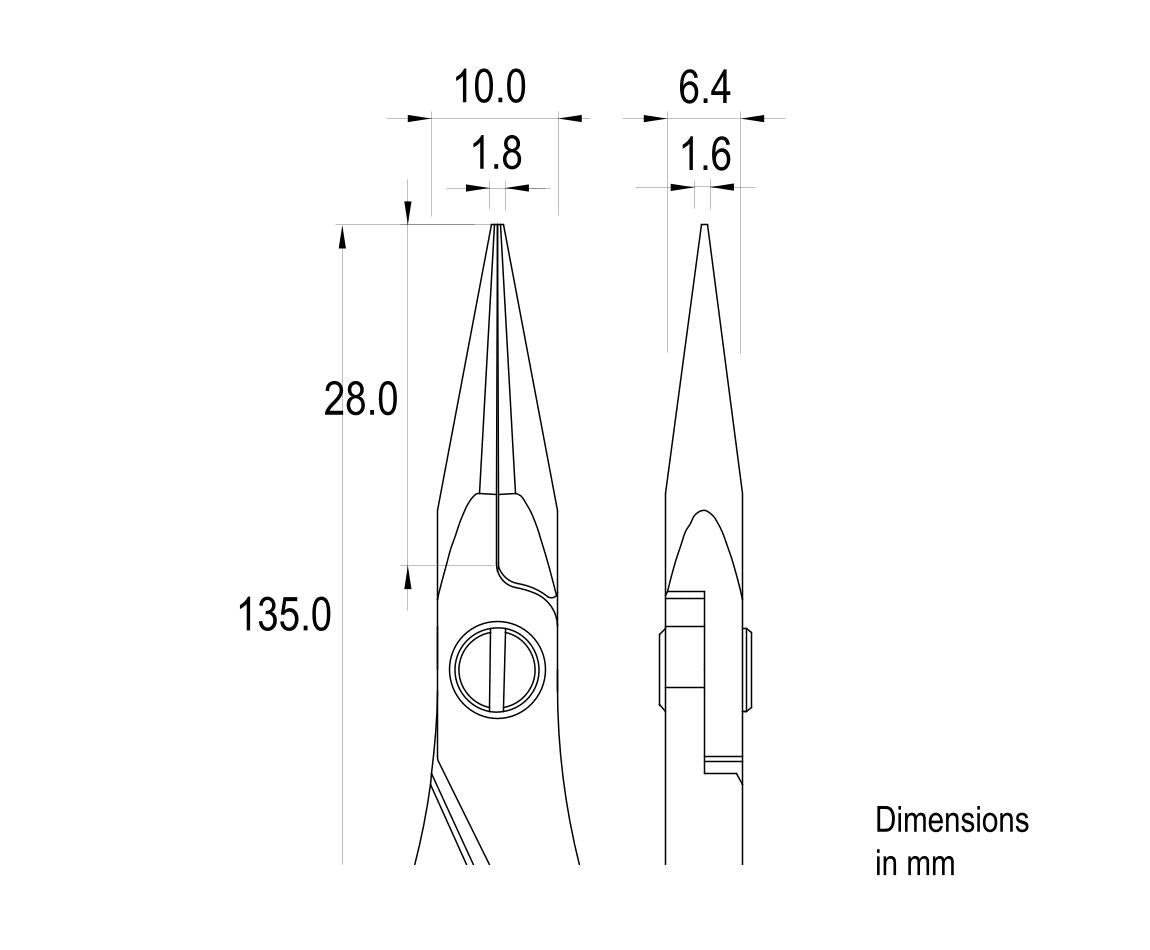

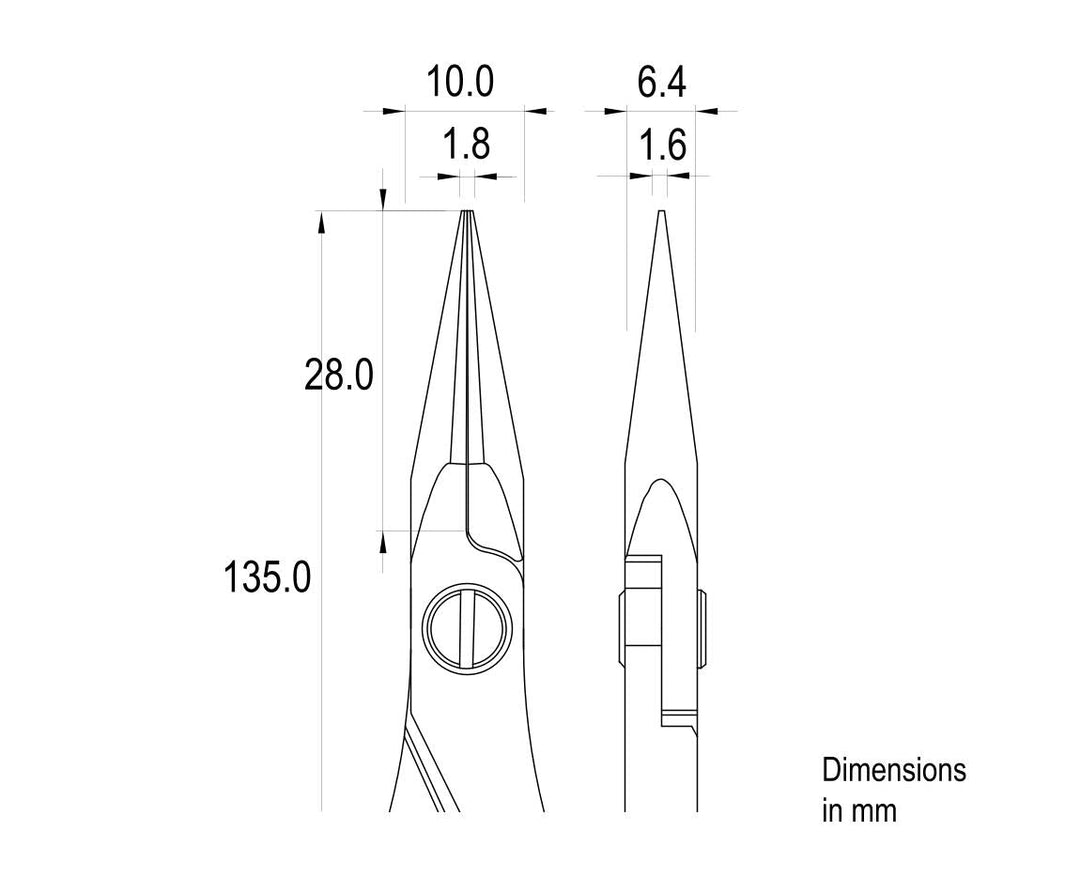

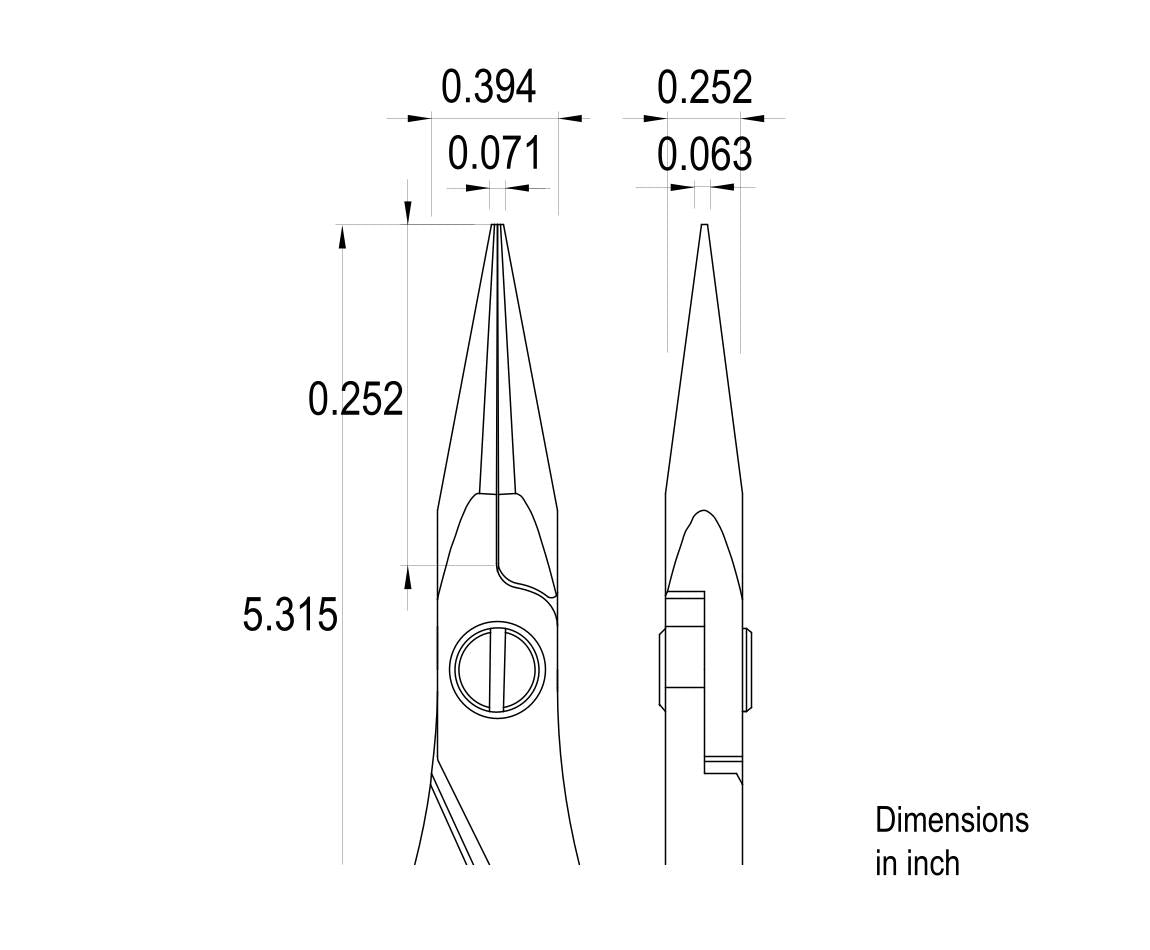

Product width (mm - in) 60.00 - 2.362
Product height (mm - in) 18.00 - 0.709
Head shape Snipe Nose
Head width (mm - in) - C 10.00 - 0.394
Size/type Strong
Jaw (smooth/serrated) Smooth
OAL (mm - in) - A 135.00 - 5.315
Head/Jaw length - B (mm - in) 28.00 - 1.102
Head thickness (mm - in) - D 6.40 - 0.252
Tip width - E (mm - in) 1.80 - 0.071
Tip thickness - F (mm - in) 1.60 - 0.063
Net weight (g-lb) 78.0 - 0.172
RoHS compliant yes
