Ideal-tek ES6022.CR.BG.ITU Ergo-tek Slim HP pliers 6022, Snipe Nose serrated, OAL 130mm, 5.12in

Ideal-tek SKU: ES6022.CR.BG.ITU
Size
Price
Regular price $58.22
Regular price Sale price $58.22
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

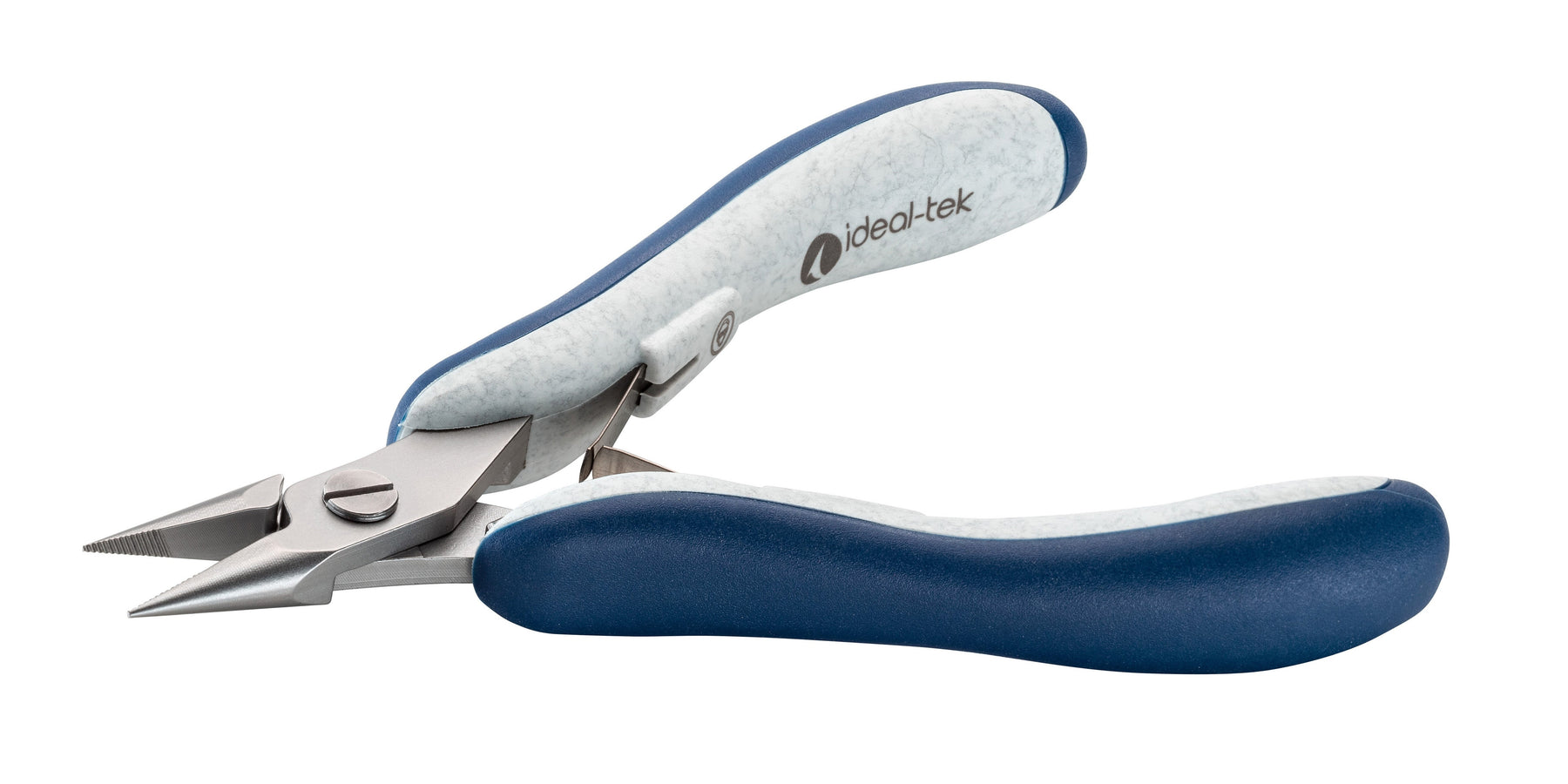

Ideal-tek ES6022.CR.BG.ITU Ergo-tek Slim HP pliers 6022, Snipe Nose serrated, OAL 130mm, 5.12in

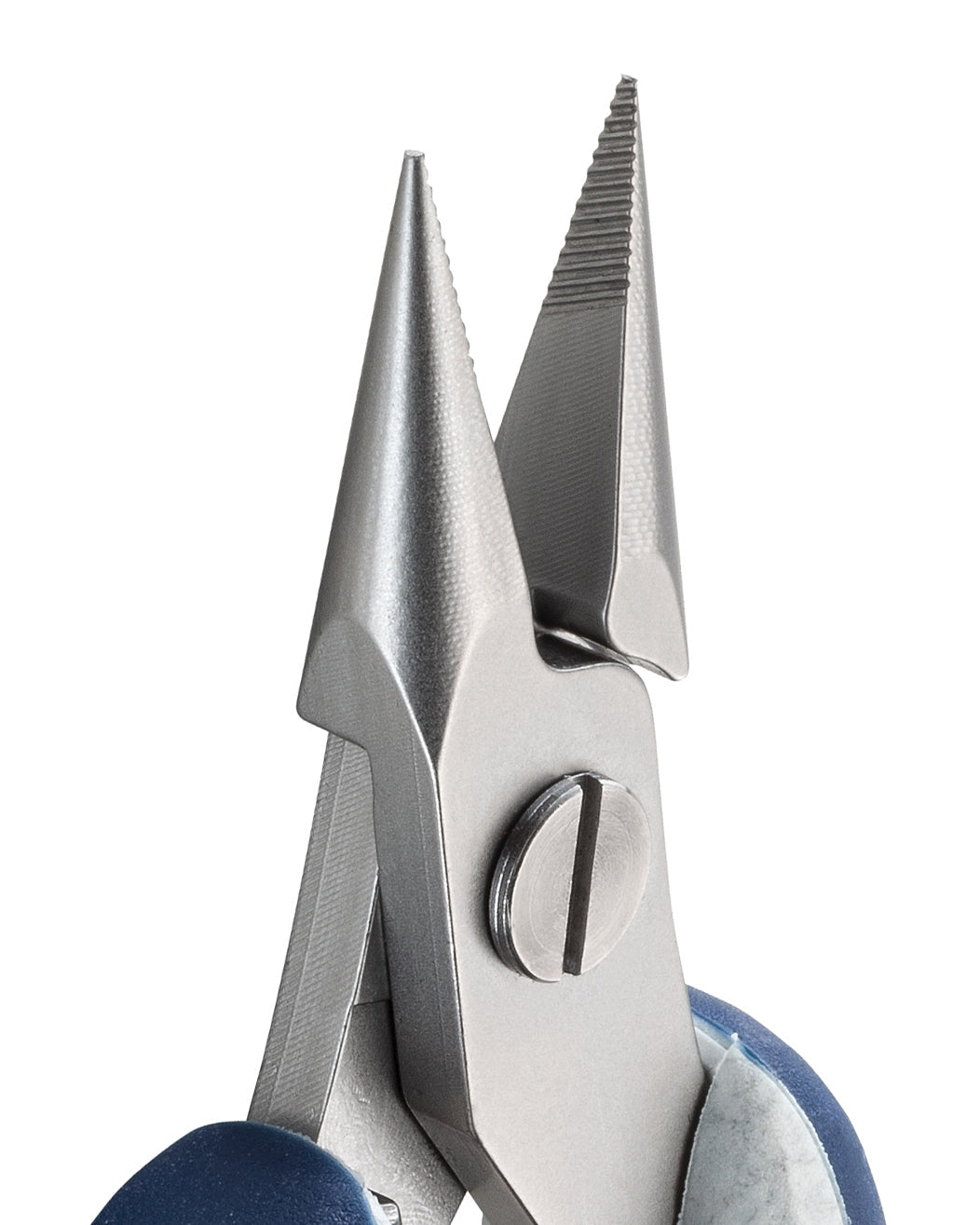

The 6022 is a high precision plier belonging to the snipe nose plier family. The short jaw length increases the strength of the hold. The serrated surface on the jaw increases its holding capacity. The 6022 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaws are hardened to 45HRC hardness.

Category High Precision Pliers
Reverse action no
ESD safe yes
Body material 100Cr6
Grip handle material Ergo-tek Slim - TPE + PP
Body coating/ finishing Sandblasted

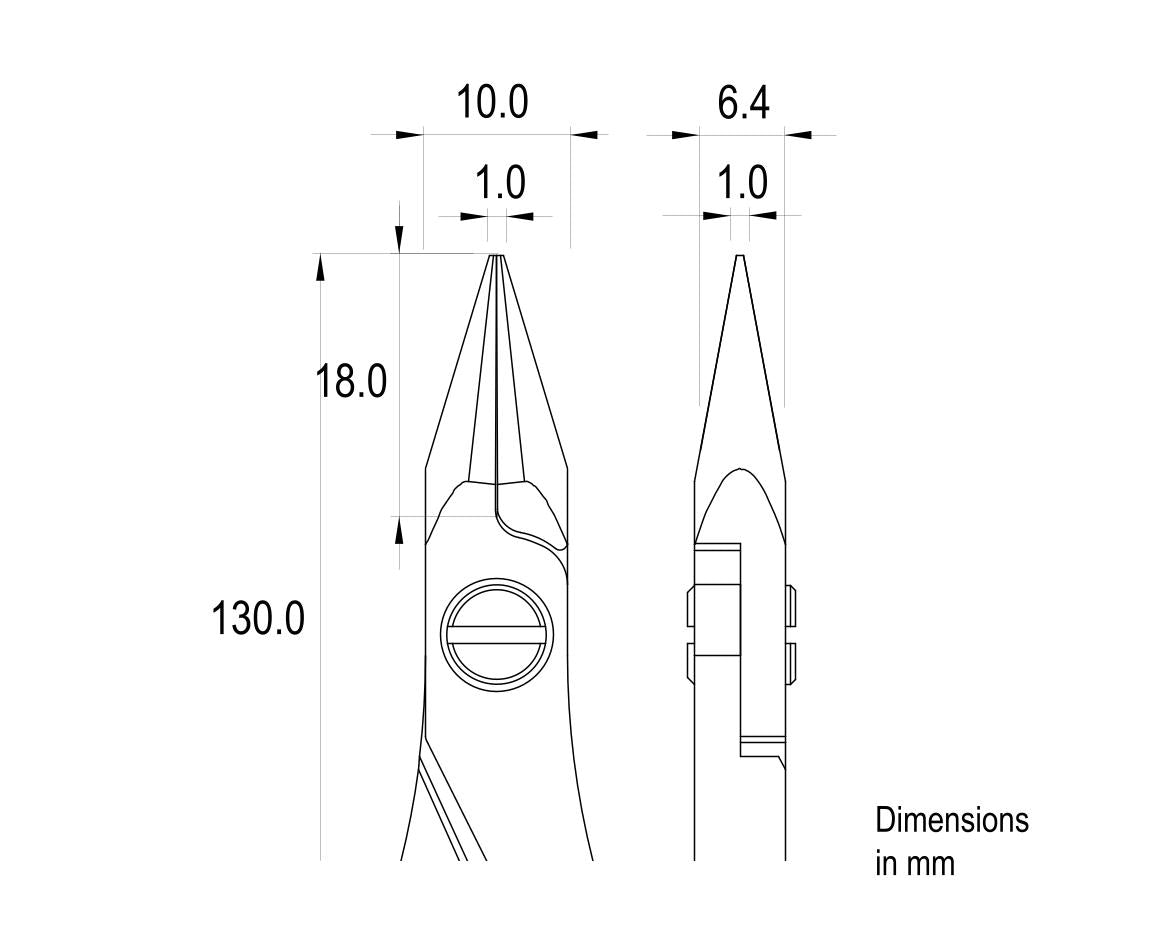

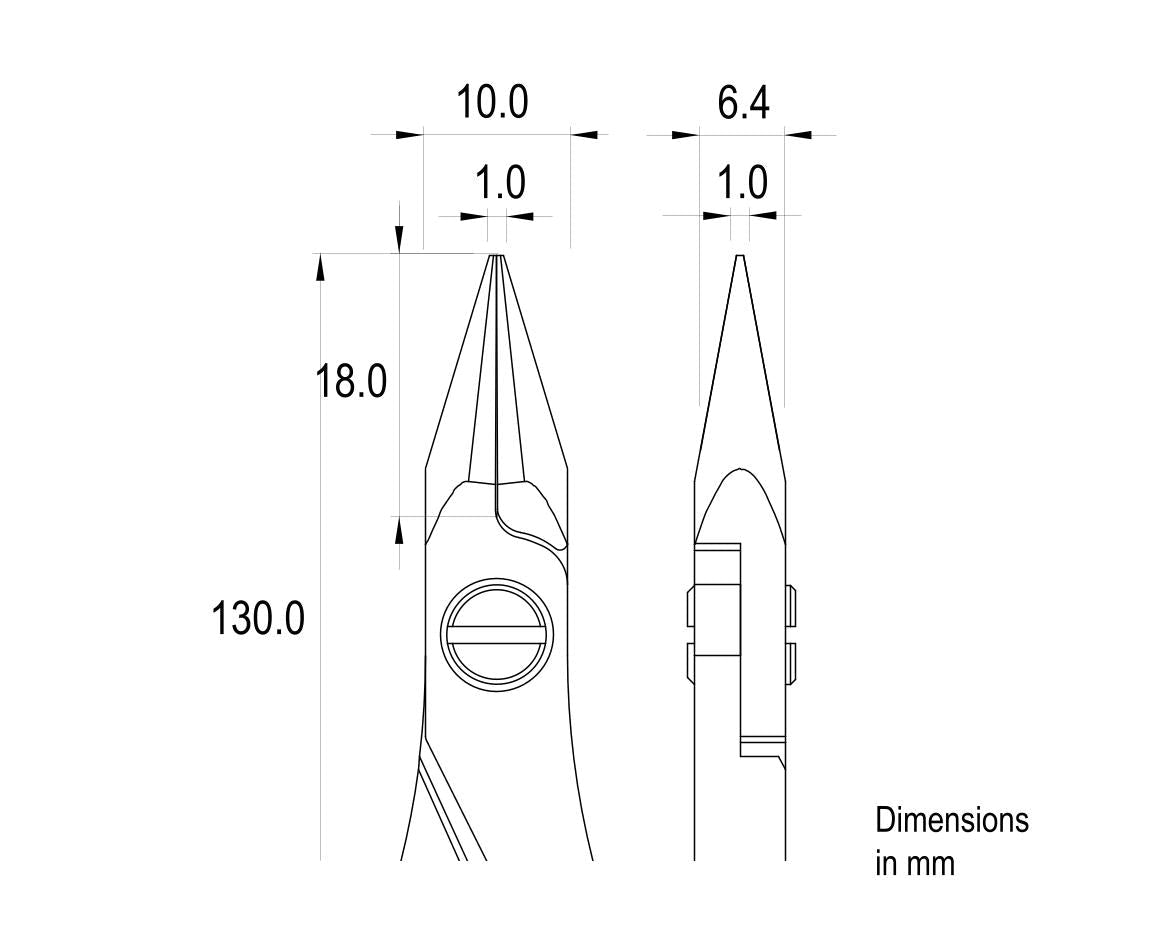

Product width (mm - in) 60.00 - 2.362
Product height (mm - in) 18.00 - 0.709
Head shape Snipe Nose
Head width (mm - in) - C 10.00 - 0.394
Size/type Short
Jaw (smooth/serrated) Serrated
OAL (mm - in) - A 130.00 - 5.118
Head/Jaw length - B (mm - in) 18.00 - 0.709
Head thickness (mm - in) - D 6.40 - 0.252
Tip width - E (mm - in) 1.00 - 0.039
Tip thickness - F (mm - in) 1.00 - 0.039
Net weight (g-lb) 75.0 - 0.165
RoHS compliant yes
