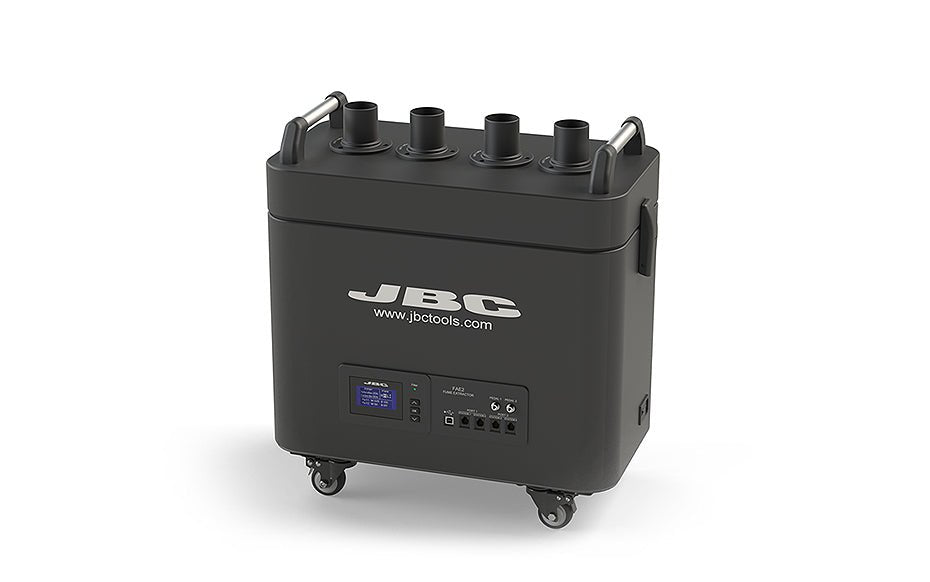

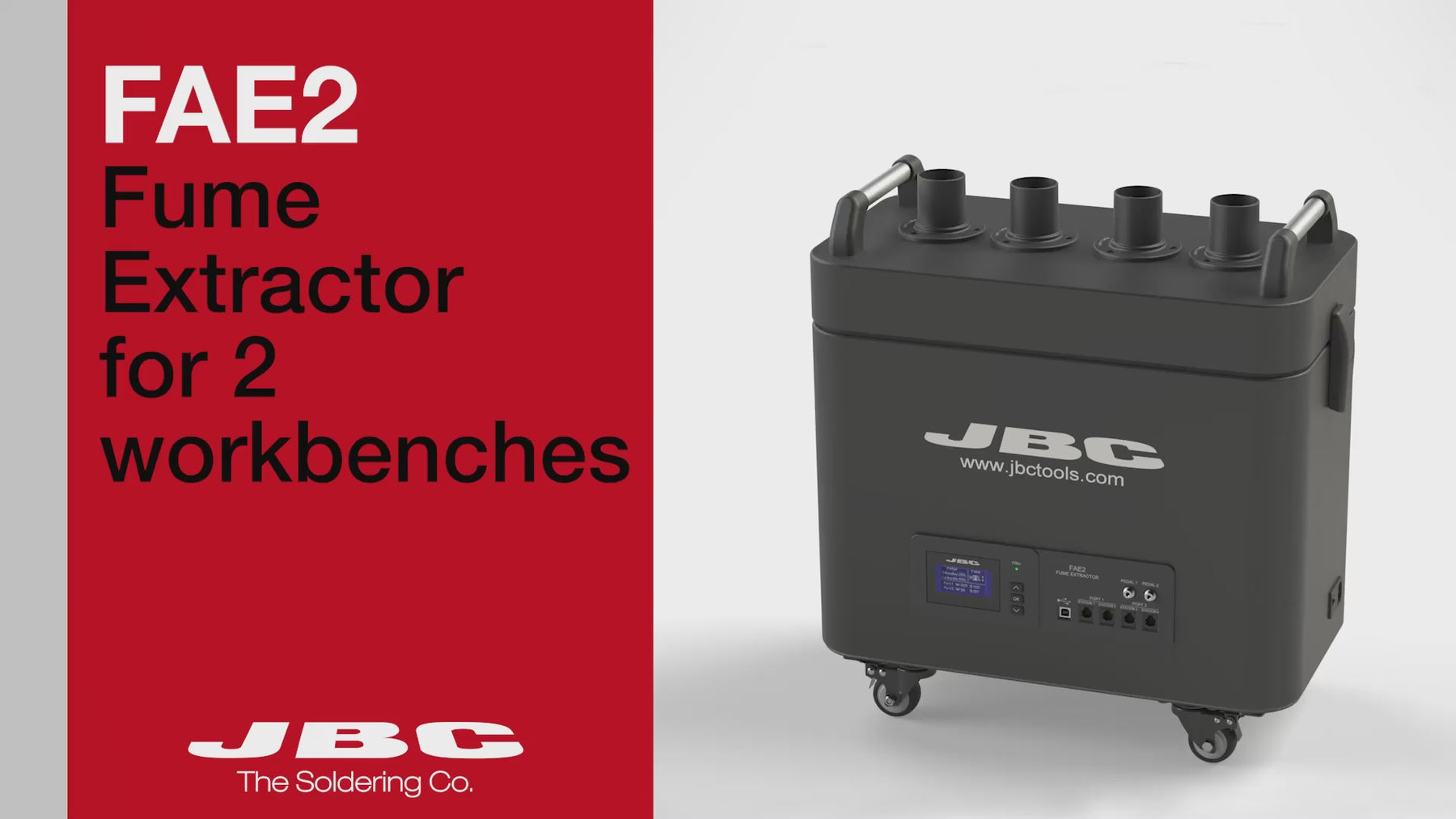

JBC Tools FAE2-5B, Fume Extractor for 2 Workbenches
JBC Tools FAE2-5B, Fume Extractor for 2 Workbenches
The JBC FAE2-5B is a fume extractor designed for two or four work areas. Its integrated stand detects when a tool is at rest and absorbs excess fumes. It connects up to four soldering or rework stations with eight tools total, with selectable low, medium, high, or custom aspiration.
Best uses
- Capturing solder fumes in JBC setups configured for two or four work areas.
- Supporting up to four connected soldering or rework stations and eight tools total.
- Using adjustable airflow and automatic, continuous, or pedal operation in a JBC soldering setup.
- ESD-safe electronics work areas where M5 pre-filtration, H13 particle filtration, and activated-carbon filtration are required.
Key features
- Two or four work areas, with an integrated vacuum system that absorbs excess fumes when tools are at rest.
- Brushless blower with a maximum flow rate of 290 m³/h (170.7 CFM) and maximum vacuum of 6.1 kPa (0.88 psi).
- Three filtration stages: M5 pre-filter, H13 particle filter, and activated-carbon filter.
- USB-B firmware-update connection and RJ12 direct connection for up to four stations.
- Pedal control for up to two tools; ESD safe.
Specifications
| Model | FAE2-5B |
|---|---|
| Work areas | 2 or 4 |
| Aspiration settings | Low, medium, high, or custom (10%–100%) |
| Operation modes | Automatic (JBC stations), continuous, or pedal |
| Maximum airflow | 290 m³/h (170.7 CFM) |
| Maximum vacuum | 6.1 kPa (0.88 psi) |
| Noise level | 54 dB at 1 m |
| Filters | M5 pre-filter (EN 779); H13 particle filter (EN 1822); activated-carbon filter |
| Temperature range | 10–40°C (50–104°F) |
| Peak power | 500 W (120–230 V); 320 W (100 V) |
| Unit dimensions and weight | 560 × 320 × 590 mm; 33.60 kg (22.05 × 12.60 × 23.23 in; 74.07 lb) |
| Package dimensions and weight | 725 × 485 × 760 mm; 39.00 kg (28.54 × 19.09 × 29.92 in; 85.98 lb) |
Frequently asked questions
How many work areas can the FAE2-5B support?
JBC lists two or four work areas. The unit can connect up to four soldering or rework stations with eight tools total.
What airflow settings are available?
Choose low, medium, high, or custom aspiration. Custom mode is adjustable from 10% to 100%.
Which filters are used?
The system uses an M5 pre-filter, an H13 particle filter, and an activated-carbon filter. The compatible replacement is the JBC FAE2-100 filter.
Is the FAE2-5B ESD safe?
Yes. The product specifications identify the FAE2-5B as ESD safe.
How can I control the extractor?
Listed operation modes are automatic with JBC stations, continuous, and pedal. The specifications list pedal control for up to two tools.
