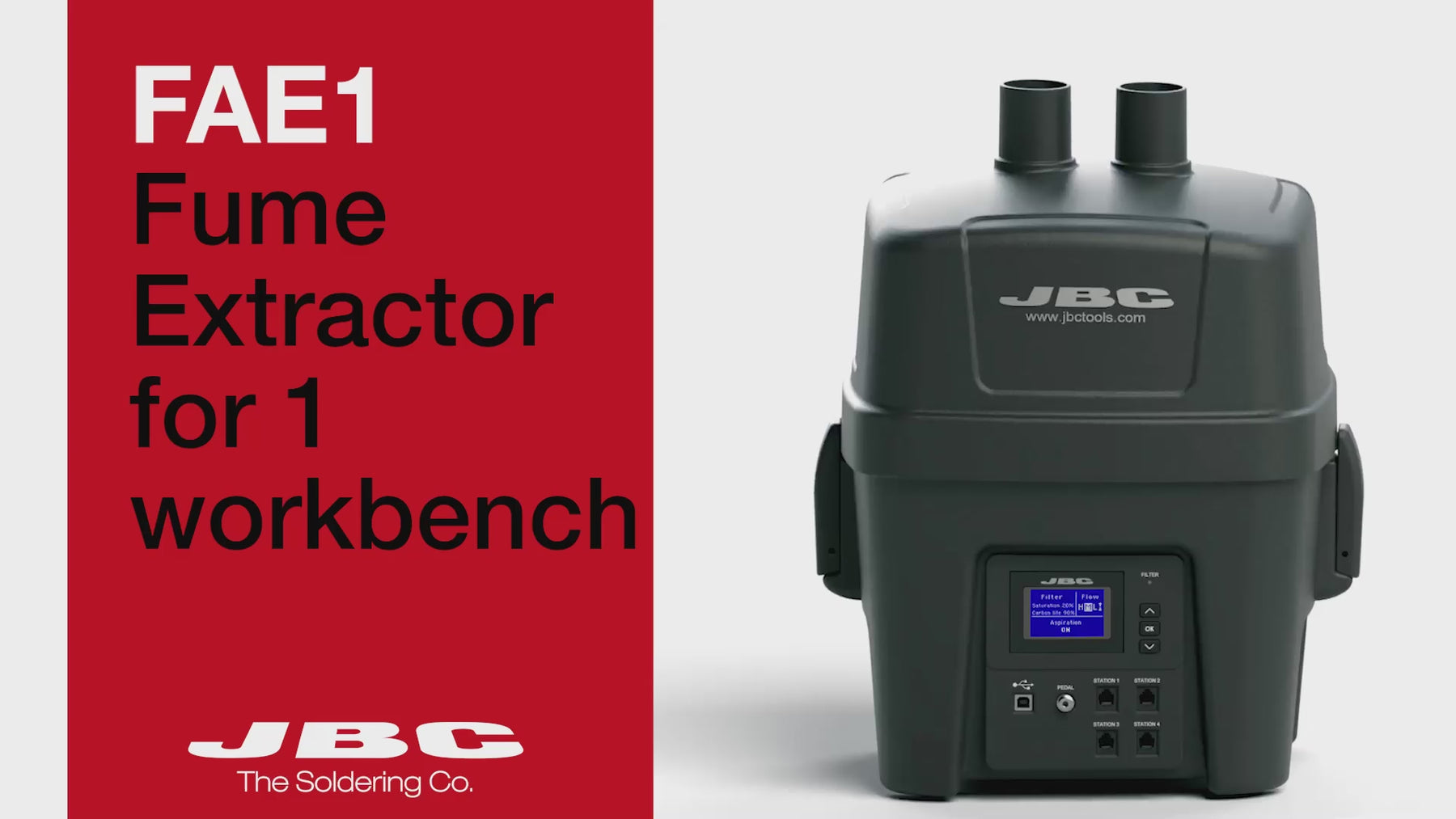

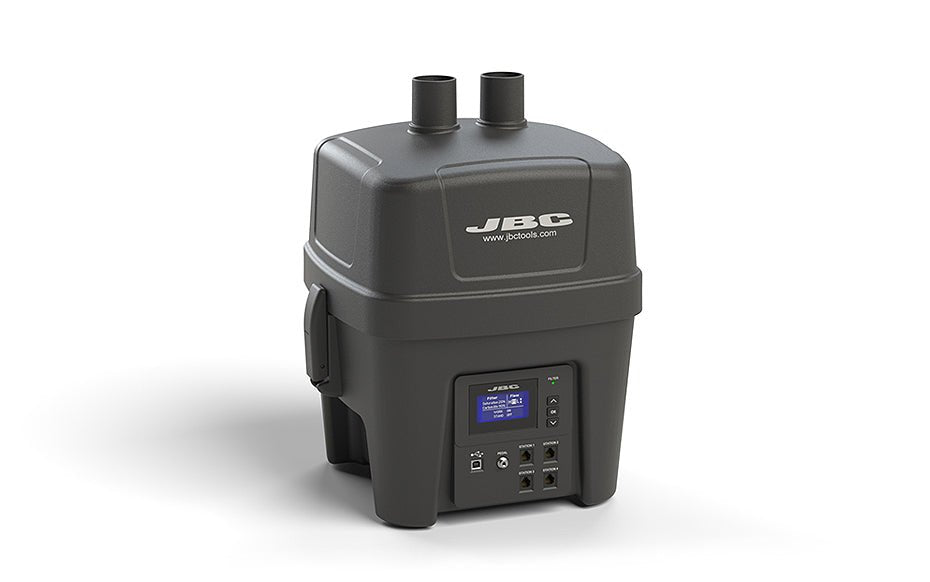

JBC Tools FAE1-1B, Fume Extractor for 1 Workbench
JBC Tools FAE1-1B, Fume Extractor for 1 Workbench
The JBC FAE1-1B is a fume extractor for one soldering workbench. Its integrated stand detects when a tool is at rest and absorbs excess fumes. Choose low, medium, high, or custom aspiration, and connect up to four soldering or rework stations with four tools total.
Best uses
- Capturing solder fumes at a single electronics assembly or rework workbench.
- Supporting a workstation with up to four connected JBC soldering or rework stations and four tools total.
- Adjusting aspiration to a process using the low, medium, high, or custom setting.
- Use in an ESD-safe electronics work area.
Key features
- Integrated stand with a vacuum system that absorbs excess fumes when the tool is at rest.
- Automatic operation with JBC stations, continuous operation, or optional pedal control.
- Brushless blower, maximum flow rate of 180 m³/h (106 CFM), and maximum vacuum of 3.2 kPa (0.46 psi).
- Three-layer filtration: M5 pre-filter, H13 particle filter, and activated-carbon filter for gases.
- ESD safe; USB-B firmware-update connection and RJ12 connection for up to four stations.
Specifications
| Model | FAE1-1B |
|---|---|
| Work areas | 1 |
| Aspiration settings | Low, medium, high, or custom (10%–100%) |
| Operation modes | Automatic (JBC stations), continuous, or pedal |
| Maximum airflow | 180 m³/h (106 CFM) |
| Maximum vacuum | 3.2 kPa (0.46 psi) |
| Noise level | 55 dB at 1 m |
| Filters | M5 pre-filter (EN 779); H13 particle filter (EN 1822); activated-carbon gas filter |
| Power | Peak: 95 W (100 V), 110 W (120 V), 110 W (230 V) |
| Unit dimensions and weight | 380 × 340 × 475 mm; 10.50 kg (14.96 × 13.39 × 18.70 in; 23.15 lb) |
| Package dimensions and weight | 425 × 425 × 545 mm; 12.76 kg (16.73 × 16.73 × 21.46 in; 28.12 lb) |
Frequently asked questions
How many work areas does the FAE1-1B serve?
It is specified for one work area. The unit can directly connect up to four soldering or rework stations, with four tools total.
What aspiration settings are available?
Choose low, medium, high, or custom airflow. Custom mode is adjustable from 10% to 100%.
Which filters does it use?
The filtration system includes an M5 pre-filter, an H13 particle filter, and an activated-carbon filter for gases. The compatible replacement is the JBC FAE1-100 filter.
How can the extractor be operated?
Available modes are automatic operation with JBC stations, continuous operation, and optional pedal control.
Is it ESD safe?
Yes. The product specifications identify the FAE1-1B as ESD safe.
