JBC Tools FAE1-100, Filter for FAE1 Fume Extractor
JBC Tools FAE1-100, Filter for FAE1 Fume Extractor

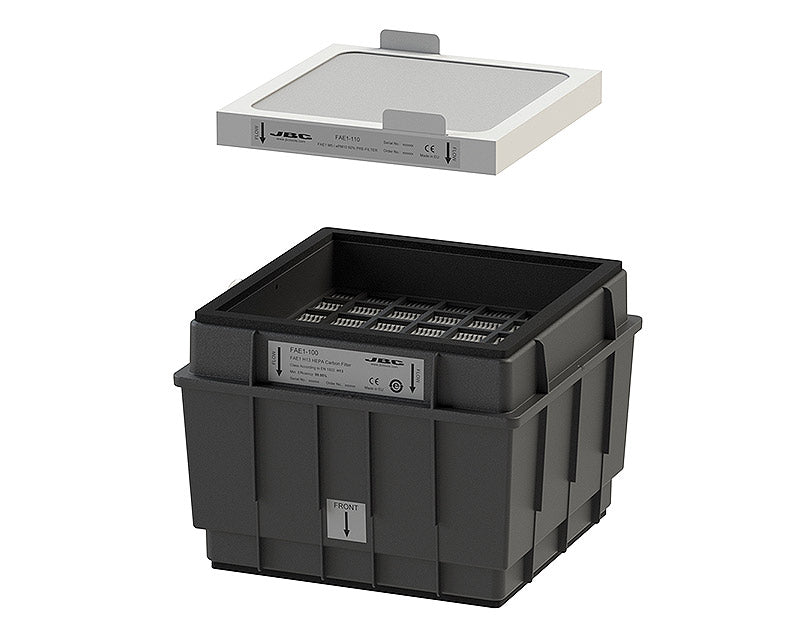

The JBC FAE1-100 is a replacement filter set for the JBC FAE1 fume extractor. It includes a compact filter with H13 particle and activated-carbon filtration, plus an M5 pre-filter. JBC lists filtration efficiency of up to 99.95% for the three-layer system in accordance with EN 1822.
Best uses
- Replacing the filter set in a JBC FAE1 fume extractor.
- Maintaining the FAE1 filtration stages: M5 pre-filter, H13 particle filter, and activated carbon.
- Restocking the compatible replacement after the extractor’s LED warning or display indicates a filter change is needed.
Key features
- Replacement filter set for the JBC FAE1 fume extractor.
- Includes a compact filter (H13 particle filter plus activated-carbon filter) and M5 pre-filter FAE1110.
- JBC lists up to 99.95% filtration efficiency for the three-layer system under EN 1822.
- The FAE1 unit provides an LED warning and display notification when filter replacement is due.
Specifications
| Model | FAE1-100 |
|---|---|
| Compatible extractor | JBC FAE1 |
| Included | One compact filter (H13 particle and activated-carbon filters) and M5 pre-filter FAE1110 |
| Pre-filter | M5 (EN 779) |
| Compact filter | H13 particle filter (EN 1822) and activated-carbon filter |
| Filtration efficiency | Up to 99.95% for the three-layer system, as listed by JBC under EN 1822 |
| Package dimensions and weight | 300 × 283 × 208 mm; 3.28 kg (11.81 × 11.14 × 8.19 in; 7.23 lb) |
Frequently asked questions
Which extractor uses the FAE1-100 filter?
It is a replacement filter set for the JBC FAE1 fume extractor.
What is included in the FAE1-100 set?
The listing specifies a compact filter combining H13 particle and activated-carbon filtration, plus the M5 pre-filter FAE1110.
What filtration stages does it use?
The system uses an M5 pre-filter (EN 779), an H13 particle filter (EN 1822), and activated carbon.
What filtration efficiency does JBC report?
JBC lists up to 99.95% efficiency for the three-layer system in accordance with EN 1822.
How will I know when the filters need replacement?
The compatible FAE1 unit has an LED warning and a display notification when it is time to replace the pre-filter or compact filter.
Is this the complete FAE1 extractor?
No. This listing is for the FAE1-100 replacement filter set, not the fume extractor unit.
