Transforming Technologies BFN8412, Extended Coverage Bench Top AC Ionizer
Transforming Technologies BFN8412, Extended Coverage Bench Top AC Ionizer

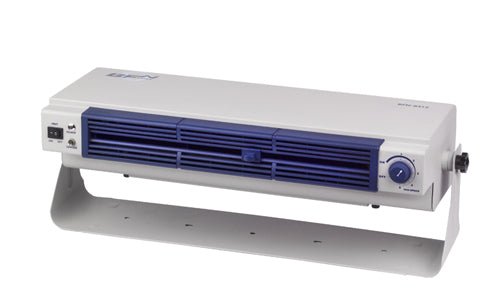

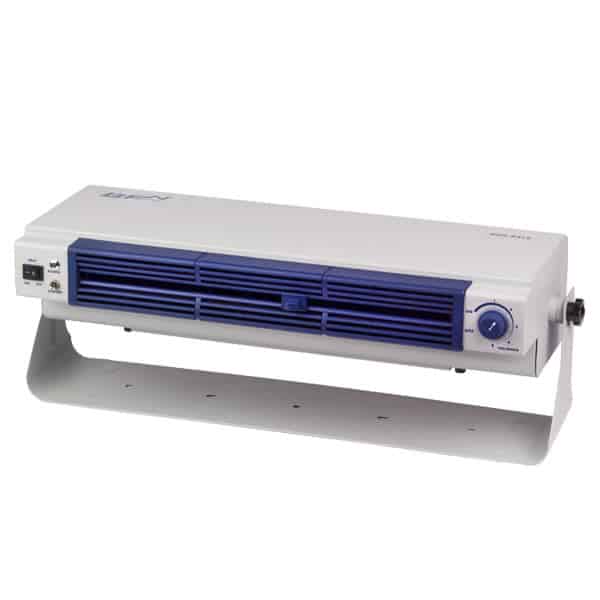

The Transforming Technologies BFN8412 is an extended-coverage benchtop AC ionizer designed for wider workbenches and applications where a standard single-fan benchtop ionizer cannot adequately cover the full work area. It delivers a broader field of ionized air across the workbench surface, neutralizing static charges on non-groundable insulators, PCBs, and process materials across a larger footprint — all from a single benchtop unit without requiring overhead mounting.
Specifications
| Spec | Value |
|---|---|
| SKU | BFN8412 |
| Brand | Transforming Technologies |
| Type | Extended coverage benchtop AC ionizer |
| Ion Technology | AC corona discharge |
| Coverage | Extended — wider workbenches and larger work areas |
| Mounting | Benchtop (freestanding) |
| Compliance | ANSI/ESD S20.20, ANSI/ESD STM3.1 |
| Stock Location | Canton, MA |
Key Features
- Extended Coverage: Broader ion field than a standard single-fan benchtop ionizer — suited for wide workbenches, dual-operator stations, or applications requiring greater coverage from a single unit.
- AC Corona Discharge Ionization: Neutralizes static charges on non-groundable surfaces — PCBs, plastic housings, packaging, and process materials.
- Benchtop Design: Freestanding unit — no overhead mounting or ceiling installation required.
- Addresses What Grounding Cannot: Complements wrist straps and ESD mats by neutralizing charges on insulators that cannot be grounded.
- ANSI/ESD S20.20 Compliant: Meets ionizer requirements per ANSI/ESD S20.20 and ANSI/ESD STM3.1.
Frequently Asked Questions
What is the difference between the BFN8412 and the BFN801?
The BFN8412 provides extended ion coverage — a wider field of ionized air suited for wider workbenches or larger work areas. The BFN801 is a standard single-fan benchtop ionizer suited for typical single-operator workstations. Choose the BFN8412 if your workbench is wider than standard or if a single BFN801 cannot adequately cover your full work area.
Why do I need an ionizer if I already have ESD mats and wrist straps?
ESD mats and wrist straps ground conductors but cannot neutralize charges on insulators (plastic housings, PCB substrates, packaging). An ionizer floods the work area with balanced ions to neutralize those charges. ANSI/ESD S20.20 requires ionization when insulators with voltages above the process voltage limit are present in the EPA.
What is the difference between a benchtop and an overhead ionizer?
A benchtop ionizer sits on the workbench and blows ionized air across the surface from bench level. An overhead ionizer mounts above the workstation and delivers ionized air from above, keeping the bench clear and providing broader coverage. Choose overhead (BFN802LED, BFN803LED) when bench space is limited or when wider area coverage is needed.
How often does the BFN8412 need maintenance?
AC ionizer emitter pins should be cleaned every 3 to 6 months depending on the environment to maintain ion balance and decay time performance. Refer to the BFN8412 user manual for the recommended cleaning procedure.
