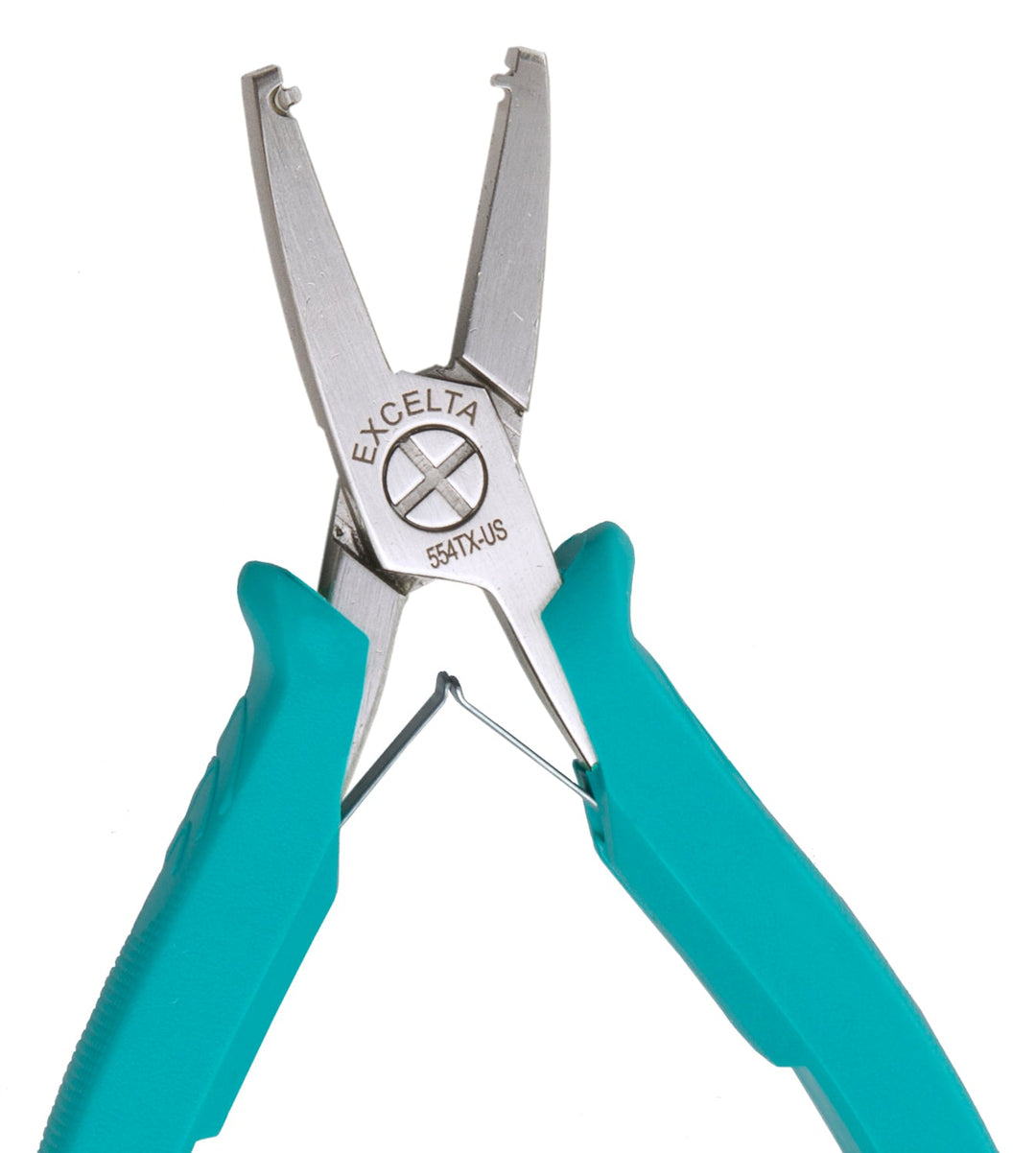

Excelta 554TX-US Pliers - Stress Relief - .165" To 1St Bend - 1 Lead In/1 Lead Out -
Excelta 554TX-US Pliers - Stress Relief - .165" to 1st Bend - 1 Lead In/1 Lead Out
The Excelta 554TX-US is a 5.5" stress-relief forming plier that forms stress relief in most radial-lead components, creating one lead in and one lead out in a single operation. Recommended for wire .025" in diameter or smaller, it features an ergonomically molded, antimicrobial anti-static grip with dual leaf springs for comfortable, repeatable use.
Sold individually.
Specifications
| Manufacturer | Excelta |
| Part Number | 554TX-US |
| Type | Stress relief lead forming plier |
| 1st Bend | .165" |
| Overall Length | 5.5" |
| Wire Capacity | Recommended for .025" diameter wire or smaller |
| Forming Action | Forms one lead in and one lead out in a single operation |
| Grip | Ergonomic antimicrobial anti-static grip (1010 ohms/sq surface resistivity) with dual leaf springs |
Frequently Asked Questions
What is the Excelta 554TX-US used for?
It forms stress relief in radial-lead components, bending one lead in and one lead out in a single squeeze. This protects solder joints from mechanical stress during board assembly.
What's the difference between the 554TX-US and 554TXB-US?
The 554TX-US is 5.5" with a .165" first bend, while the 554TXB-US is 5" with a .030" first bend. Choose based on the stress-relief offset your assembly requires.
What wire sizes does it handle?
The 554TX-US is recommended for wire .025" in diameter or smaller, with a .165" first bend.
Is the grip ESD-safe?
Yes. It has an ergonomically molded antimicrobial anti-static grip rated at 1010 ohms/sq surface resistivity, with dual leaf springs for smooth operation.
