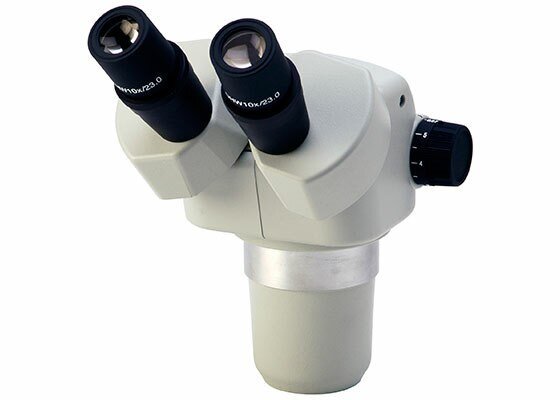

Aven Tools DSZ-44 Microscope Body SZ, Binocular 10X-44X


Provides crisp clear 3D images and a wide field of view. 10x to 44x continuous zoom with 10x eyepieces.

DSZ-44 - Binocular Stereo Zoom Microscope

DSZ binocular stereo zoom microscopes offers superior quality optics and reliable mechanical components. This exceptional quality allows users to efficiently perform tasks and maintain high productivity. High precision optics ensures excellent contrast and definition 3D images from edge to edge. Magnification range from 2.5x to 140.8x with optional auxiliary lenses and eyepieces. A wide variety of lenses, stands and illumination is available to provide you with a microscope system to meet your individual requirements

High Eye Point

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

Adjustable Zoom Knob

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

Features

  • Zoom ratio: 4.4:1
  • Magnification range: 10x to 44x
  • Field of view 23mm to 5.2mm (0.90"; to 0.20";)
  • Working distance: 90mm
  • Wide Field 10x Eyepieces (Field Number 23)

Specs

DSZ-44 -Binocular Stereo Zoom Microscope
Body Type Binocular, 360° rotatable, 45° inclined eyepiece tube
Eyepieces Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range
Auxiliary lens 0.5x, 0.75x and 1.6x auxiliary lenses available to extended magnification range of microscope
Working Distance 90mm without auxiliary lens 150mm with 0.5x auxiliary lens 105mm with 0.75x auxiliary lens 45mm with 1.6x auxiliary lens
Zoom Ratio 4.4:1
Diopter Adjustment On both eye tubes: +5.6D-.72D
Interpupillary Distance Adjustable from 52 to 75mm
Optical System Greenough
Package Contents 1ea DSZ-44 Binocular Stereo Zoom Microscope 2 ea. 10x Eyepieces 2 ea. Rubber Eye guards 1 ea. Dust Cover 1 ea. Instruction Manual
Weight 5lb
