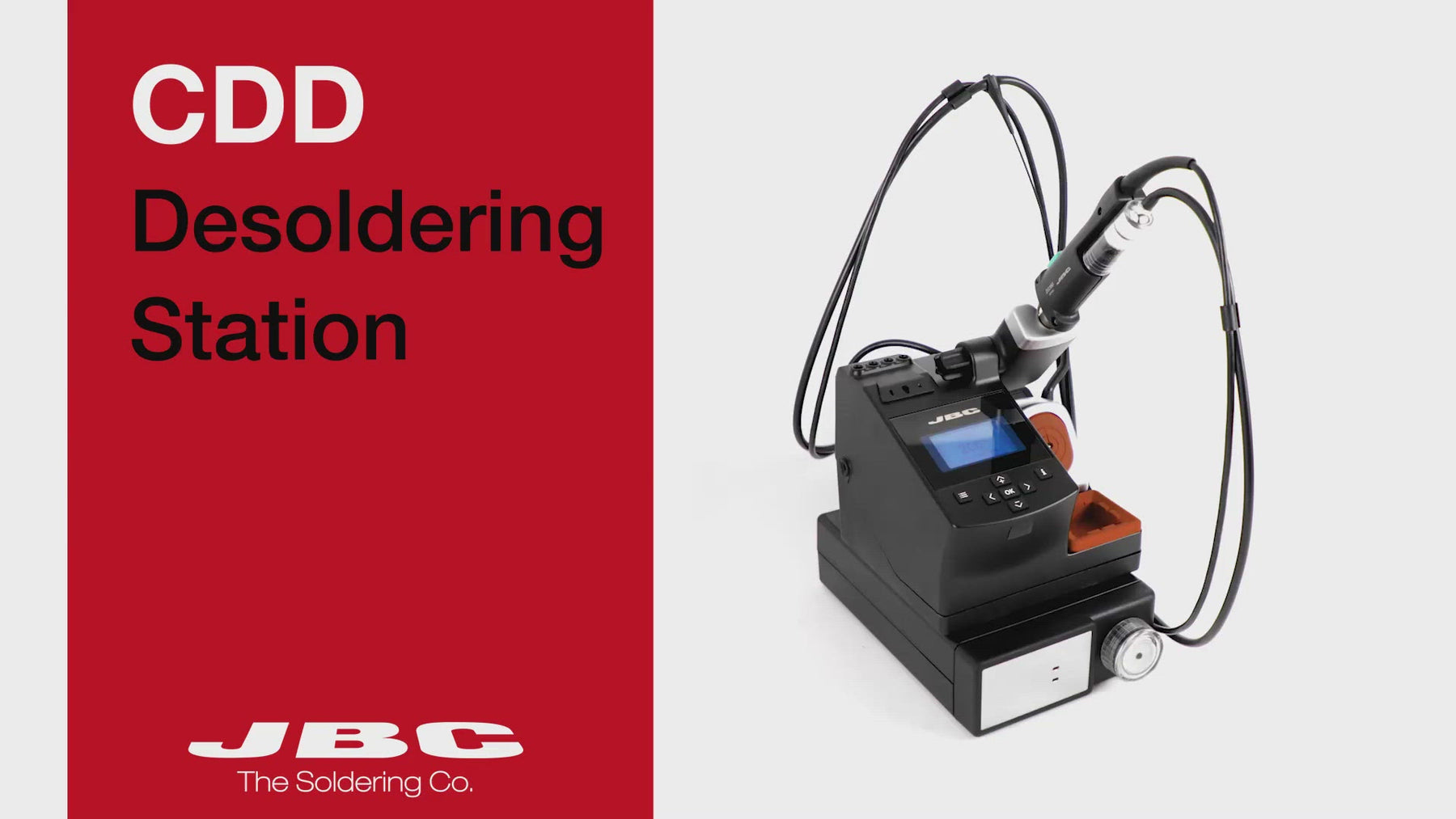

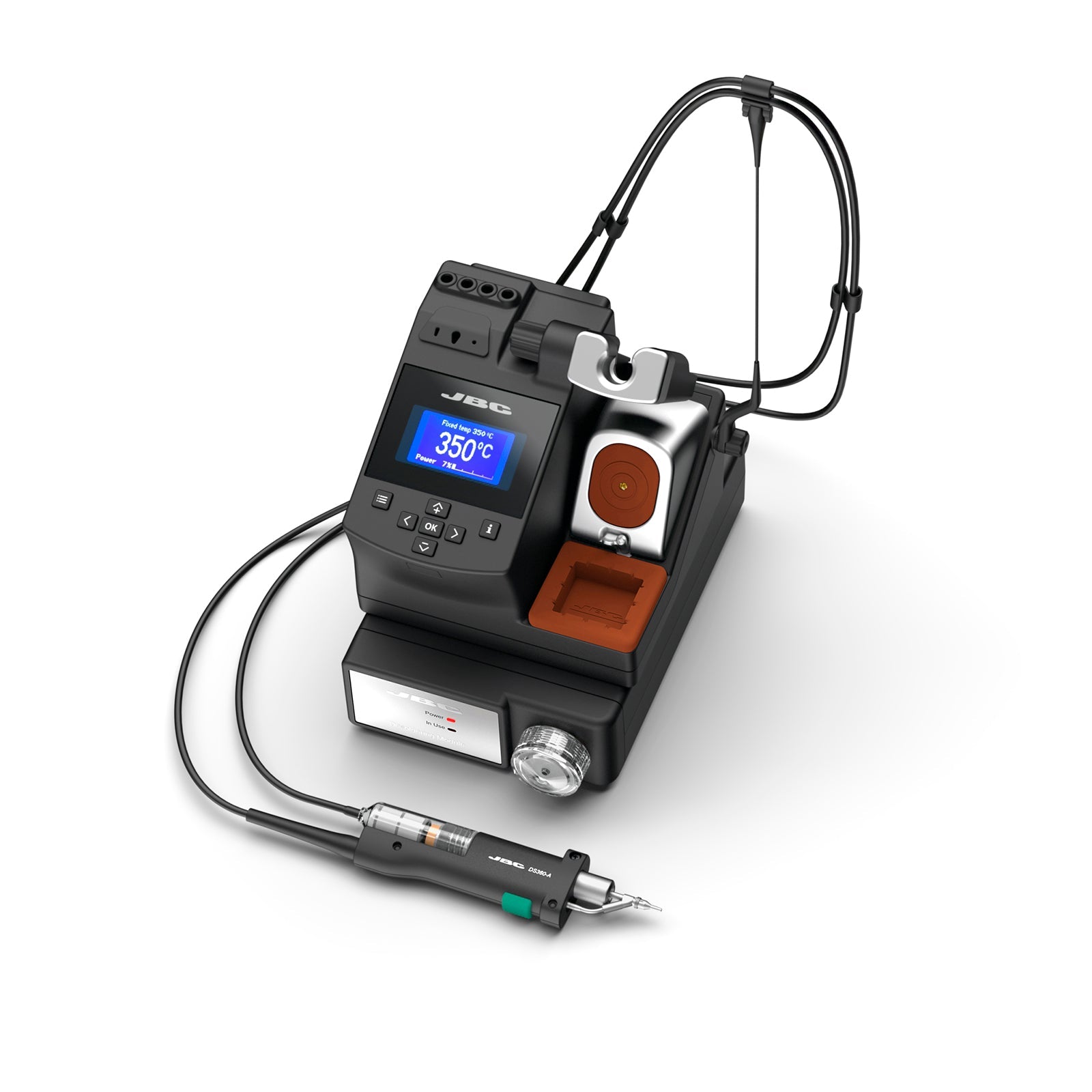

JBC Tools CS-1F, CDD 120V Desoldering Station with Electric Pump

JBC Tools SKU: CS-1F
JBC Tools CS-1F, CDD 120V Desoldering Station with Electric Pump
JBC Tools CS-1F, CDD 120V Desoldering Station with Electric Pump

JBC Tools CS-1F, CDD 120V Desoldering Station with Electric Pump

JBC Tools SKU: CS-1F
Regular price $1,625.00
/
Shipping calculated at checkout.

JBC Tools CS-1F, CDD 120V Desoldering Station with Electric Pump

Ideal for desoldering small THT components and SMD pad cleaning.

It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint.

JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.

Complete Cleaning System, with exclusive fast and safe Cartridge exchanger.

Connectivity: Fume Extractor, Datas Download, Software Updates, Traceability.

Includes MS Electric Desoldering Module and DS360 Micro Desoldering Iron that works with our wide range of C360 Tips.

1 CS Control Unit
Selectable Temperature: 180 to 450 ºC / 360 to 840 ºF
Vacuum: 75% / 570 mmHg / 22.4 inHg
Flow rate: 9 SLPM
CONNECTIVITY
USB-B: Software PC / Firmware update
Equipotential bonding: Optional connection to EPA
FAE Connector: Smart Fume Extractor control
Earthing Fuse: F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist.: Meets and exceed; ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power: 40 W - 23.5 V
Operating temp. range: 10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations
170 x 176 x 145 mm / 4.00 kg.

6.69 x 6.93 x 5.71 in / 8.82 lb.
Package
495 x 295 x 255 mm / 5.47 kg.

19.49 x 11.61 x 10.04 in / 12.06 lb.
