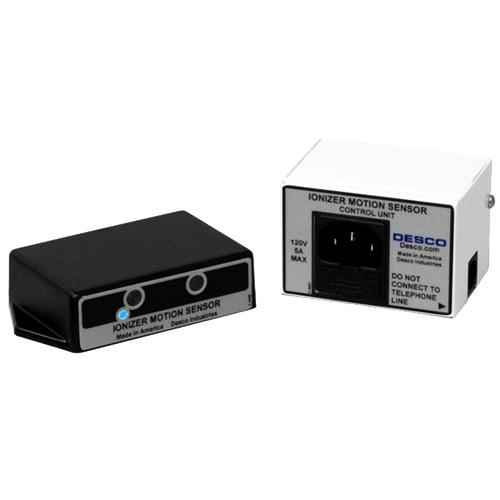

Desco 60509 Ionizer Motion Sensor
Desco 60509 Ionizer Motion Sensor
The Desco 60509 Ionizer Motion Sensor automatically activates a compatible benchtop ionizer when an operator is present at a workstation and deactivates it when the workstation is vacant. This reduces energy consumption, extends emitter pin service life, and eliminates the need to manually switch ionizers on and off between production runs. The sensor uses a unique infrared light and filter system to prevent interference from other light sources, with adjustable sensitivity and time delay settings.
Sold individually.
Specifications
| Parameter | Details |
|---|---|
| Part Number | 60509 |
| Brand | Desco Industries |
| Components | Sensor Unit + Control Unit (2-piece system) |
| Detection Method | Infrared with unique filter to prevent interference from other light sources |
| Sensitivity Adjustment | Low, Medium, High |
| Time Delay Adjustment | 1 Minute, 10 Minutes, 1 Hour |
| Compatible Ionizers (120VAC) | 60500 Chargebuster® Jr., 60505 High Output Bench Top, 50663 Zero Volt Benchtop, 60640 Chargebuster® 2-Fan Overhead, 60473 Chargebuster® 3-Fan Overhead |
| Country of Origin | Made in America |
| Sold As | Individually |
Frequently Asked Questions
How does the Desco 60509 motion sensor work with an ionizer?
The 60509 consists of a Sensor Unit and a Control Unit. The sensor detects operator presence via infrared and signals the control unit to activate the ionizer. When the operator leaves the workstation, the ionizer deactivates after the selected time delay (1 minute, 10 minutes, or 1 hour), conserving energy and reducing wear on the emitter pins.
Which Desco ionizers are compatible with the 60509?
The 60509 is compatible with the following 120VAC Desco ionizers: 60500 Chargebuster® Jr. Bench Top, 60505 High Output Bench Top, 50663 Zero Volt Benchtop, 60640 Chargebuster® 2-Fan Overhead, and 60473 Chargebuster® 3-Fan Overhead.
Can the sensitivity and time delay be adjusted in the field?
Yes. Both the sensitivity level (Low, Medium, High) and the time delay before deactivation (1 Minute, 10 Minutes, 1 Hour) are field-adjustable, allowing the sensor to be tuned to the specific workstation layout and operator workflow.
Does the 60509 work with 220VAC ionizers?
The 60509 is rated for compatible 120VAC Desco ionizers. Contact MTE Solutions to confirm compatibility if your ionizer is configured for 220VAC operation.
