Transforming Technologies 7100.EFM51.CPS.SET - Warmbier Charge Plate Set for EFM51 (Meter Not Included)
Transforming Technologies 7100.EFM51.CPS.SET - Warmbier Charge Plate Set for EFM51 (Meter Not Included)
Retrofit charge plate system for testing ionizer efficiency with the EFM51 static field meter. The Wolfgang Warmbier EFM51.CPS.SET Charge Plate System enables the EFM51 field meter to measure and evaluate ionizer performance and decay times. This complete retrofit kit includes a high voltage generator (±1200V), charging plate, base, ground connection, carrying case, batteries, and calibration certificate.
IMPORTANT: EFM51 Static Field Meter NOT INCLUDED - Purchase separately if needed
PRODUCT SPECIFICATIONS
• SKU: 7100.EFM51.CPS.SET
• Product: Warmbier Charge Plate Set (retrofit kit)
• High Voltage Generator: ±1200 volts
• Compatible Meter: EFM51 Static Field Meter (sold separately)
• Application: Ionizer efficiency testing and evaluation
• Includes: HV generator, base, charging plate, ground connection, case, batteries, calibration certificate
• Manufacturer: Wolfgang Warmbier / Transforming Technologies

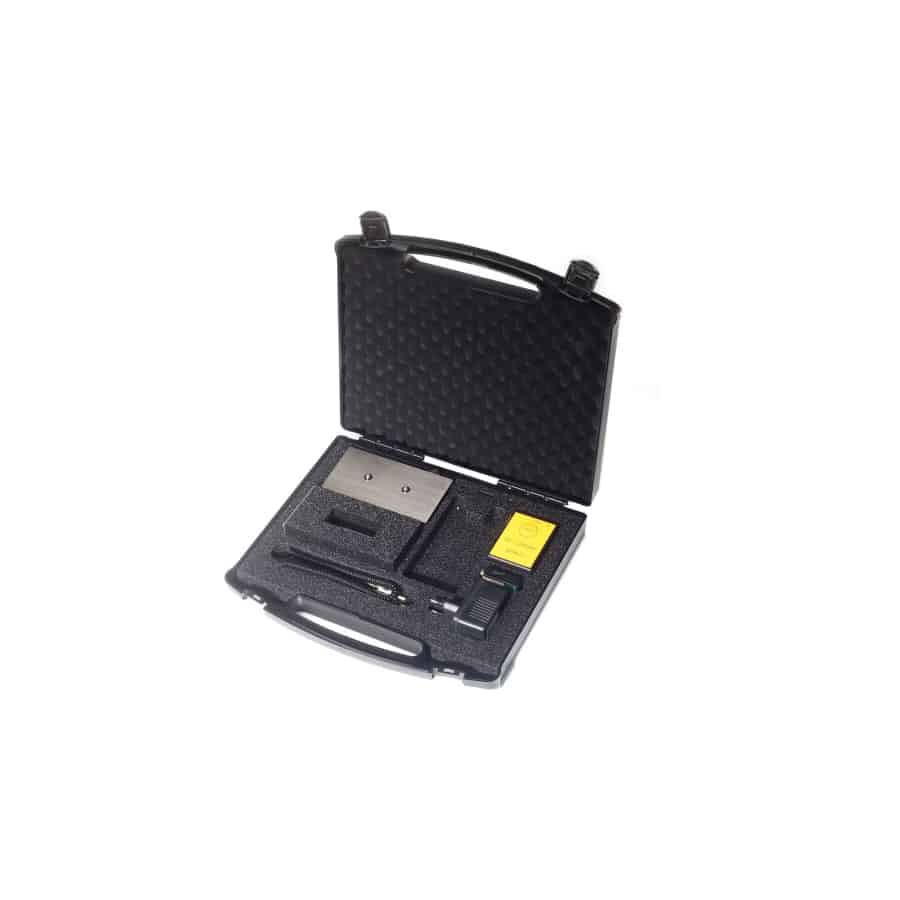

COMPLETE KIT INCLUDES
✓ High Voltage Generator (±1200 volt)
✓ Charging Plate
✓ Base
✓ Ground Connection
✓ Carrying Case
✓ Batteries
✓ Calibration Certificate
KEY FEATURES & BENEFITS
✓ Ionizer Testing - Measure ionizer efficiency and decay times
✓ ±1200V Generator - Charges plate to test ionizer neutralization
✓ EFM51 Compatible - Retrofits existing EFM51 field meters
✓ Complete System - Everything needed except EFM51 meter
✓ Calibration Certificate - Traceable calibration included
✓ Portable - Carrying case for field testing
✓ Batteries Included - Ready to use out of the box
IDEAL APPLICATIONS
• Ionizer performance verification
• Ionizer decay time testing
• ESD control program audits
• Compliance testing (ANSI/ESD S20.20, IEC 61340-5-1)
• Ionizer maintenance and troubleshooting
• Cleanroom ionizer qualification
• Electronics manufacturing ESD control
• Semiconductor fab ionizer testing
HOW IT WORKS
The charge plate system works with the EFM51 static field meter to test ionizer performance:
1. Charge the Plate: High voltage generator charges the plate to ±1200V
2. Activate Ionizer: Turn on the ionizer being tested
3. Measure Decay: EFM51 meter measures how quickly the ionizer neutralizes the charge
4. Evaluate Performance: Compare decay time to specifications (typically <5 seconds to <±50V)
IONIZER EFFICIENCY TESTING
Ionizers are critical ESD control devices that neutralize static charges on insulative materials and isolated conductors. Regular testing ensures ionizers are functioning properly and meeting performance specifications. The charge plate test is the industry-standard method for evaluating ionizer efficiency.
COMPLIANCE TESTING
The charge plate test method is specified in:
• ANSI/ESD S20.20: Development of an Electrostatic Discharge Control Program
• IEC 61340-5-1: Protection of electronic devices from electrostatic phenomena
• ESD TR53: Compliance Verification of ESD Protective Equipment and Materials
These standards require periodic ionizer testing to verify performance and maintain ESD control program compliance.
ABOUT THE EFM51 STATIC FIELD METER
The EFM51 (sold separately) is a full-featured handheld*_
