Brady 7017-4-PK ASBESTOS FREE Self-Adhesive Pipe Marker, Style 4, 0.75–2.375" Pipe OD, Pack of 5
Brady 7017-4-PK ASBESTOS FREE Self-Adhesive Pipe Marker — Style 4, 0.75–2.375" Pipe OD

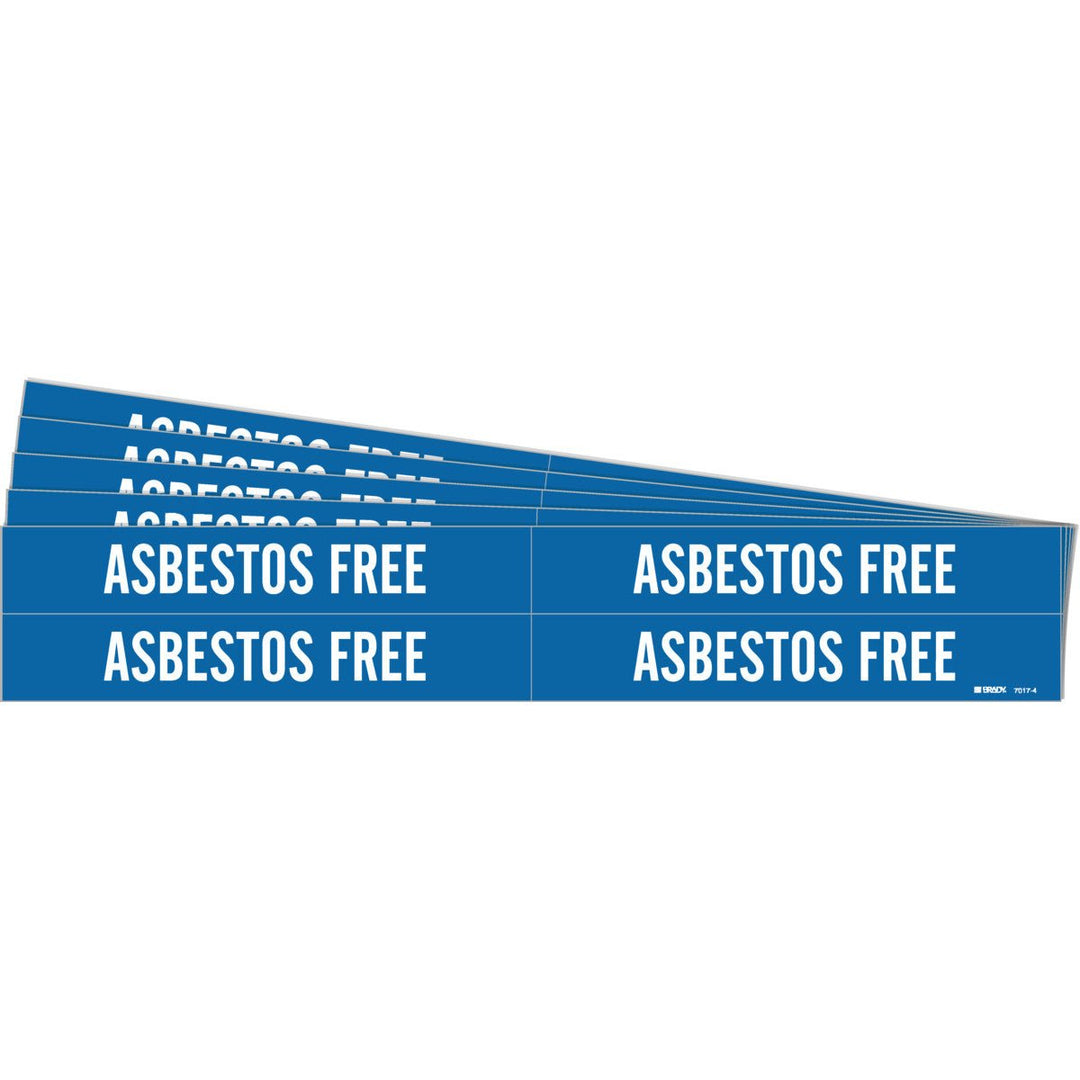

The Brady 7017-4-PK is a pre-printed ASBESTOS FREE self-adhesive pipe marker in White on Blue — the ANSI/ASME A13.1 color code for Air and Duct systems. Designed for fast, permanent installation with factory-applied industrial-grade acrylic adhesive, each marker peels and presses directly onto the pipe surface with no tools required. Made from Brady B-946 high-gloss vinyl with weather-resistant, abrasion-resistant, and chemical-resistant properties, this marker is rated for outdoor use with 8 to 10 years of durability. Each pack includes 5 cards with 4 markers per card (20 markers total), sized for pipes with an outside diameter of 0.75 to 2.375 inches.
Key Specifications
| Specification | Detail |
|---|---|
| Part Number | 7017-4-PK |
| Product Number | 171398 |
| UPC | 888434568392 |
| Text Legend | ASBESTOS FREE |
| Color | White on Blue |
| Material | B-946 Vinyl |
| Finish | Gloss |
| Adhesive Type | Permanent Acrylic |
| Pipe Marker Style | 4 |
| Mounting Style | Self-Adhesive |
| Overall Size | 0.75–2.375" pipe OD |
| Min. Outside Pipe Diameter | 0.75 in |
| Max. Outside Pipe Diameter | 2.375 in |
| Dimensions | 1.125 in H × 7 in W |
| Character Height | 0.75 in |
| Arrow Direction | No Arrow |
| Application | Pipe and Valve Marking |
| Fluid Class | Air |
| Quantity per Card | 4 markers |
| Cards per Pack | 5 |
| Total Markers per Pack | 20 |
| Outdoor Durability | 8 to 10 Years |
| Service Temperature Range | -40 °F to 180 °F |
| Min. Application Temperature | 0 °F |
| Resistance | Abrasion-resistant, Chemical-resistant, Weather-resistant |
| Indoor/Outdoor Use | Outdoor Use |
| UNSPSC | 55121737 |
| HTS Code | 3919.90.5060 |
| ECCN | EAR99 |
| RoHS | Compliant with 2011/65/EU with exemptions |
| California Prop 65 | No warning label required |
| REACH SVHC | Part does not contain an SVHC |
| Country of Origin | United States of America |
Self-Adhesive vs. BradySnap-On™ Pipe Marker Styles
| Feature | Self-Adhesive (7017) | BradySnap-On™ |
|---|---|---|
| Installation | Peel and stick — permanent bond | Tool-free snap application |
| Removable | No — permanent adhesive | Yes — remove and reapply |
| Best For | New construction, permanent marking | Retrofits, maintenance, reusable marking |
| Surface Requirement | Clean, dry surface recommended | Works on dirty, oily, rough surfaces |
| ANSI/ASME A13.1 Compliant | Yes | Yes |
ANSI/ASME A13.1 Pipe Marking Reference
The Brady 7017-4-PK uses White on Blue, the ANSI/ASME A13.1 color code for Compressed Air systems. Proper pipe marking per ANSI/ASME A13.1 requires:
- Color coding by fluid class: Red = Firefighting | Orange = Toxic/Corrosive | Yellow = Flammable/Combustible/Oxidizing | Gray = Steam/Hot Water | Green = Potable/Cooling/Cold Water | Blue = Compressed Air
- Size selection by pipe OD: Style 4 (7017-4-PK) fits 0.75–2.375" OD pipes. Brady also offers this marker in additional sizes for smaller and larger diameter pipes.
- Marker placement: At valves and flanges, at penetrations through walls/floors, at direction changes, and every 25–50 ft on straight runs.
Key Features
- Pre-printed ASBESTOS FREE legend — bold White on Blue for immediate visibility and ANSI A13.1 compliance for air/duct systems
- Factory-applied permanent acrylic adhesive — peel-and-press installation, no tools or hardware required
- B-946 high-gloss vinyl — abrasion-resistant, chemical-resistant, and weather-resistant for indoor and outdoor use
- 8–10 year outdoor durability — rated -40 °F to 180 °F service temperature range
- Pack value — 5 cards × 4 markers = 20 markers per pack for efficient facility-wide marking
- ASME/ANSI A13.1 compliant — meets the standard for pipe identification
Frequently Asked Questions
What pipe diameter does the Brady 7017-4-PK fit?
The 7017-4-PK (Style 4) is sized for pipes with an outside diameter of 0.75 to 2.375 inches. Brady offers the ASBESTOS FREE marker in additional size options for smaller and larger pipe diameters.
Why is the 7017-4-PK White on Blue?
White on Blue is the ANSI/ASME A13.1 color code for compressed air and duct systems. ASBESTOS FREE markers are commonly applied to air handling and ductwork piping to identify material composition and comply with facility safety programs.
How is the Brady 7017-4-PK installed?
Each marker has a factory-applied industrial-grade permanent acrylic adhesive backing. Simply peel off the backing and press the marker firmly onto a clean, dry pipe surface. No tools, hardware, or banding tape is required, though banding each end with directional flow arrow tape is recommended per Brady guidelines.
Is the Brady 7017-4-PK suitable for outdoor use?
Yes — the 7017-4-PK is rated for outdoor use with 8 to 10 years of outdoor durability. It is abrasion-resistant, chemical-resistant, and weather-resistant with a service temperature range of -40 °F to 180 °F.
Is the Brady 7017-4-PK ANSI/ASME A13.1 compliant?
Yes. The 7017-4-PK meets ASME/ANSI A13.1, the widely adopted standard for pipe identification. The White on Blue color scheme complies with the standard's requirements for compressed air and duct piping systems.
How many markers are included in the pack?
Each 7017-4-PK pack includes 5 cards with 4 markers per card, for a total of 20 markers per pack. This makes it an efficient choice for marking multiple pipes or for keeping extras on hand for facility maintenance.
