Transforming Technologies BFN801, Benchtop Ionizer Blower
Transforming Technologies BFN801, Benchtop Ionizer Blower

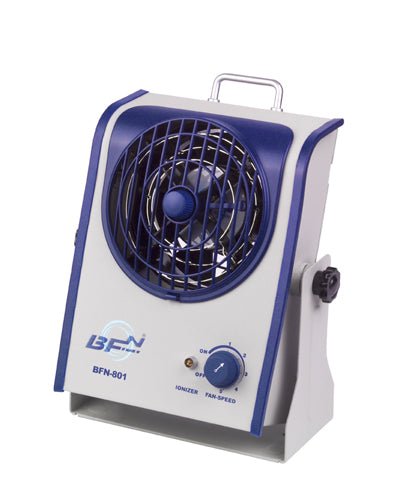

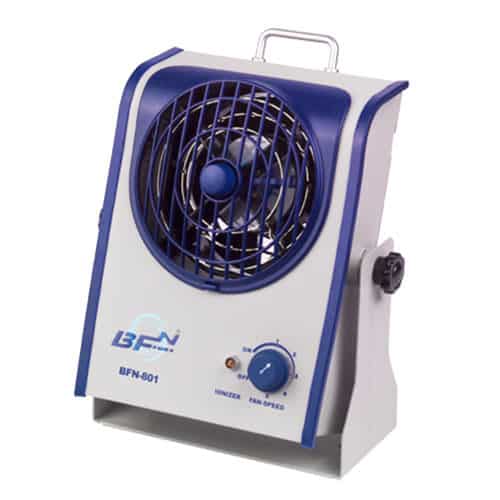

The Transforming Technologies BFN801 is a benchtop AC ionizer blower for localized static control at electronics workstations. Corona ionization continuously produces positive and negative air ions to help neutralize charge on insulators and other items that cannot be effectively grounded. Variable fan speed, an integrated emitter cleaner and a rugged steel enclosure support everyday workstation use without requiring an overhead installation.
Best Uses / Applications
- Electronic assembly, rework and inspection workstations.
- Medical device assembly and packaging processes requiring localized static control.
- Semiconductor manufacturing work areas.
- Handling plastic housings, packaging and process materials where grounding alone cannot control charge.
Key Features
- AC corona ionization produces positive and negative air ions.
- Manufacturer-specified 1 × 5 ft effective coverage.
- Variable fan speed to adjust airflow to the task.
- Integrated emitter point cleaning device.
- Removable front and rear fan guards with an automatic shut-off safety sensor.
- Powder-coated steel body for industrial workstation use.
Technical Specifications
| Specification | Manufacturer data |
|---|---|
| Model / SKU | BFN801 |
| Brand | Transforming Technologies |
| Type | Benchtop AC corona ionizing blower |
| Effective coverage | 1 × 5 ft |
| Typical balance | +10 V, as printed in the manufacturer datasheet |
| Typical decay time | Less than 2 seconds from 1,000 V to 100 V at 12 inches, fan speed on high |
| Power input | 120 V AC, 60 Hz, 36 W; 220 V AC, 50 Hz available by special order |
| Emitters | Titanium alloy |
| Status indication | ON/OFF status light |
| Operating temperature | 32–122°F (0–50°C) |
| Audible noise | 44 dB(A) at 1 meter |
| Enclosure / finish | Steel / off-white powder coat |
| Unit dimensions | 7.0 in W × 10.25 in H × 3.75 in D |
| Manufacturer unit weight | 8.25 lb (3.75 kg); not a packed shipping weight |
| Warranty | 1-year limited manufacturer warranty |
| Manufacturer-listed certification | CE |
| Manufacturer performance statement | Meets ANSI/ESD S20.20 offset-voltage requirements as tested per ANSI/ESD STM3.1 |
Balance and decay values are typical manufacturer measurements using a charged plate monitor. Verify performance at the actual working position and fan setting. The offset-voltage statement is not a determination of compliance for a complete workstation or ESD program.
Benchtop vs. Overhead Ionization
| Selection consideration | BFN801 benchtop blower | Overhead ionizer |
|---|---|---|
| Placement | On the bench, aimed toward the task | Above the work area, preserving bench space |
| Coverage selection | Specified 1 × 5 ft coverage; verify performance where parts are handled | Select the model and mounting position for the required work area |
| Installation priority | Available bench space and an unobstructed airflow path | Suitable mounting arrangement and measured performance at the work surface |
Frequently Asked Questions
Why use an ionizer with wrist straps and ESD mats?
Grounding controls charge on personnel and suitable conductive or dissipative objects. Insulating materials cannot be effectively grounded in the same way. The BFN801 supplies positive and negative air ions to help neutralize those charges; it supplements rather than replaces grounding.
How much area does the BFN801 cover?
The manufacturer specifies 1 × 5 ft effective coverage. Airflow obstructions, placement and fan settings affect the installation, so measure performance at the points where sensitive components are handled.
What does the less-than-two-second decay specification mean?
It is a typical discharge time from 1,000 V to 100 V measured at 12 inches with fan speed on high. Do not assume the same decay time at greater distances or lower fan speeds.
What power input is required?
The datasheet lists 120 V AC, 60 Hz, 36 W. A 220 V AC, 50 Hz version is available by special order; confirm the required voltage before ordering.
How should the BFN801 be maintained?
Use the integrated emitter cleaning device according to the manufacturer's operating instructions. The unit also has removable fan guards and an automatic shut-off sensor for service access. Base the cleaning and verification schedule on your environment and measured performance rather than a universal fixed interval.
What does the manufacturer state about ANSI/ESD performance?
The datasheet states that the BFN801 meets ANSI/ESD S20.20 offset-voltage requirements as tested per ANSI/ESD STM3.1. This is a specific product-performance statement, not a guarantee that the entire workstation or ESD program meets every requirement.
Technical Data Sheet
Download the BFN801 technical data sheet (PDF, revision March 20, 2023)
