Aven Tools 26800B-373-10-PRO SPZV-50 Trinocular Microscope, Mighty Cam Pro & Ultra-Glide Stand
Aven Tools 26800B-373-10-PRO SPZV-50 Trinocular Microscope, Mighty Cam Pro & Ultra-Glide Stand

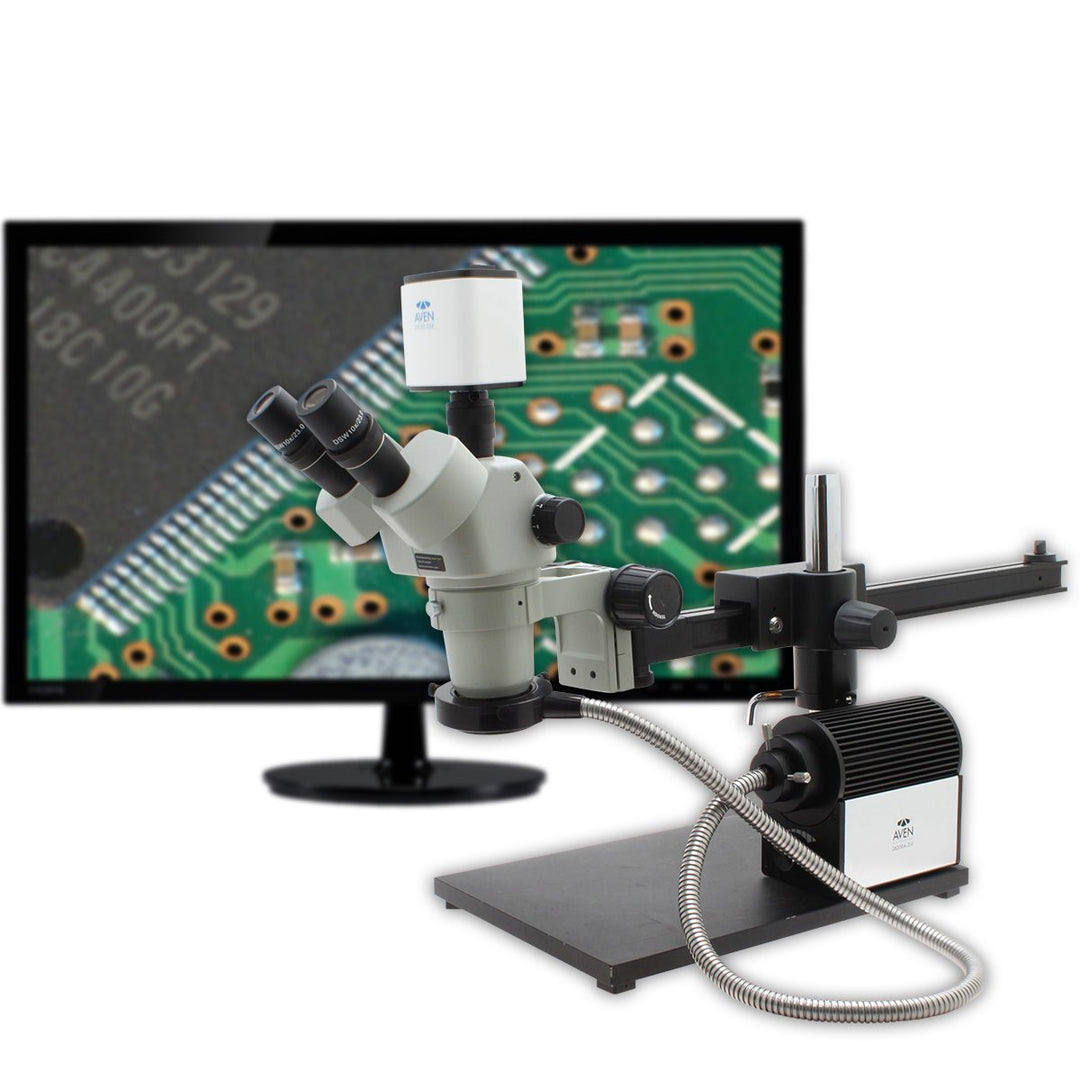

The Aven Tools 26800B-373-10-PRO combines an SPZV-50 trinocular stereo zoom microscope with a Mighty Cam Pro autofocus camera, Ultra-Glide boom stand, E-Arm focus mount, LED fiber-optic ring illumination and separate 22-inch Full HD monitor. The system provides 6.7x–50x optical magnification and a separately published 34x–255x on-screen magnification range.
Glide the microscope across a larger assembly, inspect through the eyepieces or share the view on the monitor, and capture images for your quality records. HDMI operation supports built-in measurements and SD-card capture without a PC. Connect the camera to a compatible Windows PC for advanced imaging, annotations, reporting, panoramic stitching and depth-of-field fusion.
Best Uses / Applications
- Precision assembly and production inspection.
- PCB, electrical-component and solder-joint visual inspection.
- Quality-control documentation and calibrated measurements.
- Medical-device and aerospace inspection applications.
- Research, development and educational demonstrations.
- Scanning larger workpieces with the gliding boom arm.
- Shared viewing and image review on the included 22-inch monitor.
Key Features
- SPZV-50 true trinocular microscope with 360° rotatable body, 45° inclined eyepiece tubes and camera port.
- 6.7x–50x optical magnification, 7.46:1 zoom ratio and click-stop zoom.
- Two 10x FN23 eyepieces and 108 mm working distance without an auxiliary lens, per detailed specifications.
- Mighty Cam Pro 26100-258 continuous and single-shot autofocus with mouse-wheel fine tuning.
- 1080p live HDMI output at up to 60 FPS; USB connection for PC imaging.
- Built-in measurement tools, calibration and SD-card image/video capture.
- Ultra-Glide stand with heavy metal base and 23-inch gliding arm.
- Tiltable E-Arm focus mount with precise vertical focus adjustment.
- Separate LED fiber-optic illumination, ring light and adapter.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-10-PRO |
|---|---|
| Microscope | SPZV-50 true trinocular stereo zoom |
| Optical / Published On-Screen Magnification | 6.7x–50x / 34x–255x |
| Included Eyepieces | Two 10x FN23 eyepieces, per detailed table |
| Body / Eyepiece Inclination | 360° rotatable / 45° |
| Zoom Ratio | 7.46:1 |
| Published Field of View | 34.3–3.6 mm, per features list |
| Working Distance | 108 mm without auxiliary lens, per detailed table |
| Interpupillary Distance | 52–75 mm |
| Diopter Adjustment | +5.6D to −7.2D on both eyepiece tubes |
| Optical System | Greenough |
| Published Microscope Weight | 5 lb, component specification |
Manufacturer source discrepancies: A descriptive section mentions 15x eyepieces and 84 mm working distance, but the detailed SPZV-50 table specifies included 10x eyepieces and 108 mm without an auxiliary lens. This listing follows that detailed configuration. The stand narrative also mentions a 15.5-inch post, while its features and table list 13.5 inches. Confirm configuration where clearance or dimensions are critical. Optical magnification and screen magnification are separate values.
Optional Optics, Not Included
| Option | Published Detail |
|---|---|
| 15x FN15 or 20x FN11.4 eyepieces | Available to extend the magnification range. |
| 0.5x auxiliary lens | 240 mm working distance. |
| 0.75x auxiliary lens | 132 mm working distance. |
| 1.6x auxiliary lens | 50 mm working distance. |
| 2x auxiliary lens | 41 mm working distance. |
Camera & Monitor Specifications
| Camera | 26100-258 Mighty Cam Pro autofocus |
|---|---|
| Manufacturer-Listed Sensor / Size | CMOS Sony IMX586 / 5.28 mm, 1/3 inch |
| Dynamic / Static Resolution | 2MP, 1920 × 1080 / 6MP, 3264 × 1836 |
| Live Frame Rate | 60 FPS HDMI; 50 FPS USB 2.0 |
| Video Recording | 30 FPS to SD card or PC |
| Exposure / White Balance | Auto/manual; exposure 0.002–10 seconds |
| Image Controls | Gamma, gain, WDR and noise reduction |
| Interfaces / Optical Port | HDMI, USB 2.0, SD card / standard C-mount |
| Listed Software | Built-in Cloud 1.0; PC Capture 2.3; Mosaic software in package list |
| PC Configuration | Windows 10/11; Intel Core i5 or better, quad-core or more; 8 GB RAM or more |
| Image Formats | HDMI JPG/TIF; USB TIFF/JPG/PNG/DICOM |
| Camera Dimensions / Power | 90.7 × 78 × 70.8 mm / 2.4 W |
| Approximate Camera Weight | 1 lb |
| Monitor | 26700-406, 22-inch LCD; 1920 × 1080 pixels |
| Monitor Input / Listed Weight | 12 V DC / 14.6 lb |
Stand & Lighting Specifications
| Stand / Focus Mount | 26800B-556 Ultra-Glide / 26800B-518 E-Arm |
|---|---|
| Base Size / Listed Weight | 15 × 10.5 inches / 35 lb |
| Vertical Post Length / Diameter | 13.5 inches / 37.2 mm, per stand table |
| Extension Post / Horizontal Arm | 225 mm / 23 inches |
| Focus-Mount Hole Diameter | 15.875 mm / 5/8 inch |
| Illuminator | 26200A-310; 20 W in detailed table, 24 W in package list |
| Illuminator Input | 96–265 VAC, 50–60 Hz |
| Color Temperature | 5600 K |
| Published Intensity / Noise | Up to 1600 lx, test conditions not stated / less than 30 dB |
| Ambient / Working Temperature | 5–45°C / less than 53°C |
| Expected Lamp Life | 10,000 hours |
| Ring Light / Adapter | 26200A-402 / 26800B-460 |
| Ring Inner Diameter / Length | 58.674 mm / 914.4 mm |
| Ring Adapter Diameter | 15.875 mm |
Lighting discrepancy: Aven identifies the same illuminator as 20 W in the detailed specifications and 24 W in the package list. Confirm the supplied version if power rating is important. Lighting is a separate fiber-optic system, not an integrated LED ring in the focus mount. An anti-static illuminator-construction claim does not establish an ESD-safe rating for the complete system.
HDMI vs. PC Imaging
| Workflow | HDMI Mode | PC Mode |
|---|---|---|
| Viewing | Included monitor; up to 60 FPS live | USB-connected PC; up to 50 FPS live |
| Measurements | Built-in lines, rectangles, polygons, circles, angles and point-to-line tools | Advanced measurement, annotation and attribute editing |
| Documentation | SD-card image/video capture | Capture, processing, reporting, stitching and depth-of-field fusion |
| Computer Required | No | Yes |
Calibrate measurements for the current optics and zoom before dimensional acceptance decisions. The supplied documentation does not establish a measurement-accuracy tolerance.
Package Contents
- 26100-258 Mighty Cam Pro camera.
- SPZV-50 microscope body with photo tube, two 10x eyepieces, rubber eyeguards, dust cover and instruction manual, per detailed table.
- 26800B-556 Ultra-Glide stand.
- 26800B-518 E-Arm focus mount.
- 26200A-310 fiber-optic illuminator.
- 26200A-402 fiber-optic ring light.
- 26800B-460 ring-light adapter.
- 26700-406 22-inch LCD HD monitor.
The camera package additionally lists a USB mouse, HDMI cable, power supply, SD card and Mosaic software. The optional tilt table shown in the manufacturer's material is sold separately.
Frequently Asked Questions
Does the system require a PC?
No for HDMI viewing, built-in measurements and SD-card capture. A compatible Windows PC is required for the advanced PC software functions.
What are the magnification ranges?
Aven lists 6.7x–50x optical magnification and 34x–255x on-screen magnification. The screen value is not an optical eyepiece value.
Are the included eyepieces 10x or 15x?
The detailed microscope table identifies two 10x FN23 eyepieces. A descriptive section conflicts by mentioning 15x; confirm supplied optics if critical.
What is the working distance?
The detailed SPZV-50 table lists 108 mm without an auxiliary lens. A descriptive section's 84 mm value conflicts with that table.
Does 60 FPS apply to recorded video?
No. Aven lists 60 FPS live HDMI, 50 FPS live USB and 30 FPS video recording.
Which autofocus modes are supported?
Continuous and single-shot autofocus, with mouse-wheel fine tuning.
Is this a 4K camera?
No. This Mighty Cam Pro bundle provides 1080p live output.
Is the tilt table included?
No. The manufacturer's illustrated tilt table is explicitly sold separately.
Is the fiber-optic illuminator 20 W or 24 W?
The detailed table lists 20 W, while the package list says 24 W for the same part number. Confirm the supplied version if needed.
