Aven Tools 26700-220-505 Mighty Scope ClearVue Digital Microscope, 8X–25X, Dual Gooseneck LEDs & Backlight
Aven Tools 26700-220-505 Mighty Scope ClearVue Digital Microscope, 8X–25X, Dual Gooseneck LEDs & Backlight

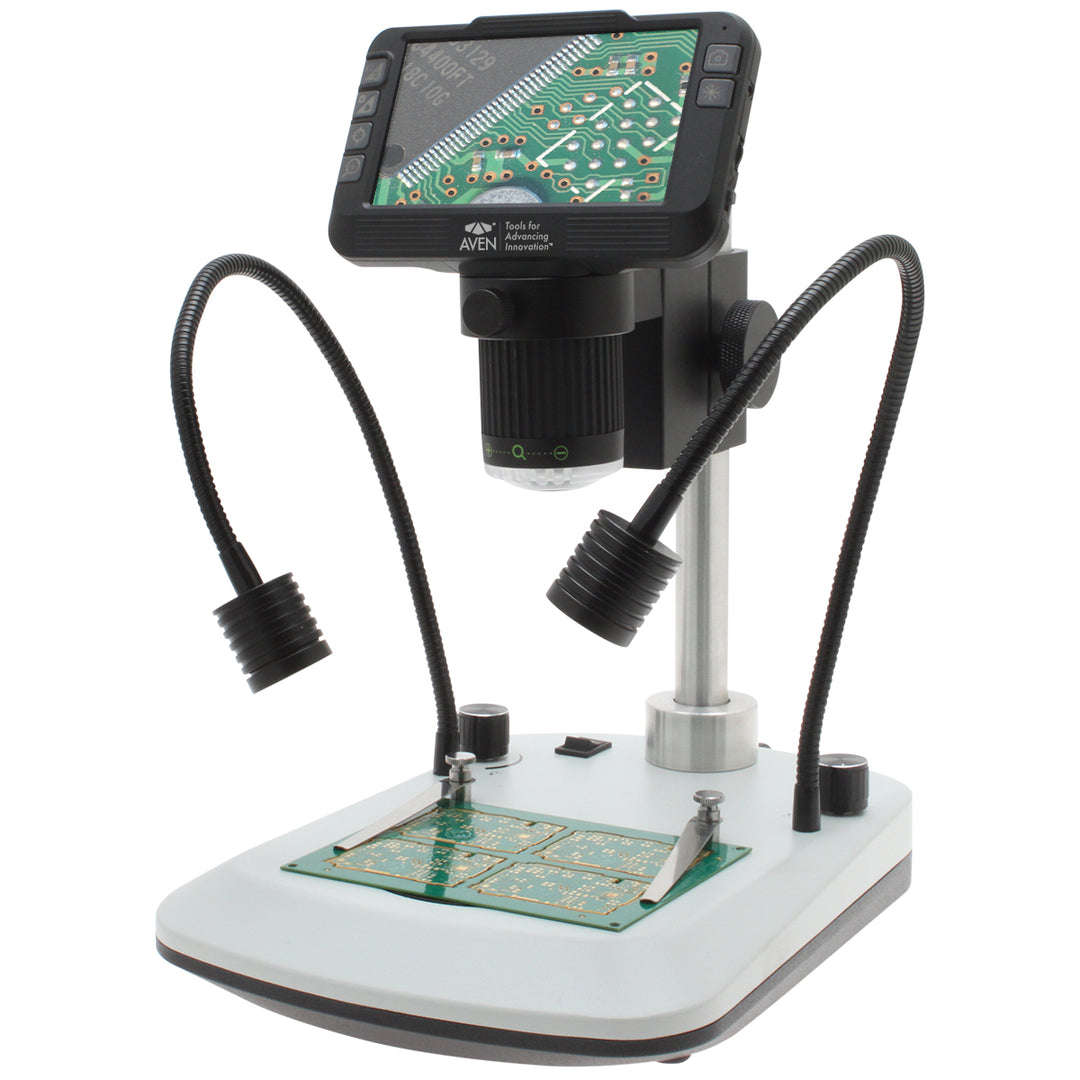

The Aven 26700-220-505 Mighty Scope ClearVue combines an 8X–25X digital microscope, built-in 5-inch LCD screen and a post stand with dual 14.5-inch LED goosenecks and LED backlight. View small parts directly on the screen, position the flexible lights to suit reflective surfaces, or use transmitted illumination for transparent samples.
At the inspection bench, the screen-based format lets you view components without looking through eyepieces. Capture images and videos to the included microSD card without a computer, share live images through HDMI, or connect by USB for the included ezImageX3 Windows 10 software's measurement and comparison tools.
Best Uses / Applications
- Electronics inspection, precision assembly and repair.
- Quality control and production documentation using image/video capture.
- Inspection of shiny parts with repositionable gooseneck lighting.
- Transparent-sample viewing with the stand's backlight.
- Training and demonstrations using an external HDMI monitor.
- Research and development and educational inspection stations.
Key Features
- Compact all-in-one microscope with 8X–25X magnification and a 5-inch color LCD.
- Manufacturer-listed 1080p Full HD imaging at 60 FPS.
- Dimmable microscope LEDs plus dual flexible gooseneck LEDs and stand backlight.
- Independent adjustment of goosenecks and backlight using two stand-base brightness controls.
- HDMI output and Mini USB connection.
- Direct microSD image/video capture without a PC.
- Included rechargeable battery for microscope operation; stand lighting has a separate power specification.
- ezImageX3 download for image capture, measurement, line/angle/circle tools, grid overlays and comparison modes.
Microscope Specifications
| Manufacturer / part number | Aven Tools / 26700-220-505 |
|---|---|
| UPC | 766955376002 |
| Magnification | 8X–25X |
| Image sensor | 1/4-inch 2M CMOS sensor |
| Effective pixels | 1920 × 1080 |
| LCD | 5-inch color TFT |
| Imaging | 1080p Full HD at 60 FPS, as listed by Aven |
| Interfaces | Mini USB / Type A HDMI |
| Battery | 2600 mAh 18650 lithium-ion battery, included |
| Microscope power supply input | 100–240 V, 50–60 Hz, 0.4 A |
| Microscope power supply output | 5 V DC, 2.0 A, 10 W maximum |
| Scope dimensions | 145 × 148 × 78 mm |
| Software | ezImageX3 Windows 10 measuring software via download code |
| Memory card | 16 GB microSD card included |
Dual-Gooseneck / Backlight Stand Specifications
| Stand part number | 26800B-505 |
|---|---|
| Lighting | Dual 14.5-inch LED goosenecks and LED backlight |
| Stand-table dimensions | 11.02 × 8.07 × 12.2 inches |
| Stand-table weight | 3.45 lb |
| Stand power | 90–240 V |
| Stand-table package contents | 26800B-505 stand; frosted diffuser backlight plate; dual-sided black plate; 5-foot power cable |
Manufacturer data clarification: Aven's narrative lists a 10-inch post, 7.6-inch maximum working distance and an 8.07 × 10.2 × 1.3-inch base. Its general ClearVue table instead lists a 7.5 × 8-inch base, 9-inch post and approximately 4.8 lb, while the dedicated 26800B-505 table gives the stand dimensions and weight above. These entries differ; confirm critical clearance, footprint and total system weight before planning an installation. They are not combined here into a single verified system measurement.
Included System Contents
- Mighty Scope ClearVue digital microscope and illuminated post-stand configuration.
- USB cable and microscope power supply.
- Snapshot remote control.
- 16 GB microSD card.
- 2600 mAh 18650 lithium-ion battery.
- User guide and free ezImageX3 software download.
- Dedicated stand contents listed in the stand specification table.
External monitors and optional flex-arm or spring-balanced-arm configurations shown in manufacturer illustrations are not part of this listed post-stand configuration.
Compare Viewing and Capture Modes
| Mode | Best use | Requirements / capability |
|---|---|---|
| Built-in screen and microSD | Bench inspection and standalone capture | View on the 5-inch screen; save images/videos to included card without a PC |
| HDMI | Demonstrations and shared viewing | Connect an external HD monitor, not included |
| USB with ezImageX3 | Computer capture, measurement and comparison | Aven lists Windows 10 compatibility; confirm other operating systems before purchase |
Frequently Asked Questions
What magnification does 26700-220-505 provide?
Aven lists an 8X–25X magnification range for this ClearVue system.
Can it operate without a computer?
Yes. The built-in screen supports viewing, and images/videos can be saved directly to the included microSD card without a PC.
What lighting is supplied?
This configuration includes the microscope's dimmable LEDs, dual flexible 14.5-inch LED goosenecks and an LED backlight in the stand.
Can the goosenecks and backlight be adjusted separately?
Yes. Aven describes two brightness-control knobs at the stand base for independent adjustment.
Can I show the image on a larger monitor?
Yes. HDMI output supports an external HD monitor for shared viewing or demonstrations. An external monitor is not listed among the included contents.
Does it include measurement software?
Aven includes an ezImageX3 download for Windows 10. It offers measurement, image/video capture, line/angle/circle tools, grid overlays and comparison modes. Compatibility with other operating systems is not confirmed by the supplied information.
Does the rechargeable battery power everything?
Aven specifies a rechargeable battery for the microscope. The illuminated stand has its own 90–240 V power specification; do not assume battery operation of the goosenecks and backlight.
Why are there multiple stand measurements?
Aven's narrative, general system table and dedicated 26800B-505 table differ. Confirm critical installation measurements and complete system weight before ordering for a constrained workspace.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
