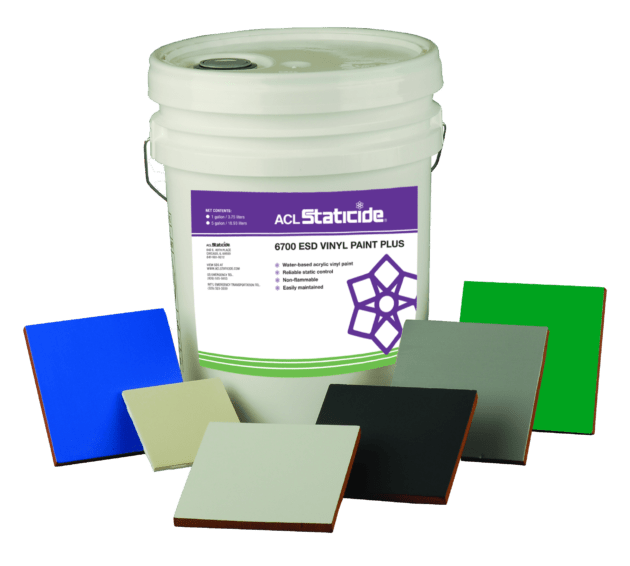

ACL Staticide 6700 ESD Paint Plus, 1 Gallon
ACL Staticide 6700 ESD Paint Plus, 1 Gallon
Build a static-controlled interior workspace with ACL Staticide 6700 ESD Paint Plus, a one-part, water-based acrylic coating for properly prepared concrete, wood, and metal surfaces. Its matte finish and listed resistance to abrasion, oils, and washing make it an option for ESD areas where a painted surface is needed. Choose from the gray color variants listed on this page.
Product specifications
| Specification | Details |
|---|---|
| Manufacturer | ACL Staticide |
| Product | 6700 ESD Paint Plus |
| Coating type | One-part, water-based acrylic |
| Intended use | Interior static-controlled environments |
| Listed substrates | Concrete, walls, wood, and metal with proper preparation |
| Finish | Matte |
| Available colors | Light Gray, Medium Gray, Dark Gray |
| Package size | 1 gallon |
| Coverage listed | Approximately 200 sq. ft. per gallon at 8 mils wet film thickness |
| VOC information | 50 g/L (0.42 lb/gal), listed as low odor / low VOC |
Electrical properties and grounding
ACL’s product information describes a dissipative formula with resistance of 10⁷–10⁹ ohms and a conductive formula option with resistance of 10⁴–10⁶ ohms, tested according to ANSI/ESD STM7.1. The color variants shown on this listing do not identify a separate formula choice. Confirm the selected product’s resistance specification with ACL Staticide before ordering for a defined ESD program. The manufacturer states that conformity with ANSI/ESD S20.20 depends on proper grounding and testing. Copper grounding strips are available for connection to an earth-ground or grounding system.
Best uses
- Interior ESD work areas with properly prepared concrete floors.
- Static-controlled rooms where a matte coating is desired on compatible walls, wood, or metal surfaces.
- Projects where the installer can confirm the correct resistance formula, grounding plan, and acceptance testing before application.
Application considerations
- Prepare the surface according to the manufacturer’s instructions and the substrate condition.
- Ground the coating system as required and test the completed surface using the applicable method.
- Confirm coverage, film thickness, cure schedule, and the correct resistance formula with current manufacturer documentation before use.
Choosing between 6700 ESD Paint Plus and 4400 ESD Polycoat
| Product | Coating base listed | Selection note |
|---|---|---|
| 6700 ESD Paint Plus | Water-based acrylic | Listed with dissipative and conductive formula options. Verify which resistance specification applies to the selected listing before purchase. |
| 4400 ESD Polycoat | Water-based polyurethane | Separate ACL Staticide coating line; compare its published substrate and resistance specifications against your project requirements. |
Frequently asked questions
What surfaces can ACL Staticide 6700 be used on?
The product information lists interior concrete floors, walls, wood, and metal with proper preparation. Verify compatibility with the specific substrate before application.
What resistance range does 6700 provide?
Manufacturer information describes dissipative and conductive formulas with different resistance ranges. Confirm the formula and target range for the product you are ordering, then ground and test the installed surface as required.
What colors are available?
This listing offers Light Gray, Medium Gray, and Dark Gray variants. Select from the available options on this page.
How much area does one gallon cover?
The current product information lists approximately 200 square feet per gallon at an 8-mil wet film thickness. Actual coverage can vary with substrate and application; consult current manufacturer guidance for project estimates.
Does the coating need to be grounded?
Yes. ACL Staticide states that conformity with ANSI/ESD S20.20 depends on grounding and testing according to the applicable method. Plan the grounding system and verify the finished installation.
