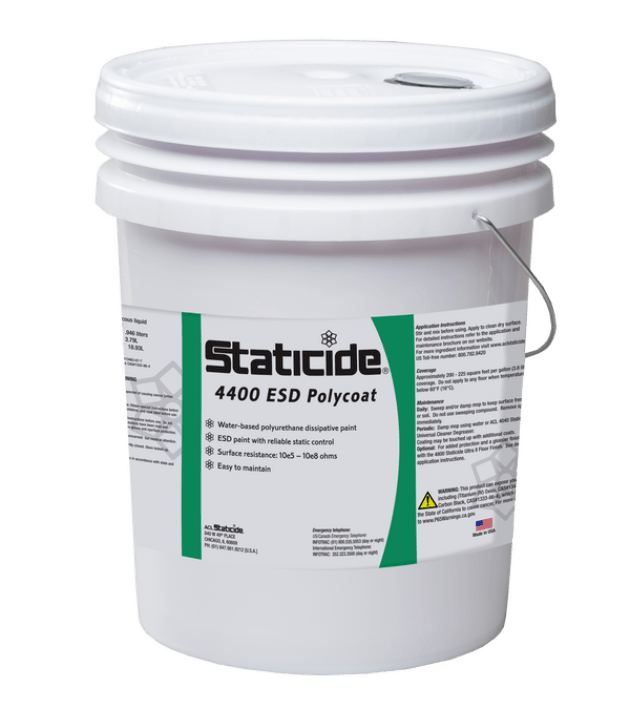

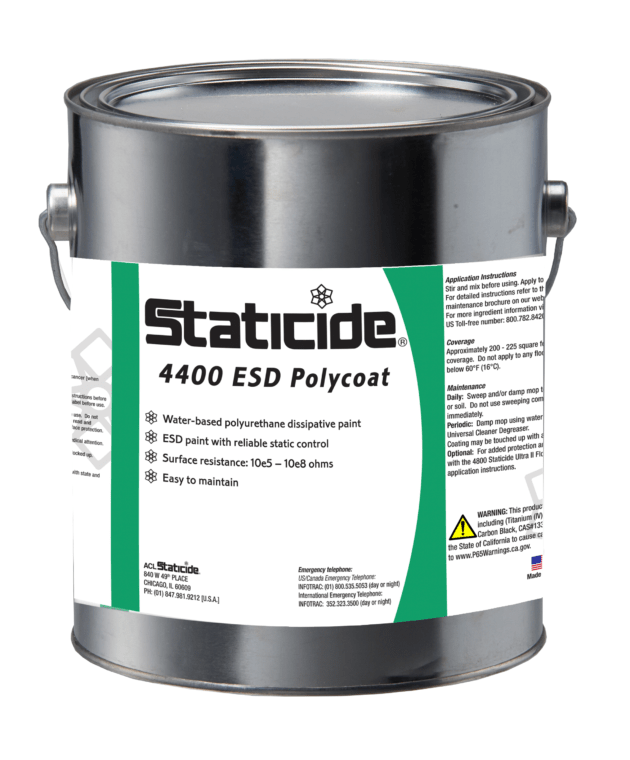

ACL Staticide 4400 ESD Polycoat Paint - Light Gray - 1 Gallon or 5 Gallons
ACL Staticide 4400 ESD Polycoat Paint — Light Gray, Medium Gray, Dark Gray
ACL Staticide 4400 ESD Polycoat Paint is a durable, water-based polyurethane coating engineered to provide permanent electrostatic discharge (ESD) protection on concrete floors, workbenches, walls, and other surfaces in electronics manufacturing environments. Available in Light Gray, Medium Gray, and Dark Gray in 1-gallon and 5-gallon pail sizes, the 4400 series creates a conductive-to-static-dissipative surface that meets ANSI/ESD S20.20 and IEC 61340-5-1 requirements for ESD-protected areas (EPAs).
Key Specifications
| Specification | Detail |
|---|---|
| Model | ACL Staticide 4400 |
| Part Numbers | 4400LG1, 4400MG1, 4400DG1 (1 Gallon); 4400LG5, 4400MG5, 4400DG5 (5 Gallon Pail) |
| Base | Water-based polyurethane |
| Colors Available | Light Gray, Medium Gray, Dark Gray |
| Available Sizes | 1 Gallon, 5 Gallon Pail |
| Surface Resistivity | 10⁶ to 10⁹ ohms/square |
| Classification | Conductive to Static Dissipative |
| Coverage | Approximately 300–400 sq ft per gallon (2 coats) |
| Compliance | ANSI/ESD S20.20, IEC 61340-5-1 |
| Manufacturer | ACL Staticide |
Features & Benefits
- Permanent ESD Protection — conductivity is built into the coating and won't wash out or wear off with normal use
- Water-Based Polyurethane Formula — low VOC, easy soap-and-water cleanup, and safer for indoor application
- Three Color Options — Light Gray, Medium Gray, and Dark Gray for professional, consistent EPA appearance
- Broad Surface Compatibility — bonds to concrete floors, wood workbenches, drywall, and masonry surfaces
- Flexible Application Methods — apply by brush, roller, or spray for large or detailed coverage areas
- ANSI/ESD S20.20 Compliant — meets industry-standard requirements for ESD-protected area flooring and surfaces
Applications
- ESD-protected area (EPA) concrete floors in electronics manufacturing
- Workbench and table surface coating for static-sensitive assembly
- Walls and partitions in semiconductor fabrication and electronics repair facilities
- Storage areas for ESD-sensitive components and assemblies
- Military, aerospace, and defense electronics facilities
- Retrofit ESD protection on existing concrete or masonry surfaces
Available Sizes & SKUs
| Size | Color | SKU |
|---|---|---|
| 1 Gallon | Light Gray | 4400LG1 |
| 1 Gallon | Medium Gray | 4400MG1 |
| 1 Gallon | Dark Gray | 4400DG1 |
| 5 Gallon Pail | Light Gray | 4400LG5 |
| 5 Gallon Pail | Medium Gray | 4400MG5 |
| 5 Gallon Pail | Dark Gray | 4400DG5 |

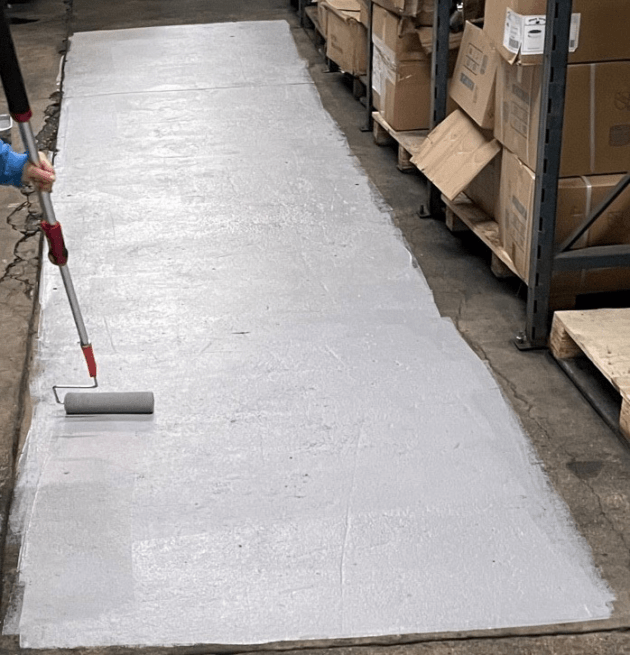

Application Instructions
- Surface must be clean, dry, and free of oils, wax, and contaminants before application
- Apply 2 coats for optimal ESD performance and surface durability
- Allow 24 hours between coats
- Full cure: 7 days before heavy foot traffic or equipment
- Coverage: approximately 300–400 sq ft per gallon per coat
Frequently Asked Questions
What is ACL Staticide 4400 ESD Polycoat Paint?
ACL Staticide 4400 is a water-based polyurethane ESD-protective coating designed to create a permanent conductive-to-static-dissipative surface on floors, walls, and workbenches in electronics manufacturing and ESD-protected areas. It meets ANSI/ESD S20.20 and IEC 61340-5-1 compliance requirements.
What surface resistivity does the 4400 provide?
ACL Staticide 4400 provides a surface resistivity of 10⁶ to 10⁹ ohms/square, placing it in the conductive-to-static-dissipative range as defined by ANSI/ESD S20.20 and IEC 61340-5-1 standards.
What colors is ACL Staticide 4400 available in?
The 4400 series is available in three colors: Light Gray (LG), Medium Gray (MG), and Dark Gray (DG), in both 1-gallon and 5-gallon pail sizes. Select your color and size from the variant options above.
How many coats of 4400 ESD Polycoat are required?
Two coats are recommended for optimal ESD performance and durability. Allow 24 hours between coats and 7 days of full cure before heavy traffic or equipment placement.
What surfaces can ACL Staticide 4400 be applied to?
The 4400 is suitable for concrete floors, wood workbenches, drywall, and masonry surfaces. The substrate must be clean, dry, and free of oils, wax, or sealers that may prevent adhesion. Always test on a small area first if surface history is unknown.
Is the 4400 ESD Polycoat Paint permanent?
Yes — the ESD conductivity is built into the polyurethane coating matrix and will not wash out with normal cleaning. Unlike topical antistatic treatments, the 4400 provides a durable, long-lasting ESD-protective surface.
How much coverage does one gallon provide?
One gallon covers approximately 300–400 square feet per coat. For a two-coat system, plan for one gallon per 150–200 square feet of finished surface area.
