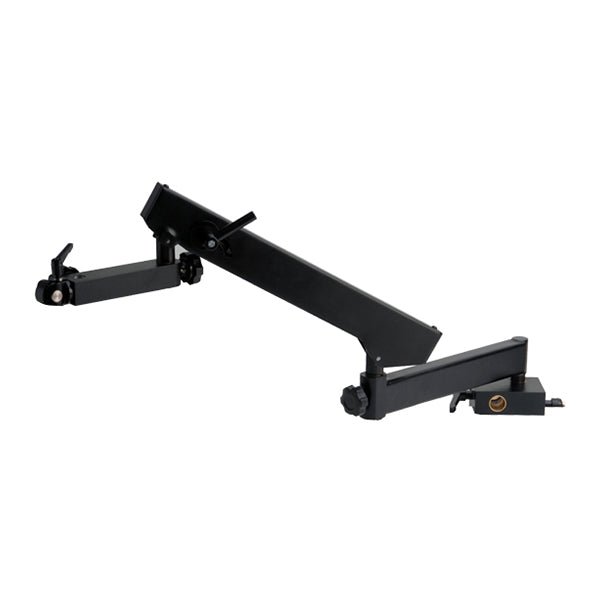

Aven Tools 26800B-560, Standard Articulating Arm Stand

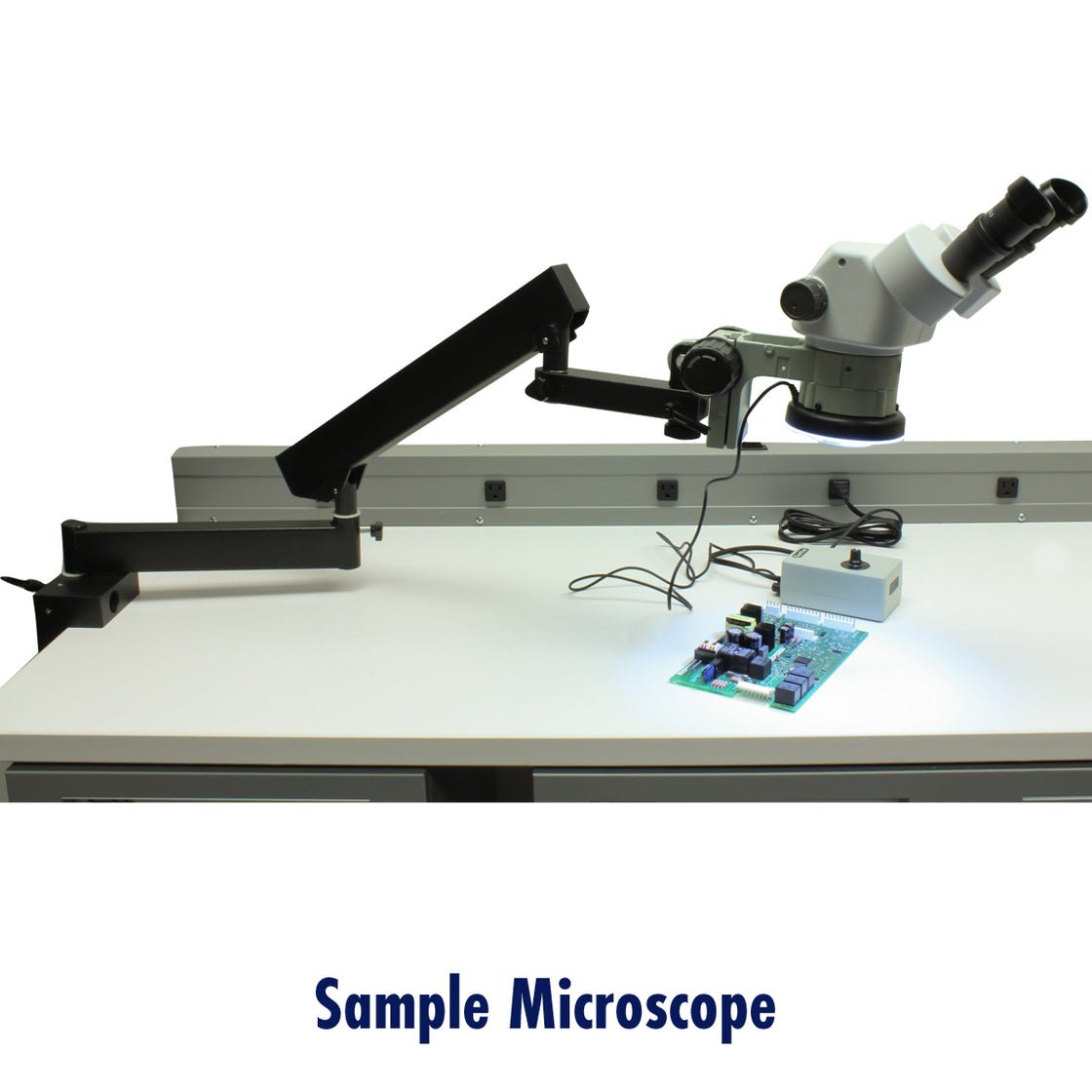

This versatile articulating arm stand comes with with a clamp ideal for covering a large working area, and ensuring users have maximum flexibility in positioning the scope. Can be moved out of the way when microscope is not in use to help create more bench space for your work. All metal construction. Will accept bodies SSZ, SPZ series, DSZ series and NSW series.

Focus mount SCW-PA with tiltable arbor 26800B-521 or E-ARM required.



Durable Stability

Vertical and horizontal adjustment

• Allows great flexibility in positioning microscopes
• Can be moved out of way when not in use
• All metal construction

Accessories

  For microscope or lens  attachment, a Focus mount SCW-PA with tiltable arbor 26800B-521 or E-ARM is required.

Features

• Allows great flexibility in positioning microscopes
• Can be moved out of way when not in use
• All metal construction

Specs

Standard Articulating Arm Stand
Clamp Size	100mm x 75mm x 115mm
Clamp Opening	60mm
Horizontal Arm Length	330mm
Front Arm Length	170mm
Revolution	360° in horizontal direction
Max Radius | Min Radius	810mm | 330mm
Focus Mount Hole Diameter	15.875mm (5/8";)
Base Mount Hole Diameter	22.2mm
Mounts Accepted	SCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
Accepted Bodies	SSZ, SPZ, DSZ and NSW series
Weight	12.78 lbs (5.8kg)
Package Contents	One articulating arm Users manual
