Aven Tools 26800B-479 Compact Gliding Stage X/Y/R
Aven Tools
SKU: 26800B-479
**All Workbenches are final Sale! No returns or cancellations**
**All Workbenches are final Sale! No returns or cancellations**
Proud to announce we are ISO 9001:2015 | 13485:2016 Certified
Proud to announce we are ISO 9001:2015 | 13485:2016 Certified
If you have any Questions? Call us at (651) 600-3838
If you have any Questions? Call us at (651) 600-3838

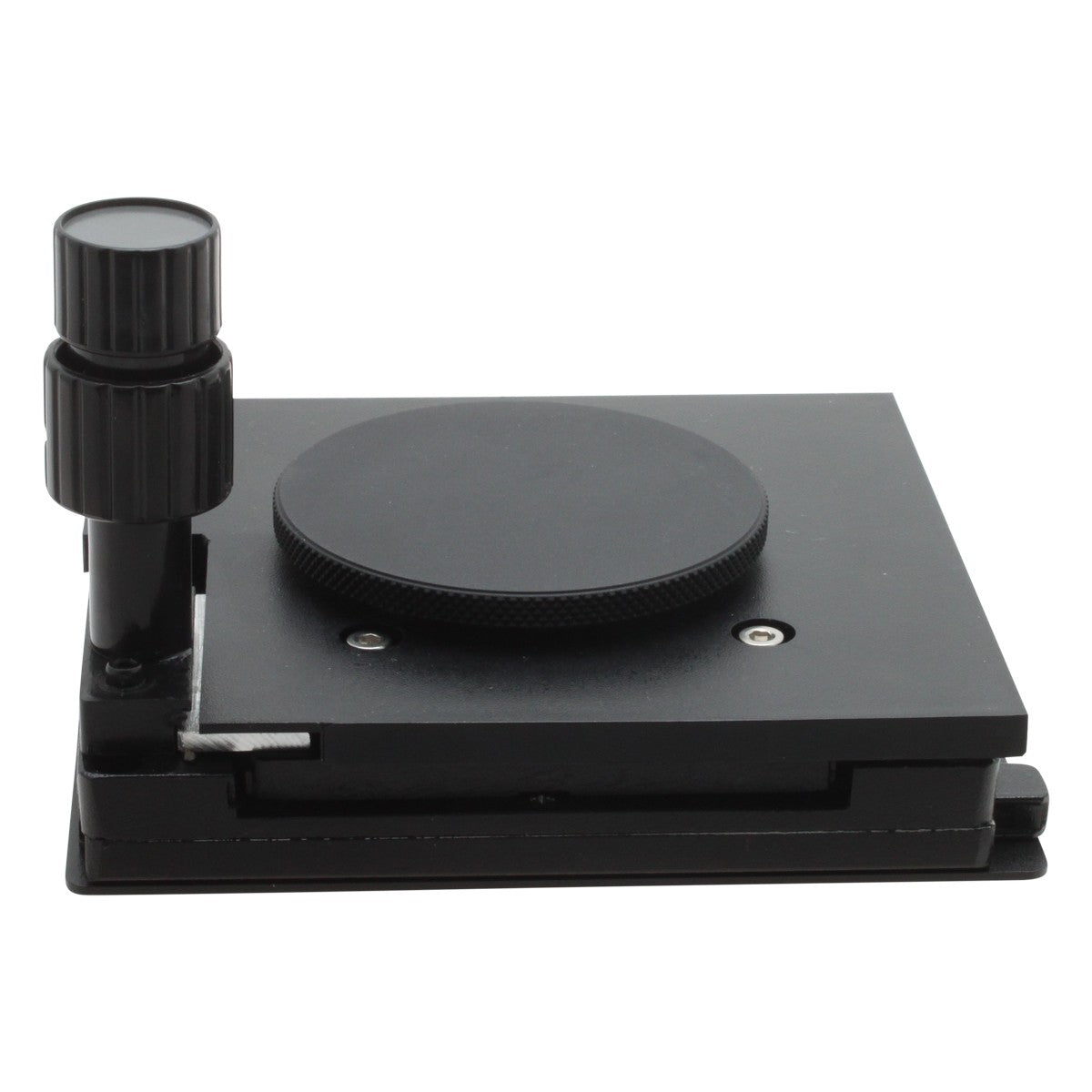

Compact gliding stage with horizontal, vertical and 360 movement. Ideal for inspecting small parts, micro chips, PCB boards, and more. Durable all-metal construction ensures a long working life, with rack and pinion gears for smooth motion.
This gliding stage has been optimized for use with inspection systems where work space is limited. The compact design makes it easy for operators to add the stage to an existing microscope setup, and easily set aside when not in use.

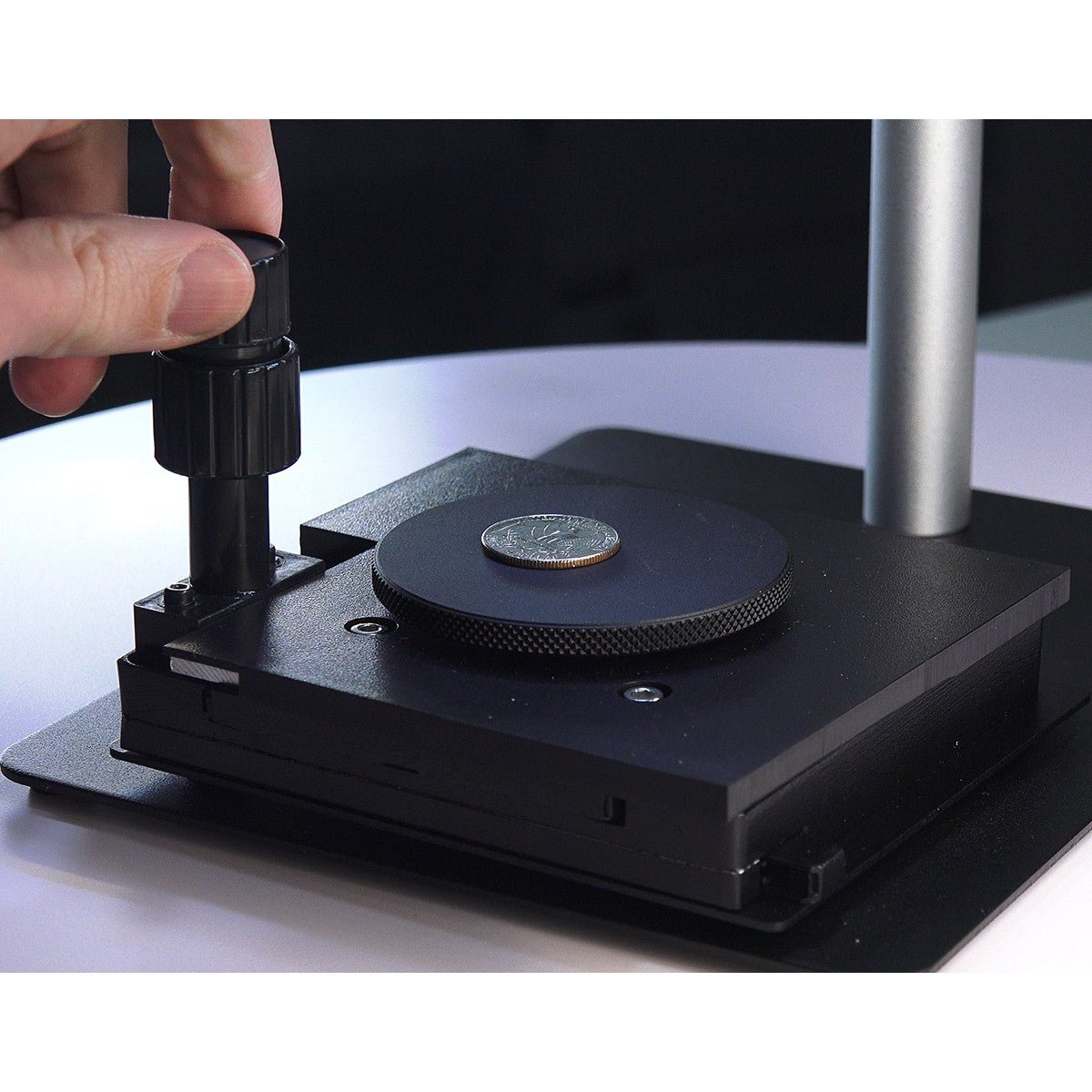

By utilizing all-metal construction rack and pinion gears, the stage smoothly glides horizontally and vertically directions in precise increments.

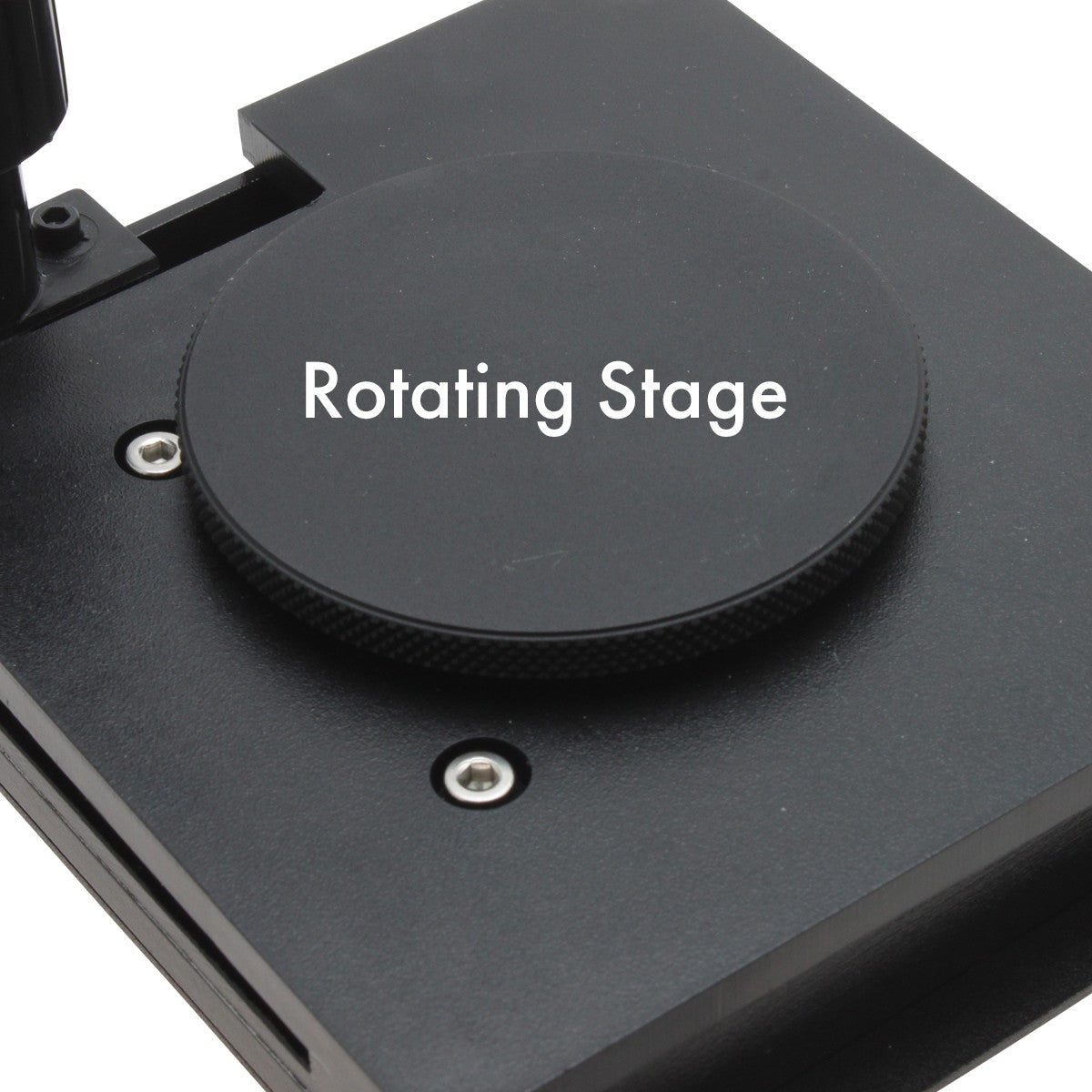

The rotating stage provides 360 degrees of smooth rotation

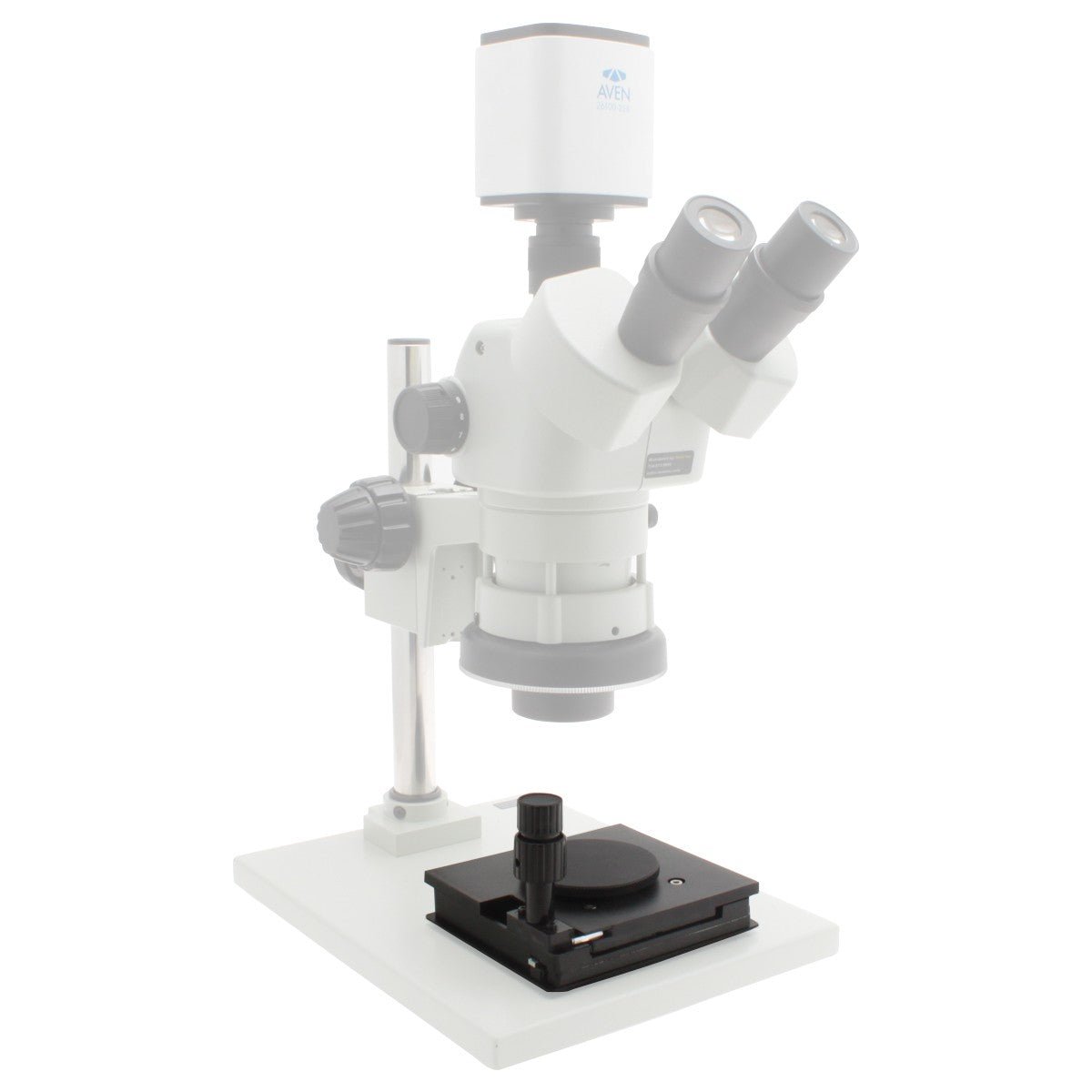

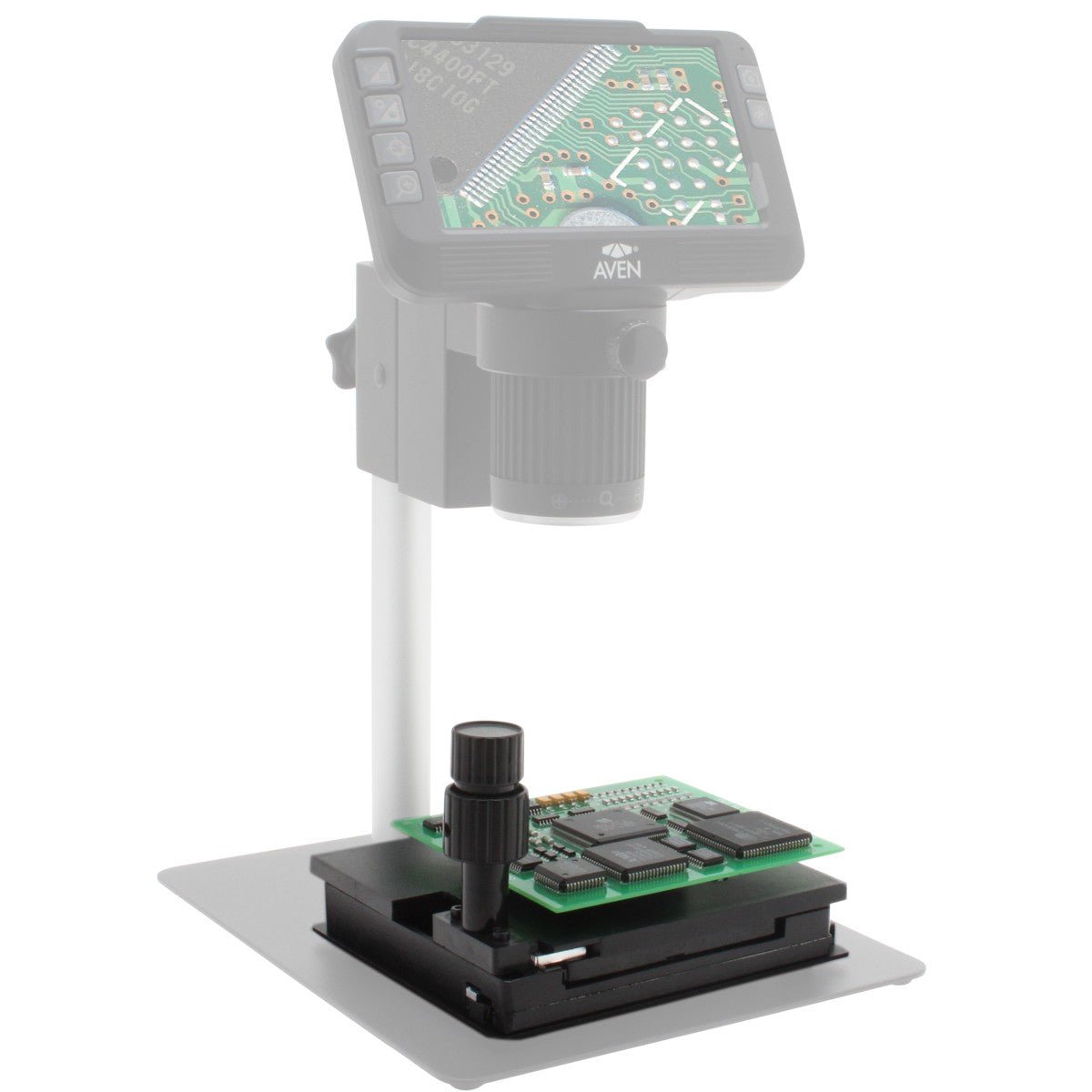

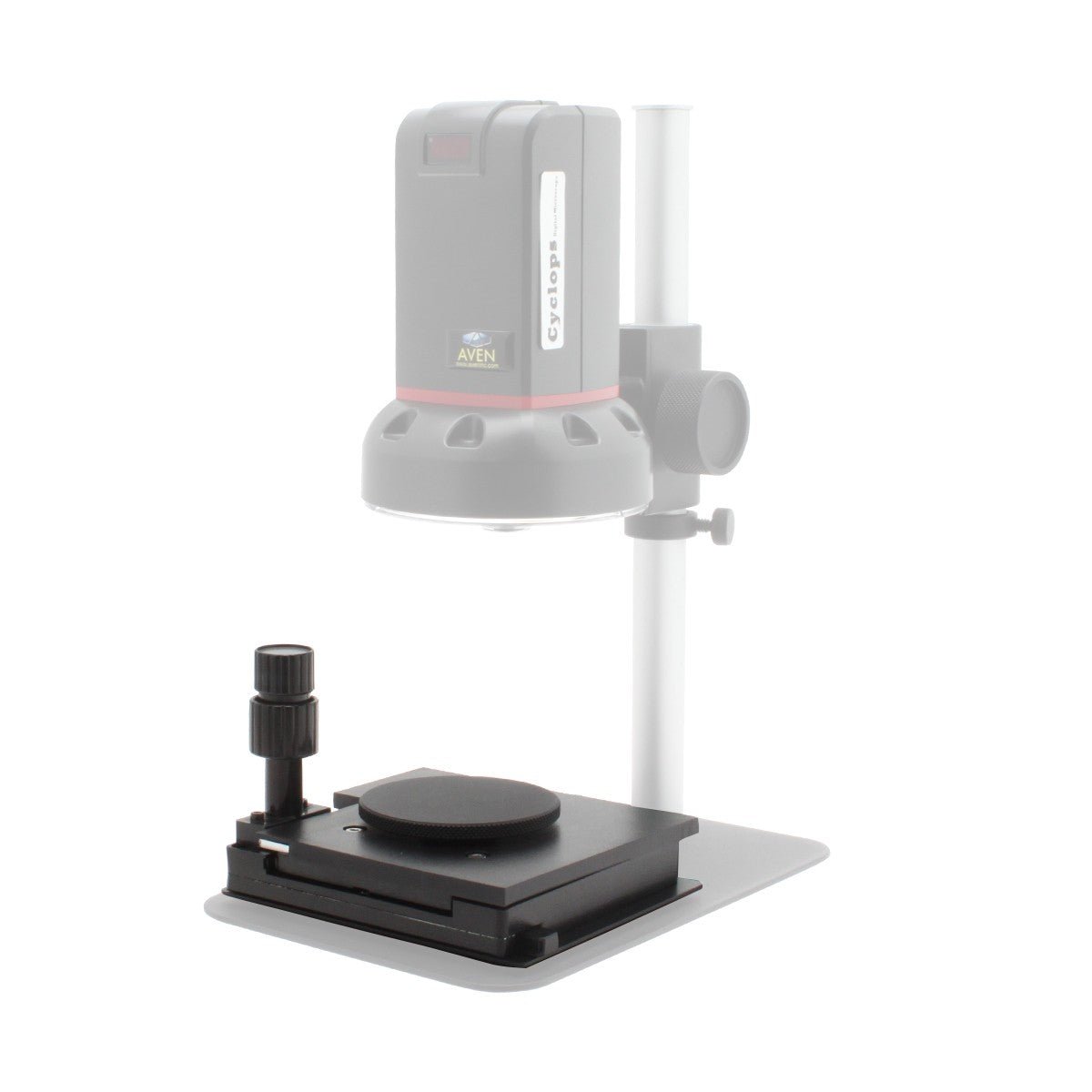

The compact nature of this gliding stage makes it easy to add to any stereo microscope or digital microscope system that requires ultra-smooth scanning and rotation.
Smooth vertical and horizontal movement
Built-in rotating stage
Compact design
Metal rack and pinion construction
Designed to be used with optical and digital microscope systems
Compact Gliding Stage X/Y/R | |
---|---|
Base Size | 135 x 120 x 93mm (5.3 x 4.7 x 3.6 inch) |
Rotating Stage Diameter | Ø73mm (Ø2.87 inch) |
Movement | 70mm/30mm/360 Degrees (X/Y/R) |
Material of Rotation | Aluminum alloys |
Material of Base | Plastic |
Weight | 1.76 lb |
