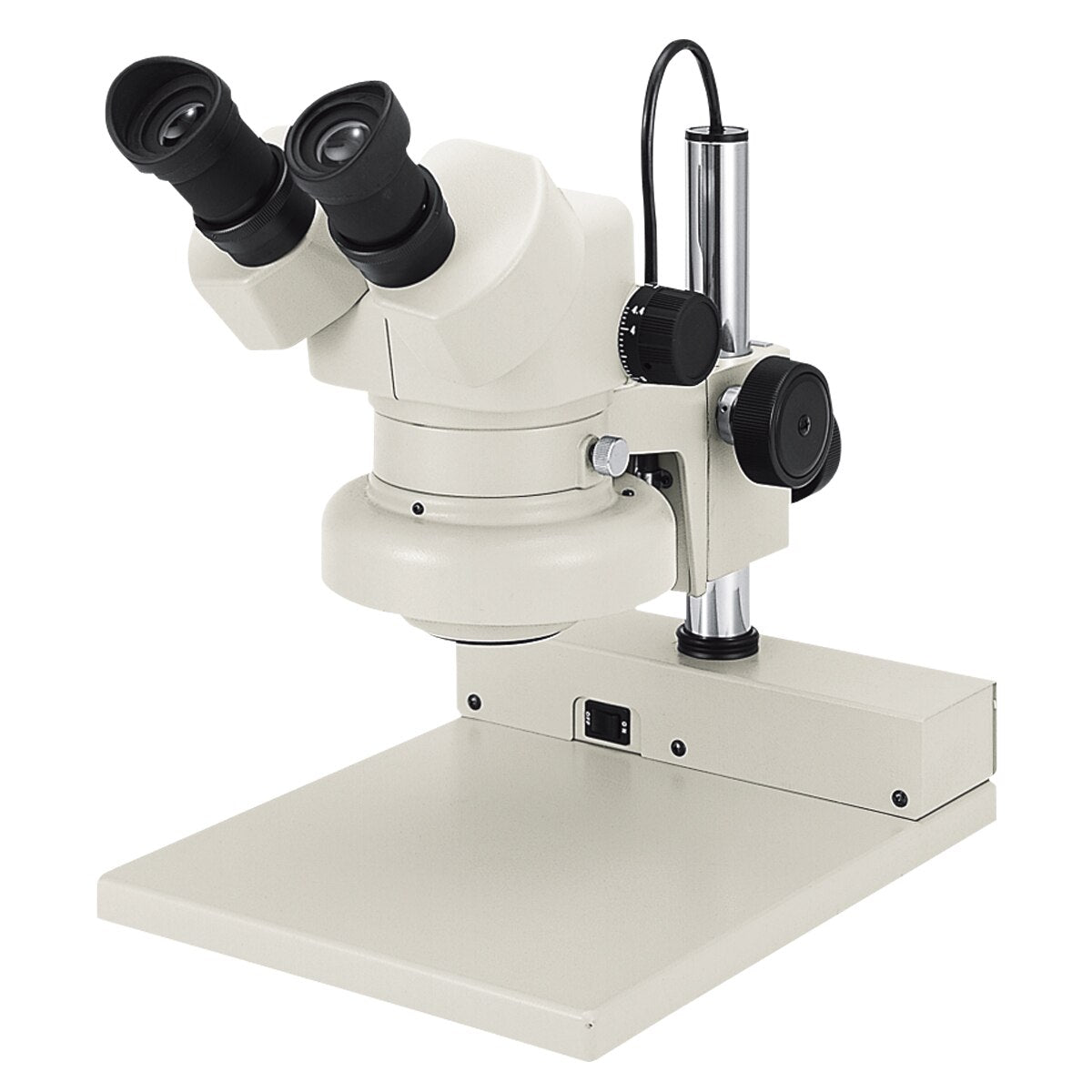

Aven Tools 26800B-302 DSZ-44 Stereo Zoom Binocular Microscope on Stand PLED

Aven Tools 26800B-302 DSZ-44 Stereo Zoom Binocular Microscope, 10x–44x, on PLED Stand

DSZ-44 Stereo Zoom Binocular Inspection Microscope on Pole Stand with Built-In LED – Item Number 26800B-302

The Aven Tools 26800B-302 DSZ-44 is a premium stereo zoom binocular microscope featuring a magnification range of 10x–44x (extendable to 2.5x–140.8x with optional lenses). Uni-body construction with multi-coated optical components delivers excellent contrast and edge-to-edge definition of 3D images. Mounted on Aven’s PLED pole stand with 60 built-in eco-friendly LEDs, dimmer control, and coarse and fine focus adjustment. 45° inclined 10x wide-field eyepieces (FN 23) with diopter adjustment on both tubes and adjustable interpupillary distance (52–75mm). Compact footprint ideal for high-volume inspection stations, R&D labs, and limited bench space.

• Magnification: 10x–44x | Up to 140.8x with optional lenses
• Zoom ratio: 4.4:1 | Objective lens: 1.0x–4.4x
• Field of view: 23–5.2mm | Working distance: 90mm (3.54")

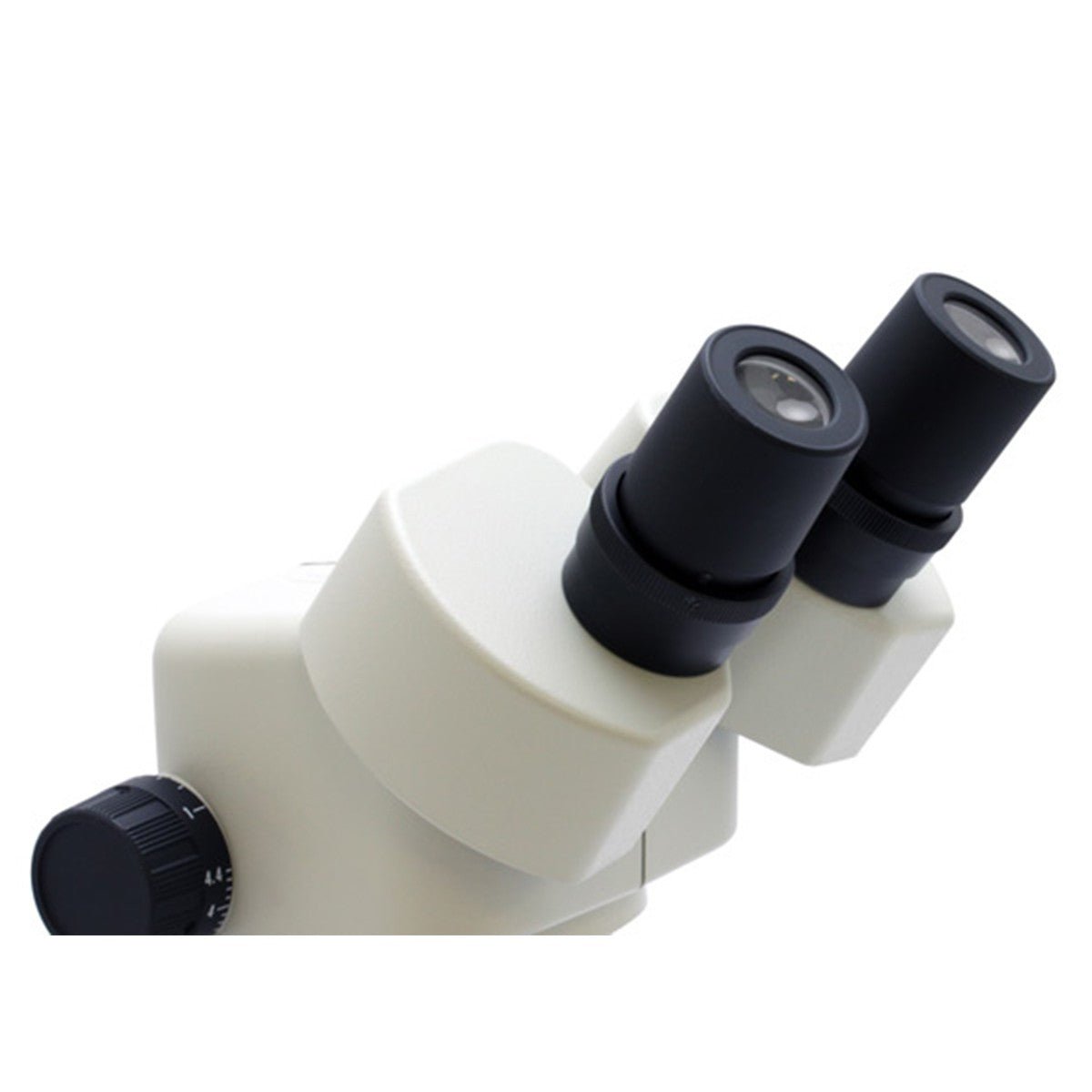

• 10x wide-field eyepieces (FN 23), 45° inclined — comfortable for eyeglass wearers
• Diopter adjustment on both eyepiece tubes
• Interpupillary distance: 52–75mm
• Optical system: Greenough

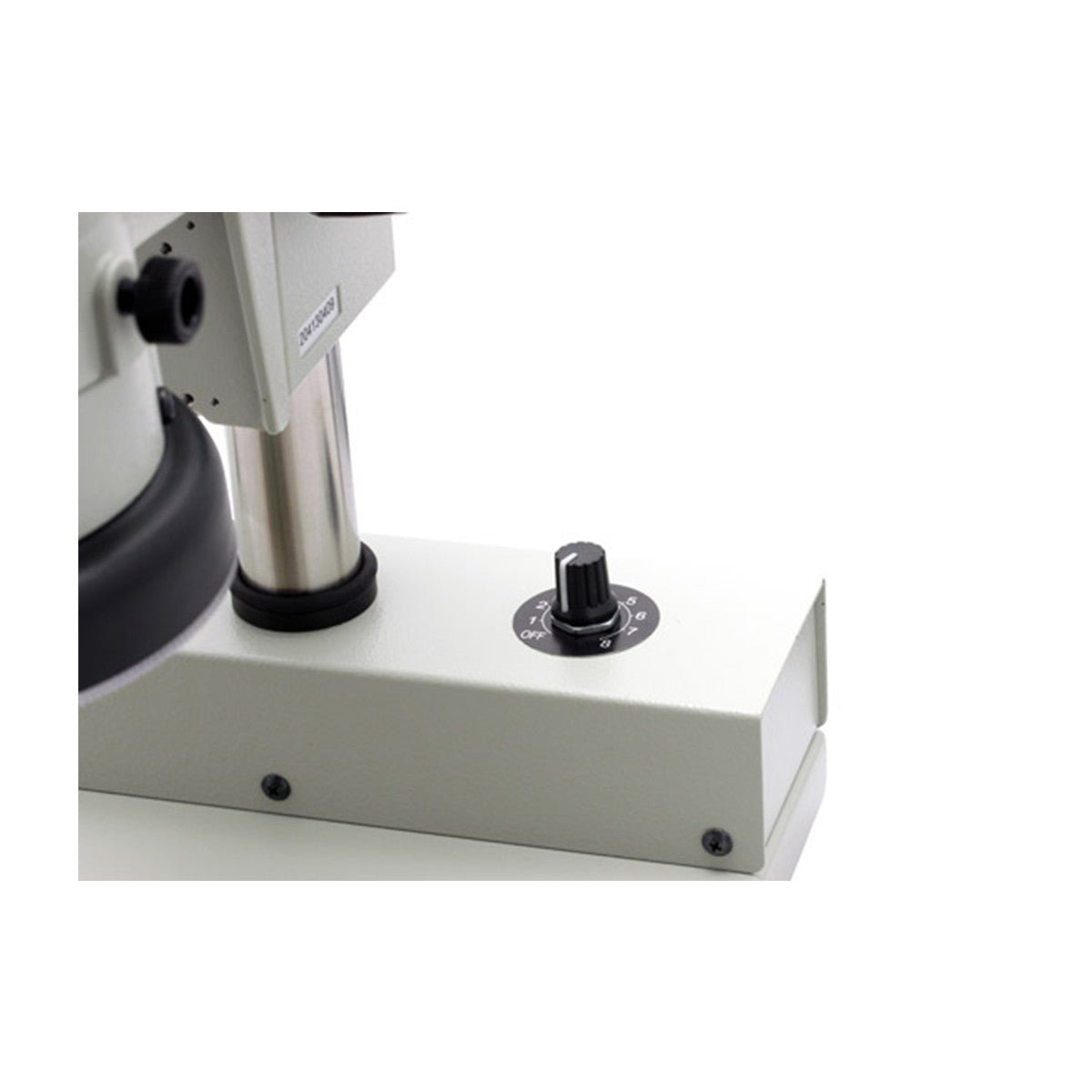

• PLED pole stand — 60 eco-friendly LEDs with dimmer control
• Coarse and fine focus adjustment, rack-and-pinion focus mount (74mm diameter)
• Large base: 220×284mm | Pole height: 250mm (9.84")
• Includes dust cover, rubber eye guards, tension control pin
