26700-151 , Aven Tools , Micro Lens System Zoom 640

Aven Tools SKU: 26700-151
26700-151 , Aven Tools , Micro Lens System Zoom 640
26700-151 , Aven Tools , Micro Lens System Zoom 640

26700-151 , Aven Tools , Micro Lens System Zoom 640

Aven Tools SKU: 26700-151
Regular price $640.00
/
Shipping calculated at checkout.

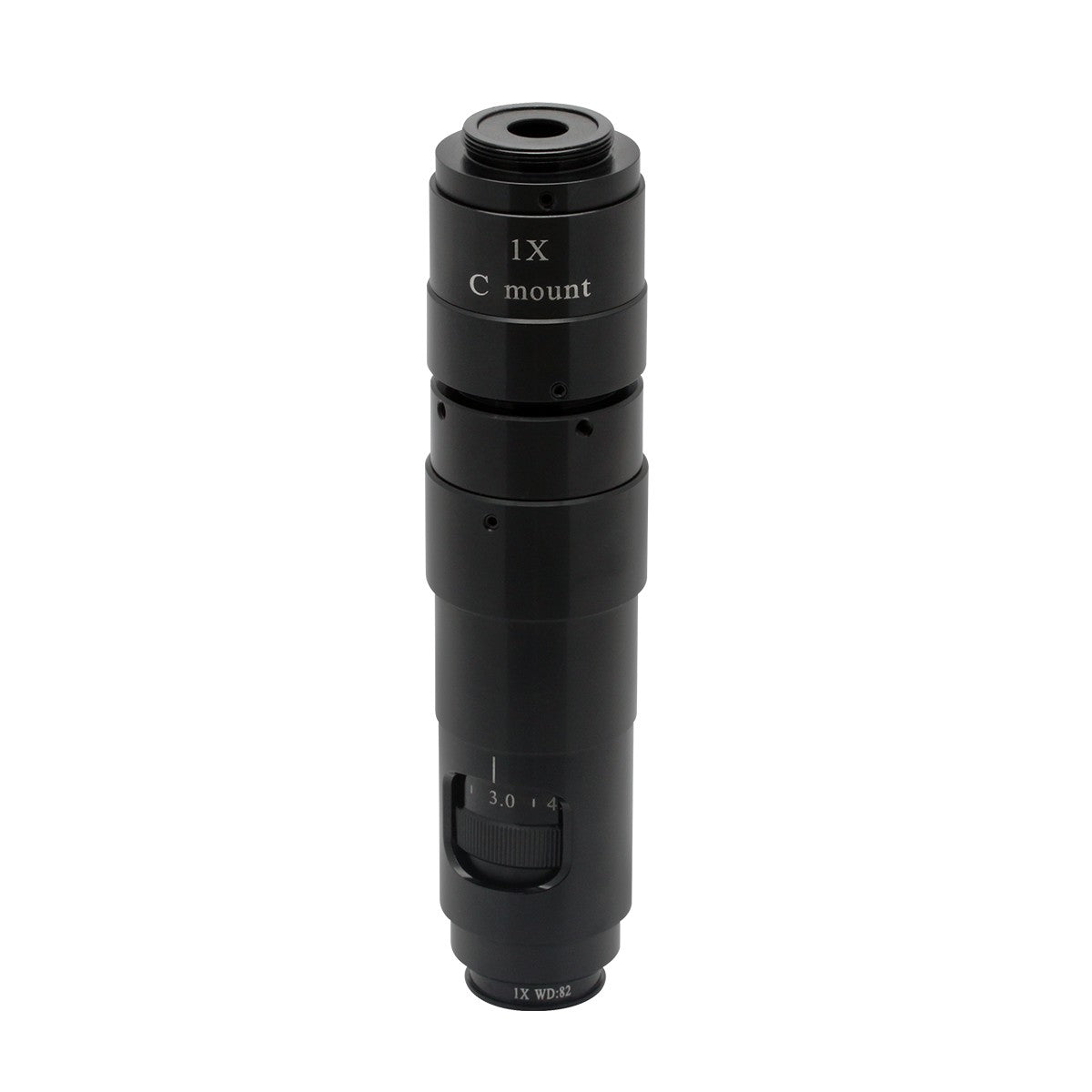

Aven Micro Lens System produces crisp and clear images that are distortion free and void of chromatic aberration. This lens system comes with detents which allows you to calibrate the lens for measurement repeatability. Comes standard with 1x C mount coupler and 1x objective lens. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. Working Distance is 82mm. Additional couplers and objective lenses are available to help you configure a lens system to meet your application. See optical specification chart for more details.

Features

  • Infinity Optical Design for large depth of field and zoom ratio
  • Parfocal throughout zoom range
  • Compact design
  • High contrast images and vivid colors

Specs

Micro Lens System Zoom 640

Zoom Range 0.6x to 4.0x
Zoom Ratio 6.7:1
No. Detents 7
Field of View 6 x 8mm at low mag 0.9 x 1.2mm at high mag
Magnification Optical: 0.6x to 4.0x
Working Distance 82mm (w/1x Objective & 1x Coupler)

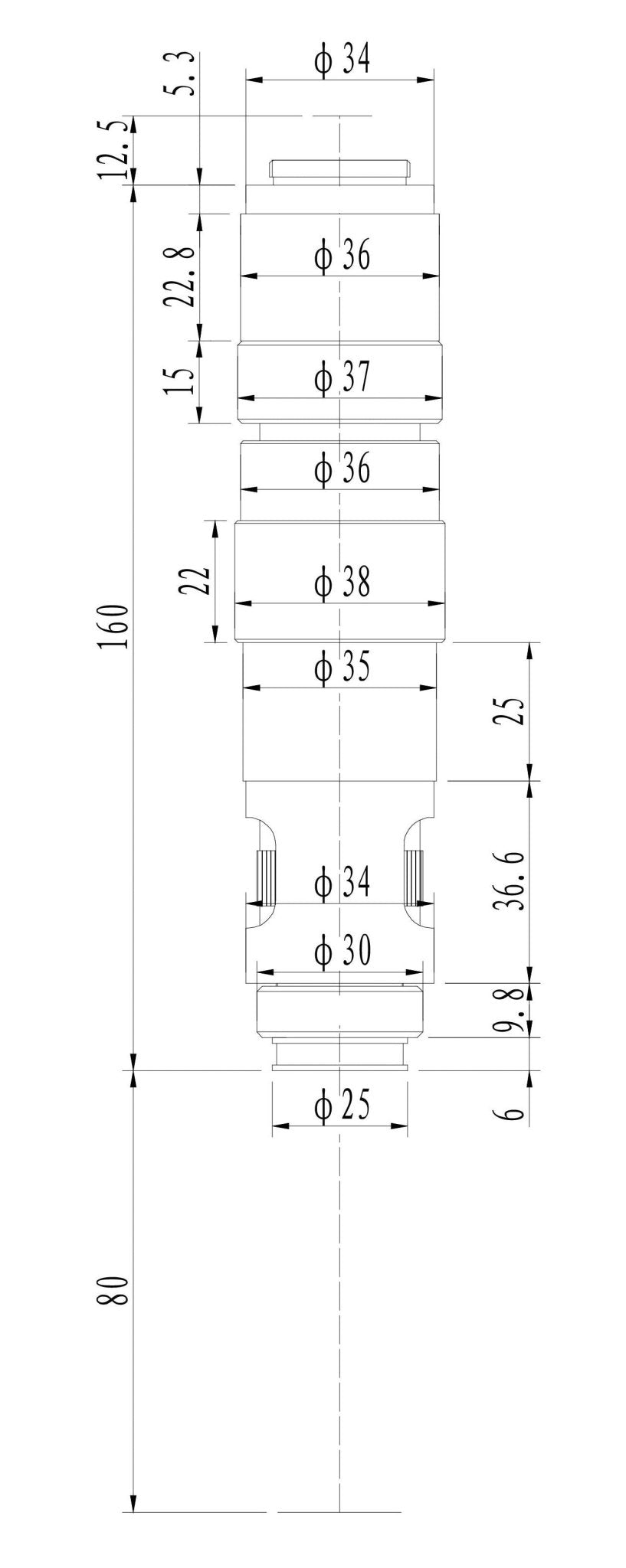

Height 160mm
Diameter 0.38mm
Weight 453g (1 lb)
Package Contents 0.6x to 4.0x Zoom Body with 1X C-Mount Coupler and 1X Objective Lens
