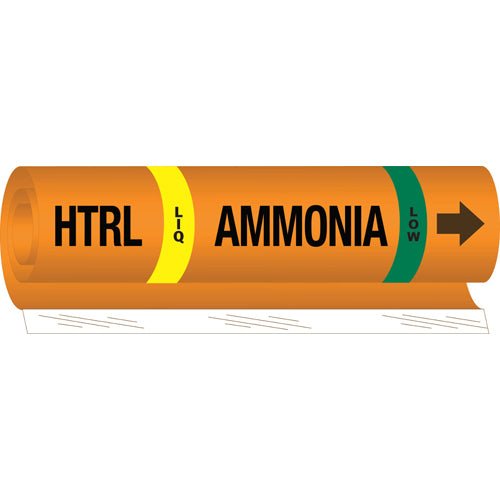

Brady 145791 IIAR Pipe Markers - HTLR LIQ Ammonia Low, Orange, 1.5 - 2.375 in

Brady SKU: 145791
Price
Regular price $15.59
Regular price Sale price $15.59
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

Brady 145791 IIAR Pipe Markers - HTLR LIQ Ammonia High, Orange, 1.5 - 2.375 in

Product Highlights:

  • Pipe Marker Mounting Style: Wrap Around

  • IIAR Legend: AMMONIA

  • IIAR Phase: LIQ

  • IIAR Pressure Level: LOW

  • IIAR System Abbreviation: HTRL

  • Color: Black, Green, Yellow on Orange

Overview

Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.

  • IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
  • Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.
  • B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
  • Pipe marker includes directional arrows

Pipe Color Code Chart - ANSI/ASME A13.1

Label Color Text Color Color Pipe Contents
Red White Fire-quenching fluids
Orange Black Toxic and corrosive fluids
Yellow Black Flammable and oxidizing fluids
Brown White Combustible fluids
Green White Potable, cooling, boiler feed and other water
Blue White Compressed air
Purple
Gray
Black
White Defined by user
White Black Defined by user
