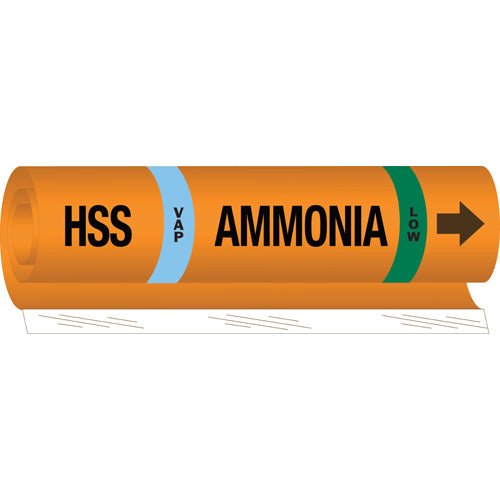

Brady 145774 IIAR Pipe Markers - HSS VAP Ammonia Low, Orange, 1.5 - 2.375 in
Brady
SKU: 145774
Regular price
$15.59
$15.59
Regular price
Sale price
$15.59
$15.59
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Brady 145774 IIAR Pipe Markers - HSS VAP Ammonia Low, Orange, 1.5 - 2.375 in
Product Highlights:
-
IIAR Legend: AMMONIA
-
IIAR Phase: VAP
-
IIAR Pressure Level: LOW
-
IIAR System Abbreviation: HSS
-
Pipe Marker Mounting Style: Wrap Around
-
Color: Black, Blue, Green on Orange
Overview
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Pipe Color Code Chart - ANSI/ASME A13.1
Label Color | Text Color | Color | Pipe Contents |
---|---|---|---|
Red | White | Fire-quenching fluids | |
Orange | Black | Toxic and corrosive fluids | |
Yellow | Black | Flammable and oxidizing fluids | |
Brown | White | Combustible fluids | |
Green | White | Potable, cooling, boiler feed and other water | |
Blue | White | Compressed air | |
Purple Gray Black |
White | ![]() |
Defined by user |
White | Black | Defined by user |
