Hakko C5016 Bottom Heater

Hakko C5016 Bottom Heater

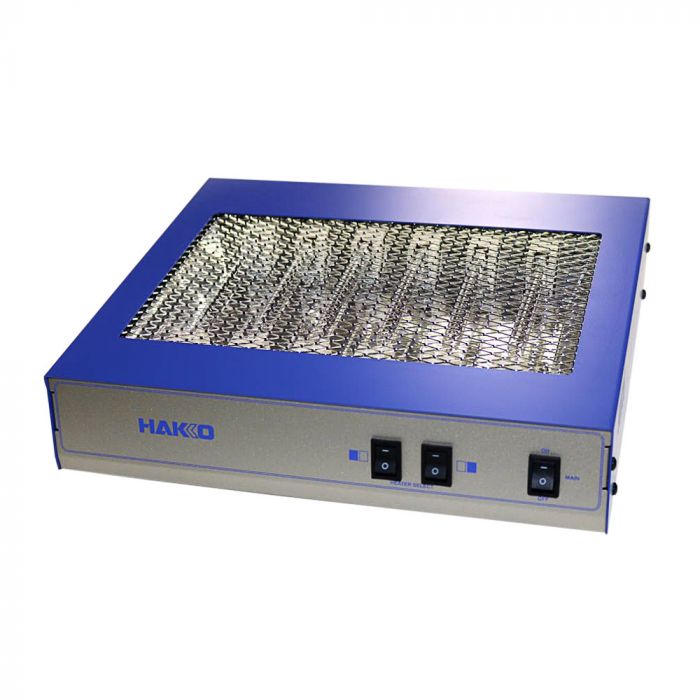

The HAKKO C5016 bottom heater integrates and is fully controlled by the HAKKO FR-811 SMD hot air rework system with the execution of the user programmable rework profiles that are stored on the HAKKO FR-811.

The heater can be operated in power or thermocouple mode, including the ability to monitor/control the ramp rate of the assembly.

NOTE: The HAKKO C5016 must be used with the FR-811. It will not work on its own or with any other units.

SPECIFICATIONS

Part Number	C5016
Input Voltage	120 VAC 50/60 Hz
Power Consumption	730W
Effective Heater Area	7.5 x 3.2 in. (190 x 80 mm)
Board Capacity	9.8 x 5.5 in. (248 x 140 mm)
Heating Zones	2
Operating Modes	Power / Thermocouple
T/C Range	122-482°F (50-250°C)
T/C Stability	±9°F / ±5°C
Power Range	1 - 100% (1% increments)
Heater Control	Requires FR-811
Heater Type	High Efficiency Carbon Filament
Heater Lamp MTBF	~ 2100 hours
External Connections†	4-pin DIN for FR-811 ONLY
Dimensions (W x H x D)	11.6 x 2.6 x 9.7 in. 295 x 66 x 246 mm
Weight	4.6 lb. (2.1 kg)
ESD Safe	Yes
Safety Certification	cMETus
Safety Approval

† Unit is completely controlled by the HAKKO FR-811 SMD Rework System. Requires connecting cable (included)
