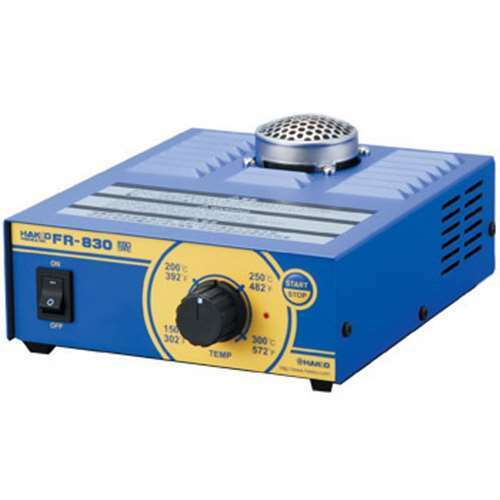

Hakko FR830-02 ESD-Safe Compact Preheater Station

The Hakko FR-830 is a compact solution to preheating printed circuit boards. The design of the FR-830 delivers consistent heat to the bottom of printed circuit boards and is particularly beneficial when soldering lead-free assemblies.

Hakko FR830-02 Features:

• ESD-Safe
• Integrated self-resetting overheat protection, high pressure fan, and convex outlet reduces heat buildup and prevents blockage of the outlet
• Closed loop temperature control allows the output air temperature to be set anywhere between 150° - 300°C (302°F - 572°F)
• Fast heating
• Excellent thermal stability

Specifications

Model Name	FR-830
Part No.	FR830-02
Power Consumption	470W / 120VAC
Hot Air Temperature	150°C - 300°C (302°F - 572°F)
Air Flow	0.15 cu.m/min (6.35 cu.ft/min)
Outer Dimensions	140(w) x 75(h) x 185(d) mm 5.5(w) x 3.0(h) x 7.3(d) in.
Weight (w/o cord)	750g (1.6 lbs)
Safety Approval
