Aven Tools 26800B-373-3 SPZV-50 Trinocular Microscope with Eidos 4K Camera/Monitor, Post Stand & Polarized LED Ring Light
Aven Tools 26800B-373-3 SPZV-50 Trinocular Microscope with Eidos 4K Camera/Monitor, Post Stand & Polarized LED Ring Light

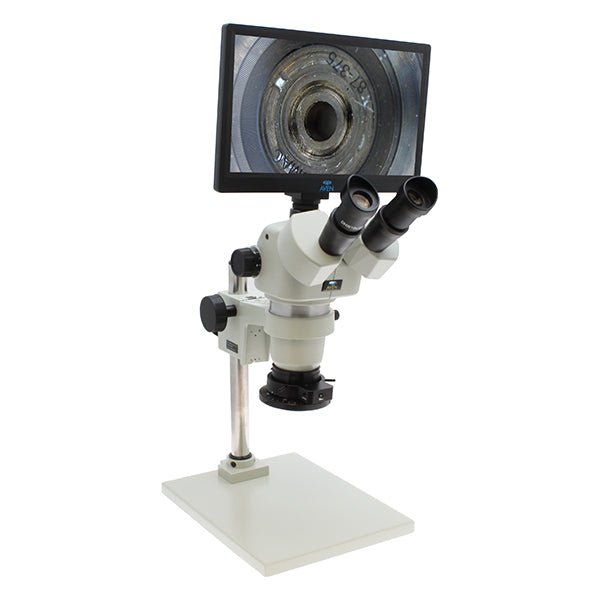

The Aven 26800B-373-3 combines an SPZV-50 true trinocular stereo zoom microscope with a Mighty Cam Eidos 4K camera and integrated 11.6-inch IPS display, post stand and separate 120-LED ring light with adjustable polarizer. Inspect through the eyepieces at 6.7x–50x optical magnification or use the camera's on-screen view, listed by Aven as 19x–143x on the included monitor. Built-in measurement, annotation and image/video capture operate without a PC.
For reflective parts, adjust the polarizer to reduce glare that hides surface detail. View a feature through the optical eyepieces and camera simultaneously, then capture or annotate the image for inspection records. HDMI output supports an external display when shared viewing is needed.
Best Uses / Applications
- Inspection of shiny or reflective electronics, polished metals and medical components.
- Quality-control image documentation and annotated inspection records.
- Research and development inspection requiring optical and digital viewing.
- On-screen dimensional measurements after calibration for the optical configuration.
- PC-free image/video capture at a compact post-stand workstation.
- Shared inspection using the integrated monitor or HDMI-connected external display.
Key Features
- SPZV-50 true trinocular stereo zoom body with simultaneous optical and camera viewing.
- 6.7x–50x optical magnification with 10x FN23 widefield eyepieces.
- 7.46:1 zoom ratio, click-stop zoom and adjustable C-mount camera adapter.
- 108 mm working distance in the included optical configuration.
- Eidos 4K live imaging at 3840 × 2160 pixels and 30 FPS.
- Integrated 11.6-inch IPS monitor and 8.29MP photographs.
- Separate 120-white-LED ring light with adjustable polarizer for glare reduction.
- Built-in calibration, measurement, annotation and capture tools.
- HDMI output, USB storage and MicroSD capture.
Microscope & Lighting Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-3 |
|---|---|
| Microscope Body | SPZV-50 true trinocular stereo zoom |
| Included Optical Magnification | 6.7x–50x with 10x eyepieces |
| Published Monitor Magnification | 19x–143x on included display |
| Optical System / Zoom Ratio | Greenough / 7.46:1 |
| Eyepieces | 10x FN23; diopter adjustment on both tubes |
| Working Distance | 108 mm in feature copy; 41–240 mm table range relates to alternate optical configurations and is not the fixed included distance |
| Stand / Focus Mount | 26800B-570 pole stand / 26800B-517 focus mount |
| Ring Light | 26200B-222, 120 white LEDs with adjustable polarizer |
| Ring-Light Adapter | 26800B-460 |
| Ring-Light Input | DC 24 V / 500 mA |
| Listed Ring-Light Environment | 0–40°C; 20–80% RH |
| Published LED Life | 20,000 hours |
Source clarifications: The manufacturer title combines optical and monitor magnification. These are separated above to avoid describing 143x as the eyepiece range. The supplied table contains visibly corrupted ring-light dimension and interpupillary-distance entries; they are omitted rather than guessed. Feature copy gives a field of view of 34.3–3.6 mm, but confirm the applicable field of view if critical to your inspection setup. No complete-system ESD-safe rating is established by the supplied screenshots.
Eidos 4K Camera & Monitor Specifications
| Camera/Monitor Model | 26100-261 Mighty Cam Eidos 4K |
|---|---|
| Display | 11.6-inch IPS screen |
| Imaging Sensor | 1/1.8-inch CMOS |
| Live Image | 3840 × 2160 pixels at 30 FPS |
| Photographs | 8.29MP |
| Video Recording | 1920 × 1080 or 3840 × 2160 pixels |
| Output | HDMI |
| Listed Input Ports | Two USB 2.0 ports; overview also describes USB-C data transfer |
| Storage | USB storage and MicroSD card |
| Control | Mouse-operated on-screen display |
| Image Controls | Exposure, white balance, gain, gamma, brightness, contrast, hue, saturation and grayscale |
| Other Functions | Horizontal/vertical flip, freeze, scale rulers and grid overlays; overview also lists mirror and compare modes |
| Listed Camera Power Supply | 100–240 VAC, 50–60 Hz input; DC 12 V / 2 A output |
Measurement & Documentation
The Eidos software includes line, parallel-line, broken-line, angle, diameter, radius, circle, three-point circle, circle-to-line distance, concentric/double-circle, polygon and arc measurements. Marking, screenshots, table-data export and calibration functions support inspection records. Calibrate for the current optical setup and verify calibration when changing optics or zoom; no measurement-accuracy tolerance is established by the supplied source.
Polarized Illumination vs. Standard Illumination
| Selection Factor | This Adjustable Polarizer Ring | Non-Polarized Ring |
|---|---|---|
| Reflective Parts | Adjust polarization to reduce obscuring glare | No polarization adjustment |
| Inspection Goal | Reveal surface detail otherwise washed out by reflections | General illumination |
| Mounting | Separate ring light with included adapter | Varies by light model |
Glare reduction depends on the surface and polarizer adjustment; it is not a guarantee of eliminating every reflection.
Package Contents
- SPZV-50 stereo zoom trinocular microscope.
- 26200B-222 LED ring light with adjustable polarizer.
- 26800B-460 ring-light adapter.
- 26800B-570 pole stand.
- 26100-261 Mighty Cam Eidos 4K camera/monitor.
- 26800B-517 focus mount.
The Eidos component package lists a power supply, HDMI-to-mini-HDMI cable, wireless mouse, 16 GB MicroSD card, USB-C-to-USB-A MicroSD card reader, USB-C-to-USB-A adapter for the wireless mouse transmitter and USB-A wireless mouse transmitter. A separate external monitor and PC are not listed as included.
Frequently Asked Questions
Does it need a computer?
No. The integrated camera/monitor supports live viewing, measurement, annotation and capture without a PC.
What is the optical magnification?
6.7x–50x through the supplied 10x eyepieces. The separately listed 19x–143x range applies to the monitor view.
Is the camera 4K?
Yes. Aven specifies 3840 × 2160 live imaging at 30 FPS and 8.29MP photographs.
Can I view through the eyepieces while using the camera?
Yes. Aven describes simultaneous eyepiece and camera viewing.
How many LEDs are in the ring light?
This configuration lists 120 white LEDs with an adjustable polarizer.
Is the light integrated into the focus mount?
No. The component list identifies a separate ring light, adapter and focus mount.
Can I connect another display?
Yes. HDMI output supports an external monitor or compatible projector.
Can images be saved without a PC?
Yes. Aven lists MicroSD capture and USB storage; the camera package includes a 16 GB MicroSD card.
Do measurements require calibration?
Yes. Calibrate for the optical configuration and zoom before using dimensional results.
