Transforming Technologies CS1090, ESD Universal Snap Kit, 10mm, Pack of 10

Transforming Technologies CS1090, ESD Universal Snap Kit, 10mm, Pack of 10

• Universal snap kit easily installs a ground snap into a range of mat thicknesses
• User installable with a screwdriver
• Installs a 10 mm snap or stud to ESD workstation materials
• Includes 2 screws for thick and thin materials

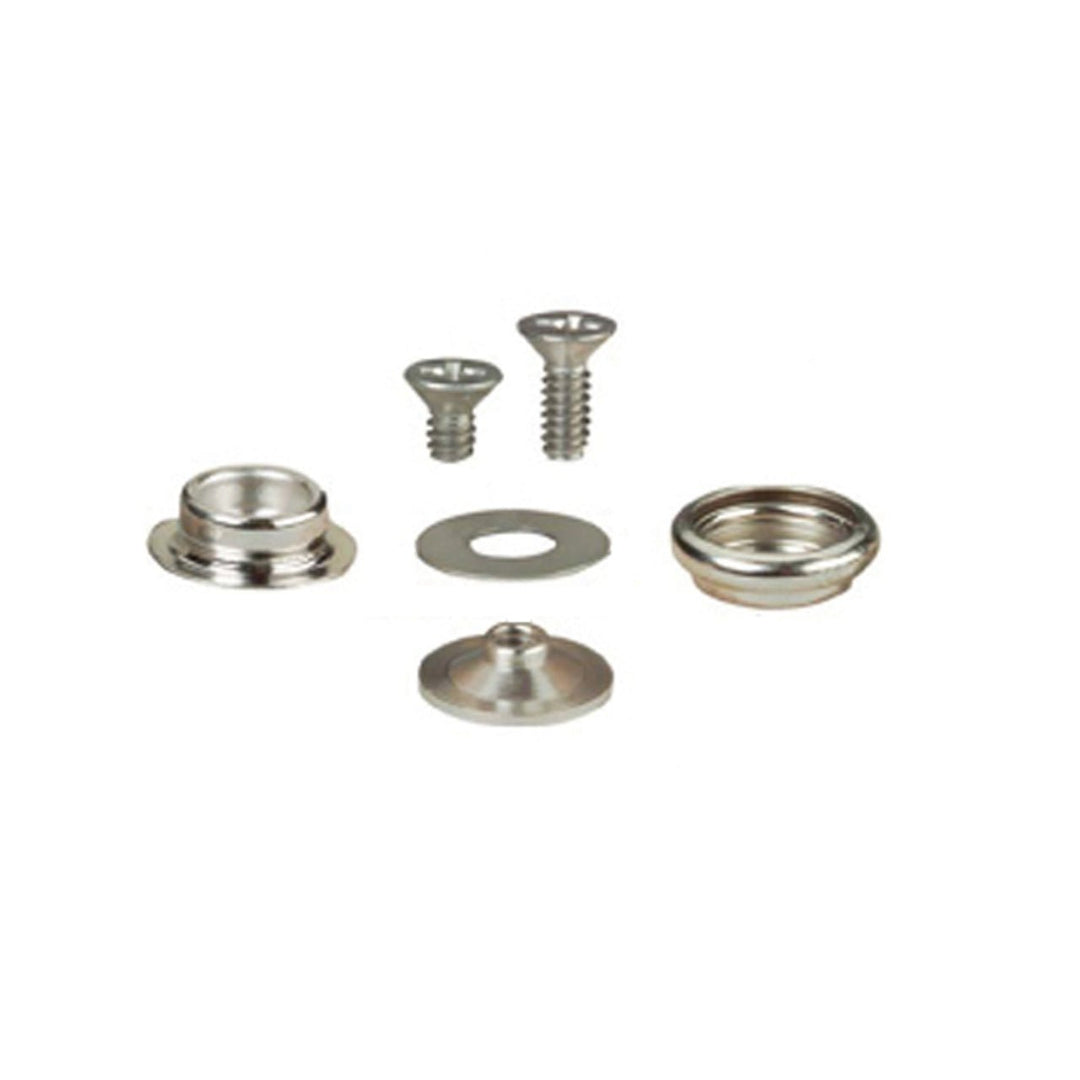

• 1 each: 10 mm socket, 10 mm stud, washer and screw base

Instructions

1. Determine the position of the grounding snap (one only per mat) and type of fastener you will be installing (socket or stud).
2. Punch a hole through the material with a small Phillips screwdriver or awl.
3. Select one of the screws as follows: Material less than 0.100″ thick – short screw. Material greater than 0.100″ thick – long screw
4. Insert the screw through the top on the snap stud or socket, the washer, and the material. Affix the assembly with the conical nut supplied with the kit and tighten down the screw using a Phillips screwdriver.
5. Remaining will be either a 10mm stud or socket, and either a long or short screw to be discarded or saved for another application.
