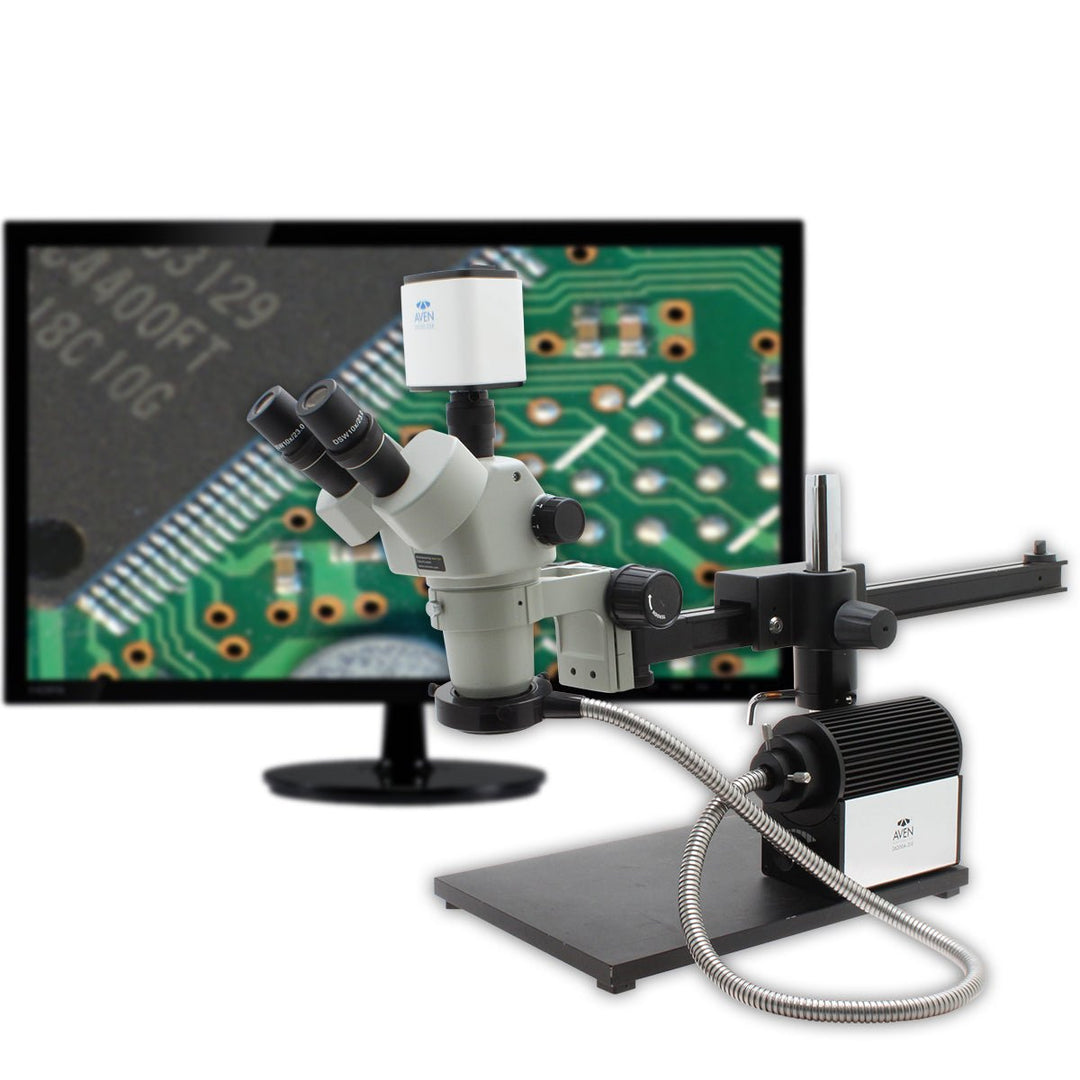

Aven Tools 26800B-373-13-PRO SPZHT-135 Trinocular Microscope, 21x–135x, with Mighty Cam Pro, Ultra-Glide Stand & Fiber Optic Light
Aven Tools 26800B-373-13-PRO SPZHT-135 Trinocular Microscope, 21x–135x, with Mighty Cam Pro, Ultra-Glide Stand & Fiber Optic Light
The Aven 26800B-373-13-PRO combines an SPZHT-135 trinocular stereo zoom microscope with a Mighty Cam Pro autofocus camera, Ultra-Glide boom stand, E-Arm focus mount, fiber-optic ring illumination and separate 22-inch Full HD monitor. The included 15x eyepieces provide 21x–135x optical magnification; Aven separately lists 71x–459x on-screen magnification. Use the camera directly over HDMI for live inspection, built-in measurements and SD-card capture without a PC, or connect over USB for advanced software functions.
Glide the microscope across the specimen, examine a feature through the eyepieces or monitor and use continuous or single-shot autofocus for camera viewing. Save the image for quality records, or use the included PC software for annotation, reporting and panoramic image stitching.
Best Uses / Applications
- Precision assembly and quality-control inspection.
- Electronics inspection with optical and monitor viewing.
- Medical-device evaluation, aerospace inspection and research/development.
- Education and shared viewing on the included 22-inch monitor.
- Image documentation and calibrated dimensional measurements.
- Scanning larger work areas using the Ultra-Glide arm.
Key Features
- SPZHT-135 trinocular stereo microscope with 21x–135x optical magnification and 84 mm working distance.
- 15x widefield eyepieces inclined at 45°, dual diopter adjustment and click-stop zoom.
- Trinocular port with one-touch fine-focus adjustment.
- Mighty Cam Pro 26100-258 continuous/single-shot autofocus and mouse-wheel focus fine tuning.
- 1080p live HDMI output at up to 60 FPS, with USB connection for PC imaging.
- Built-in calibrated measurement tools and SD-card image/video capture.
- Included PC software for measurements, annotation, image enhancement, reporting, stitching and depth-of-field fusion.
- Ultra-Glide 23-inch boom with heavy metal base.
- Separate LED fiber-optic illuminator, ring light and adapter.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-13-PRO |
|---|---|
| Microscope | SPZHT-135 trinocular stereo zoom |
| Included Optical Magnification | 21x–135x |
| Published On-Screen Magnification | 71x–459x |
| Eyepieces | 15x widefield, 45° inclined |
| Working Distance | 84 mm / 3.3 inches |
| Interpupillary Distance | 50–74 mm |
| Diopter Adjustment | Both eyepieces, +5.6D to −7.2D |
| Trinocular Port | One-touch fine-focus adjustment |
| Optical System | Greenough |
| Listed Microscope Weight | 15 lb |
The optical and on-screen magnification ranges are separate specifications. The table's maximum 180x requires optional 20x eyepieces, not the included 15x eyepieces.
Camera & Monitor Specifications
| Camera | 26100-258 Mighty Cam Pro autofocus |
|---|---|
| Manufacturer-Listed Sensor | CMOS Sony IMX586; 5.28 mm / 1/3 inch |
| Dynamic / Static Resolution | 2MP, 1920 × 1080 / 6MP, 3264 × 1836 |
| Live Frame Rate | 60 FPS HDMI; 50 FPS USB 2.0 |
| Video Recording | 30 FPS to SD card or PC |
| Exposure / White Balance | Auto/manual; exposure 0.002–10 seconds |
| Image Controls | Gamma, gain, WDR and noise reduction |
| Interfaces / Optical Port | HDMI, USB 2.0, SD card / standard C-mount |
| Listed Software | Built-in Cloud 1.0; PC Capture 2.3; Mosaic software in package list |
| PC Requirements | Windows 10/11; Intel Core i5 or better, four or more cores; 8 GB RAM or more |
| Image Formats | HDMI JPG/TIF; USB TIFF/JPG/PNG/DICOM |
| Camera Dimensions / Power | 90.7 × 78 × 70.8 mm / 2.4 W |
| Monitor | 26700-406, 22-inch LCD; 1920 × 1080 pixels; 12 V DC |
| Listed Monitor Weight | 14.6 lb |
Stand & Lighting Specifications
| Stand / Focus Mount | 26800B-556 Ultra-Glide / 26800B-518 E-Arm |
|---|---|
| Base Dimensions / Listed Weight | 15 × 10.5 inches / 35 lb |
| Vertical Post | 13.5 inches long; 37.2 mm diameter |
| Extension Post | 225 mm |
| Horizontal Arm | 23 inches |
| Mount Hole | 15.875 mm / 5/8 inch |
| Illuminator | 26200A-310; 20 W in details/table, 24 W in package list |
| Illuminator Input | 96–265 VAC, 50–60 Hz |
| Color Temperature | 5600 K |
| Published Intensity / Noise | 1600 lx / less than 30 dB; intensity test conditions not stated |
| Ambient / Working Temperature | 5–45°C / less than 53°C |
| Expected Lamp Life | 10,000 hours |
| Ring Light | 26200A-402; inner diameter 58.674 mm / 2.31 inches |
| Ring-Light Length / Adapter Diameter | 914.4 mm / 36 inches / 15.875 mm |
| Ring-Light Adapter | 26800B-460 |
Source discrepancy: Aven identifies the same illuminator part number as 20 W in its details and specification table, but 24 W in the system package list. Confirm the supplied version if power rating is critical. The lighting is a separate fiber-optic system, not an LED ring integrated into the focus mount.
HDMI Inspection vs. PC Imaging
| Workflow | HDMI Mode | PC Mode |
|---|---|---|
| Viewing | Included monitor, up to 60 FPS live | USB-connected PC, up to 50 FPS live |
| Measurements | Built-in lines, rectangles, polygons, circles, angles and point-to-line tools | Advanced measurement and annotation |
| Documentation | SD-card capture | Capture, image enhancement, reports, stitching and depth-of-field fusion |
| Computer Required | No | Yes |
Calibrate for the current optical configuration and zoom before dimensional acceptance decisions. The supplied source does not establish a measurement-accuracy tolerance.
Package Contents
- Mighty Cam Pro 26100-258.
- SPZHT-135 stereo zoom microscope with 15x eyepieces.
- 26800B-556 Ultra-Glide stand.
- 26800B-518 E-Arm focus mount.
- 26200A-310 fiber-optic illuminator.
- 26200A-402 fiber-optic ring light.
- 26800B-460 ring-light adapter.
- 26700-406 22-inch LCD HD monitor.
The camera package also lists a USB mouse, HDMI cable, power supply, SD card and Mosaic software.
Frequently Asked Questions
Does it require a PC?
No for HDMI viewing, built-in measurements and SD-card capture. A compatible PC is needed for the advanced PC software functions.
What magnification is included?
21x–135x optical with 15x eyepieces. The separately published monitor range is 71x–459x.
Is this a 4K system?
No. This bundle uses the Mighty Cam Pro 1080p autofocus camera.
Does 60 FPS apply to recording?
No. Aven lists 60 FPS live HDMI, 50 FPS live USB and 30 FPS recording.
Which autofocus modes are supported?
Continuous and single-shot autofocus, plus mouse-wheel fine tuning.
What is the working distance?
The included SPZHT-135 configuration lists 84 mm.
What stand is included?
An Ultra-Glide boom stand with a 23-inch horizontal arm and heavy metal base.
Is the illuminator 20 W or 24 W?
The supplied source conflicts. It lists 20 W in details/table and 24 W in the package list; confirm the supplied version if important to your setup.
Is it ESD-safe?
The supplied screenshots do not establish an ESD-safe rating for the complete system.
